Overview
LF Driver
Tang Band

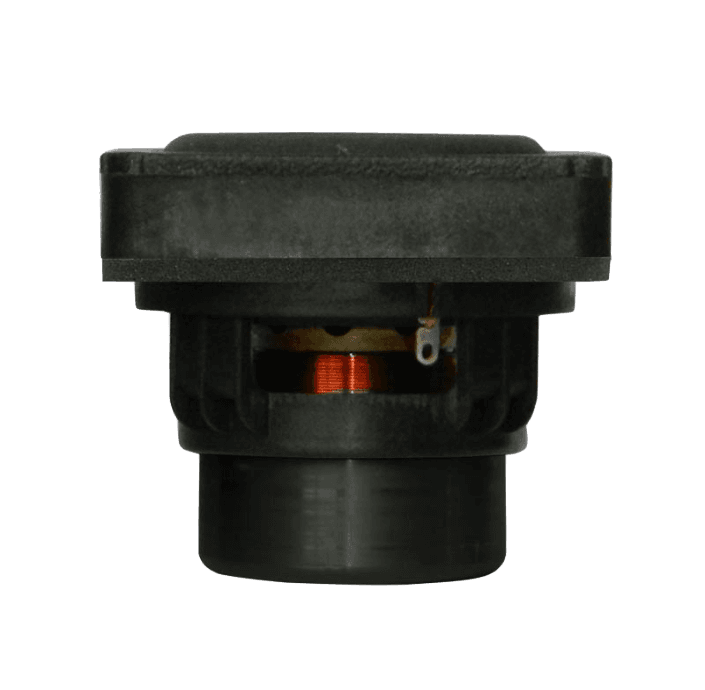

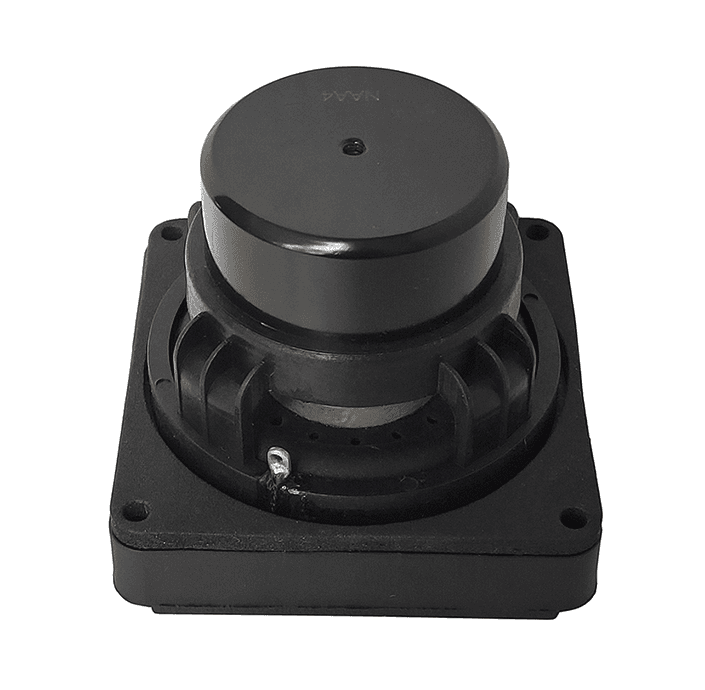

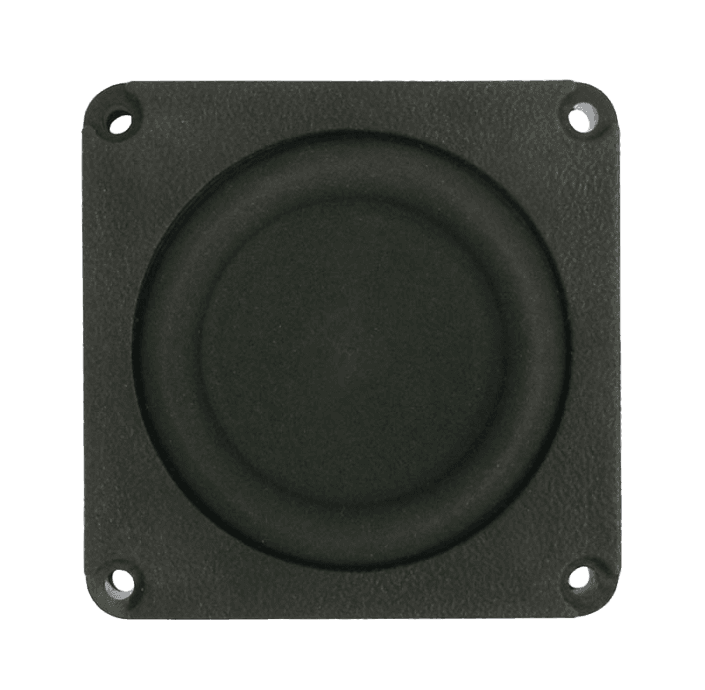

Tang Band W2-2040S
Tang Band W2-2040S is a 2" 4 ohm LF driver rated at 10W RMS. The validated T/S data includes Fs 75Hz, Qts 0.26, Vas 0.2L, Xmax 5.3mm, sensitivity 76.6dB, plus 7cm³ Vd and 268 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
4Ω
RMS Power
10W
Sensitivity
76.6dB
EBP
268
Vented alignment
Vd
7cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,208 selected pixels of 2,364 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,630 selected pixels of 2,630
T/S Parameters
Valid
Fs75Hz
Qts0.26
Qes0.28
Qms5.2
Vas0.2L
Re3.5Ω
Le0.25mH
BL6.3Tm
Sd14cm²
Mms7g
Xmax5.3mm
SPL77dB
Power10W
Impedance4Ω
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 16 Jun 2026
Source: inc VAT
£54.09
inc VAT
Out of stock
