2-inch LF driver
Kartesian WIB50_VHP 8Ω
8 Ω · 12–22000 Hz
No current price
- Fs
- 155Hz
- Xmax
- 2.5mm
- SPL
- 84dB
- Pe
- –
- BL
- 4.8T·m
- Vd
- 4cm³
- Qts
- 0.46
- Vas
- 0.17L

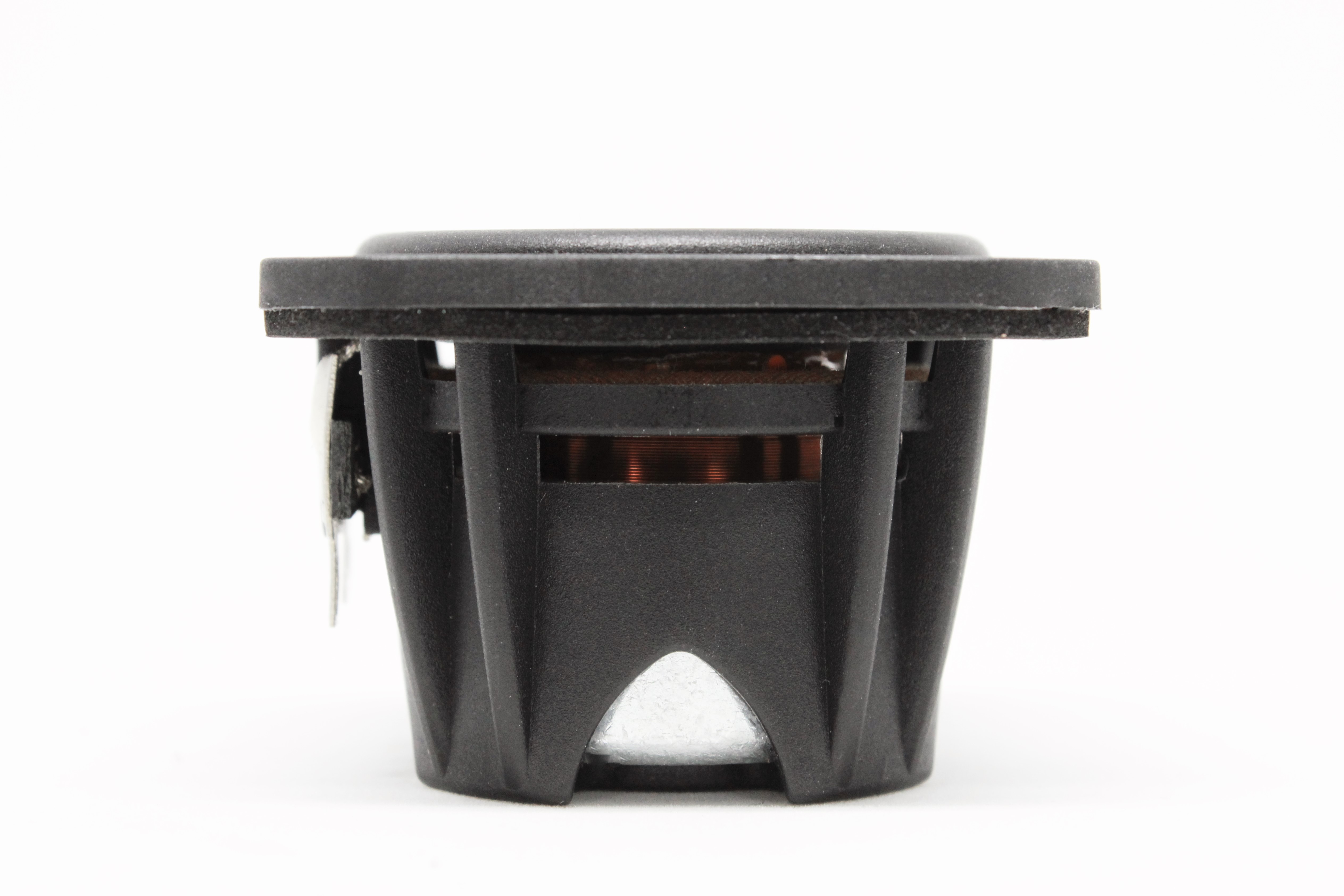

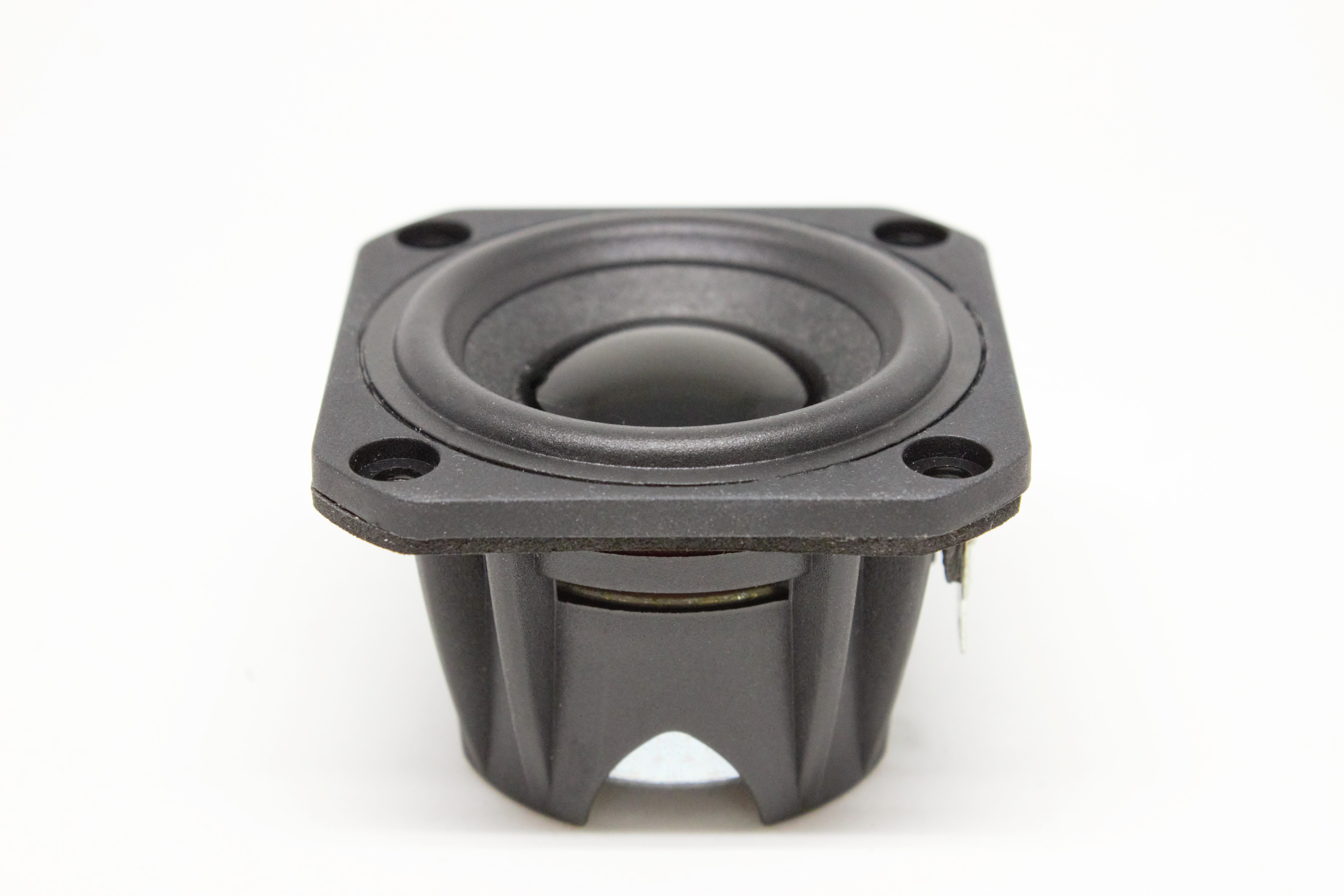

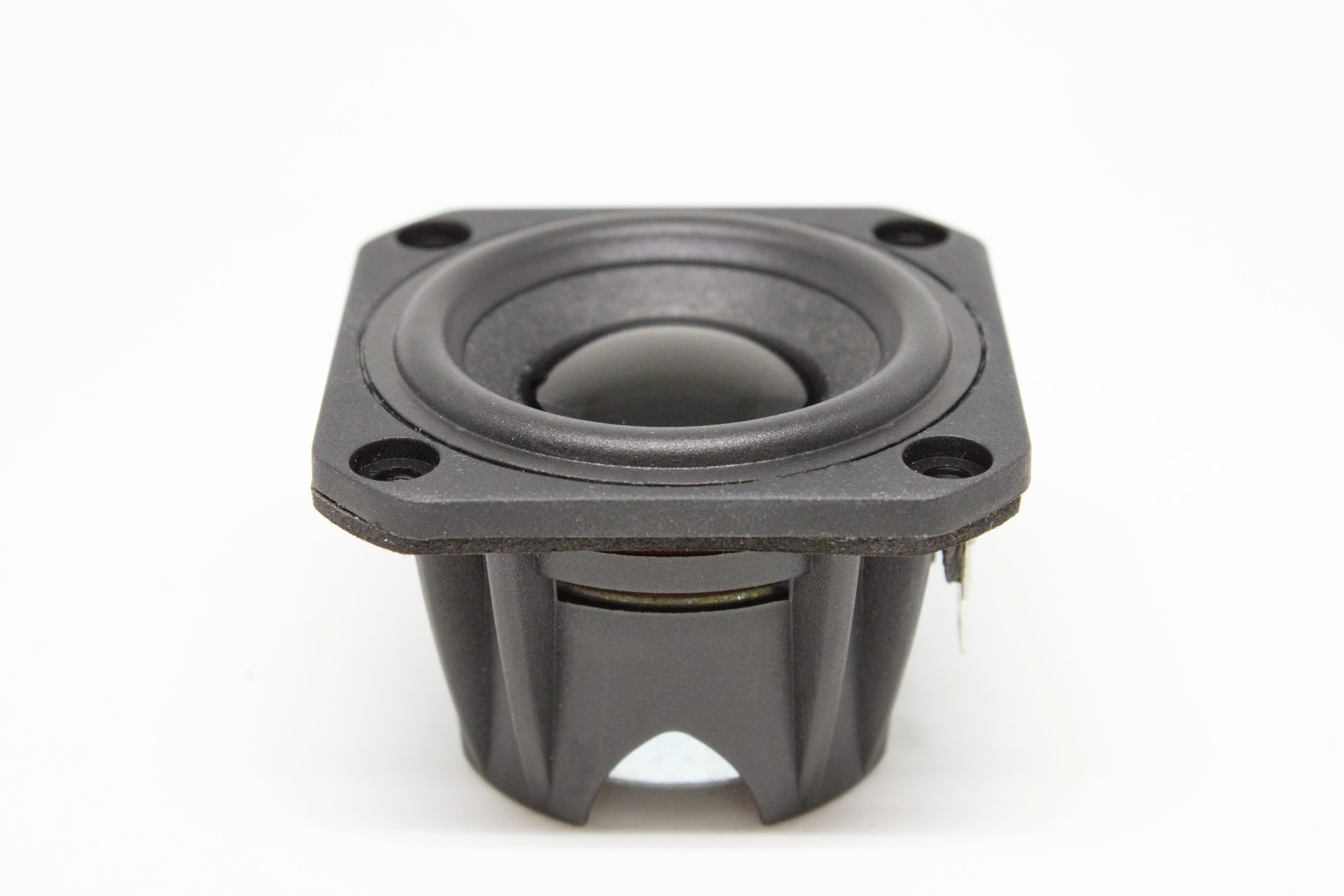

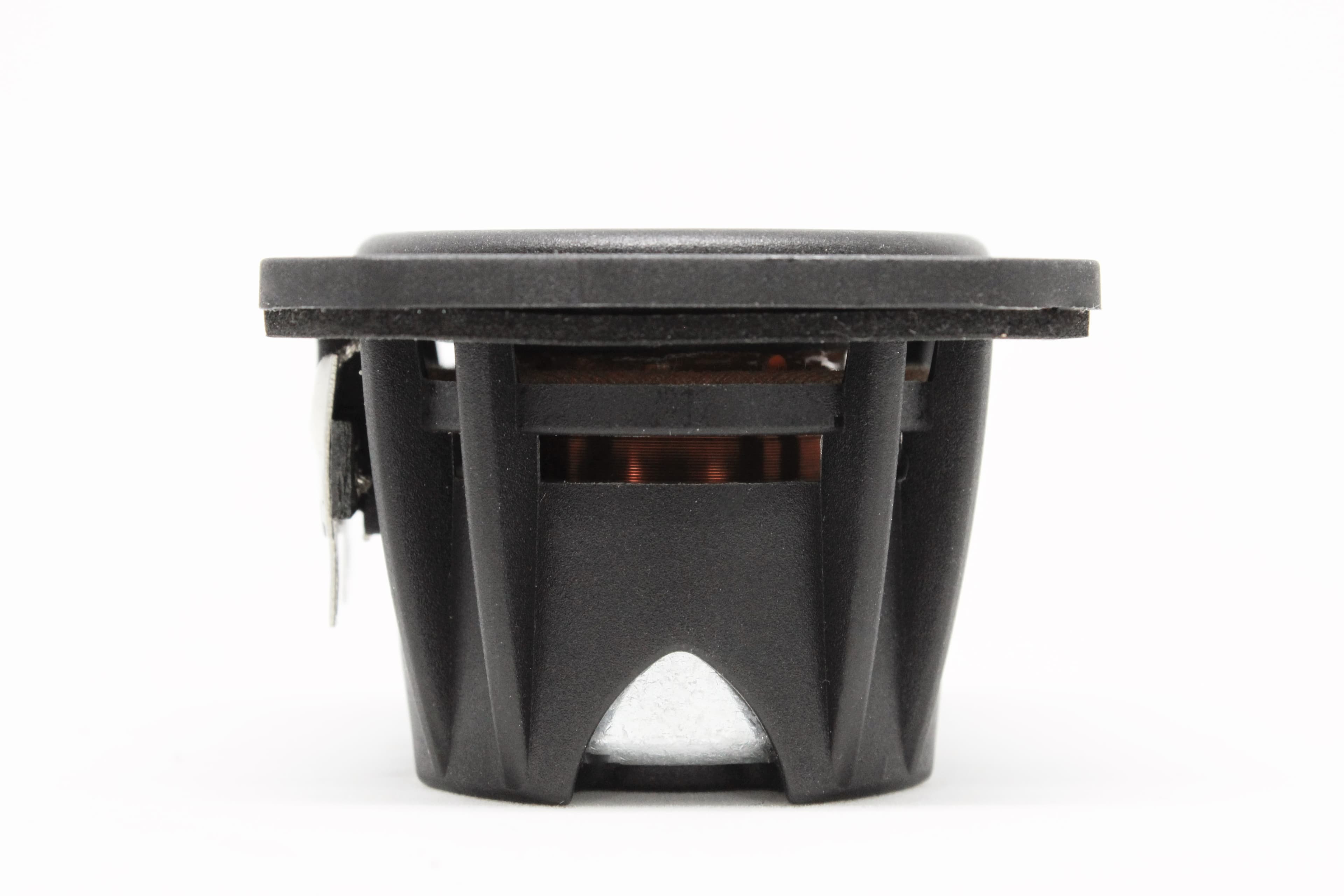

Kartesian WIB50_VHP is a 2-inch 8 ohm LF driver. The validated T/S data includes Fs 155 Hz, Qts 0.46, Vas 0.17 L, Xmax 2.5 mm, sensitivity 84 dB, plus 4 cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Qes
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
Thiele/Small
- Fs
- 155Hz
- Qts
- 0.46
- Qms
- 8
- Vas
- 0.17L
- Re
- 6.1Ω
Motor and cone
- BL
- 4.8T·m
- Sd
- 15cm²
- Mms
- 2g
- Xmax
- 2.5mm
- Vd †
- 4cm³
Power and response
- Sensitivity
- 84dB
- Impedance
- 8Ω
- Range
- 12–22000Hz
Size and mounting
- Diameter
- 50mm
† Calculated by bits from the published values
What this validation status means
Everything else Kartesian lists
LF · Primary · 1.968503937007874″
- BL
- 4.8T·m
- Fs
- 155Hz
- Re
- 6.1Ω
- Sd
- 15cm²
- Mms
- 2g
- Qms
- 8
- Qts
- 0.46
- SPL
- 84dB
- Vas
- 0.17L
- Xmax
- 2.5mm
- Impedance
- 8Ω
- Sensitivity
- 84dB
- Low limit
- 12Hz
- High limit
- 22000Hz
- Manufacturer sensitivity
- 84dB
- Diameter
- 50mm
