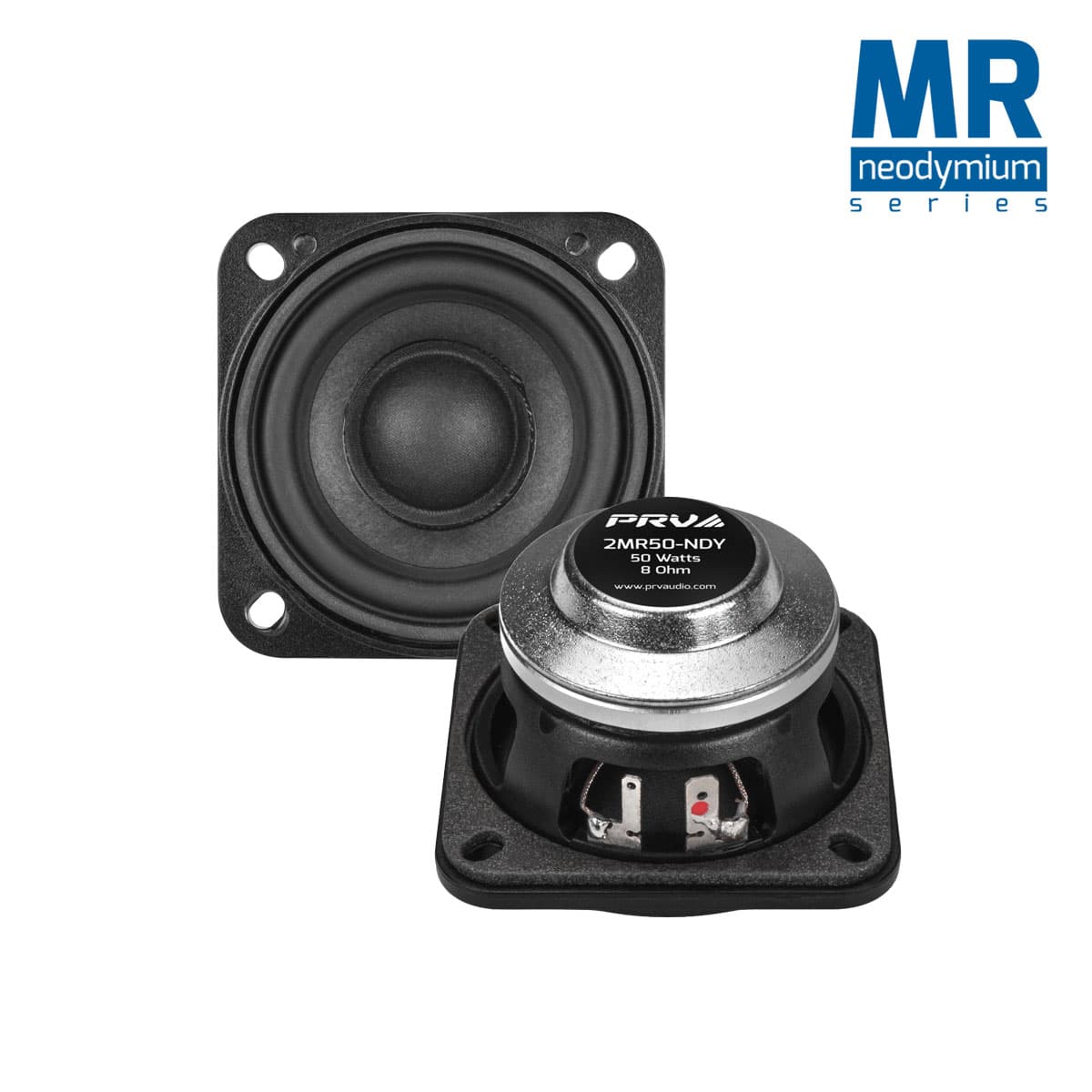

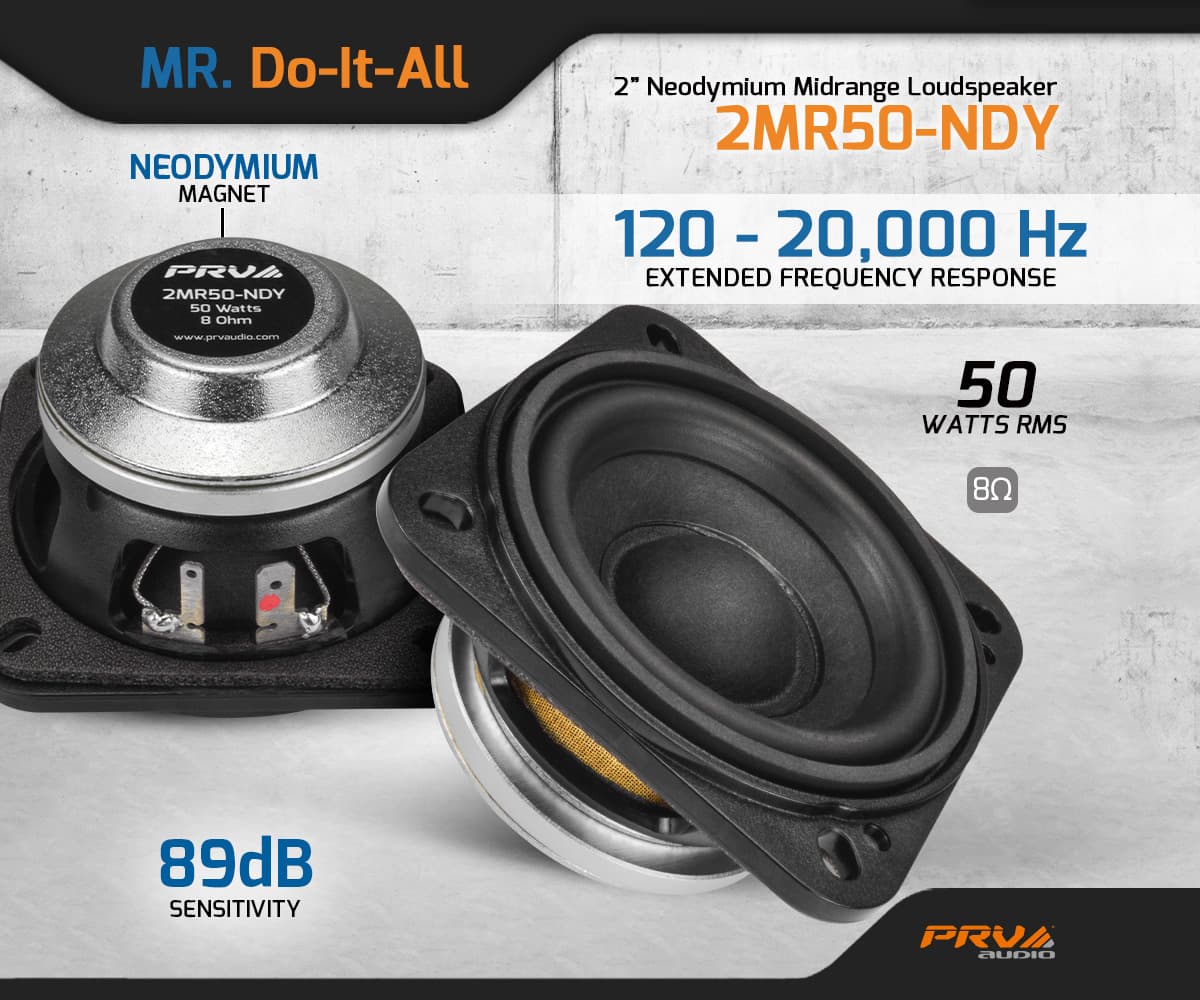

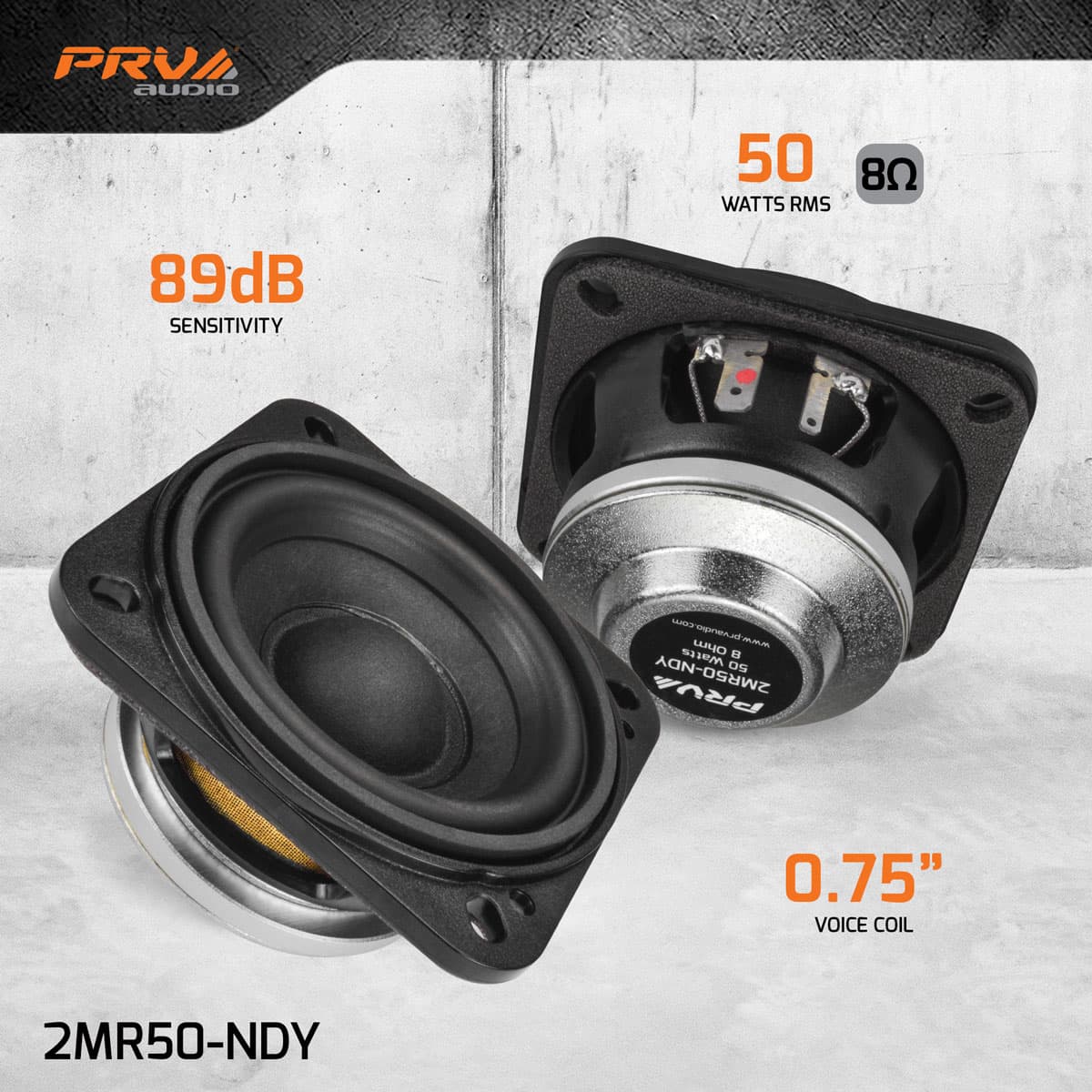

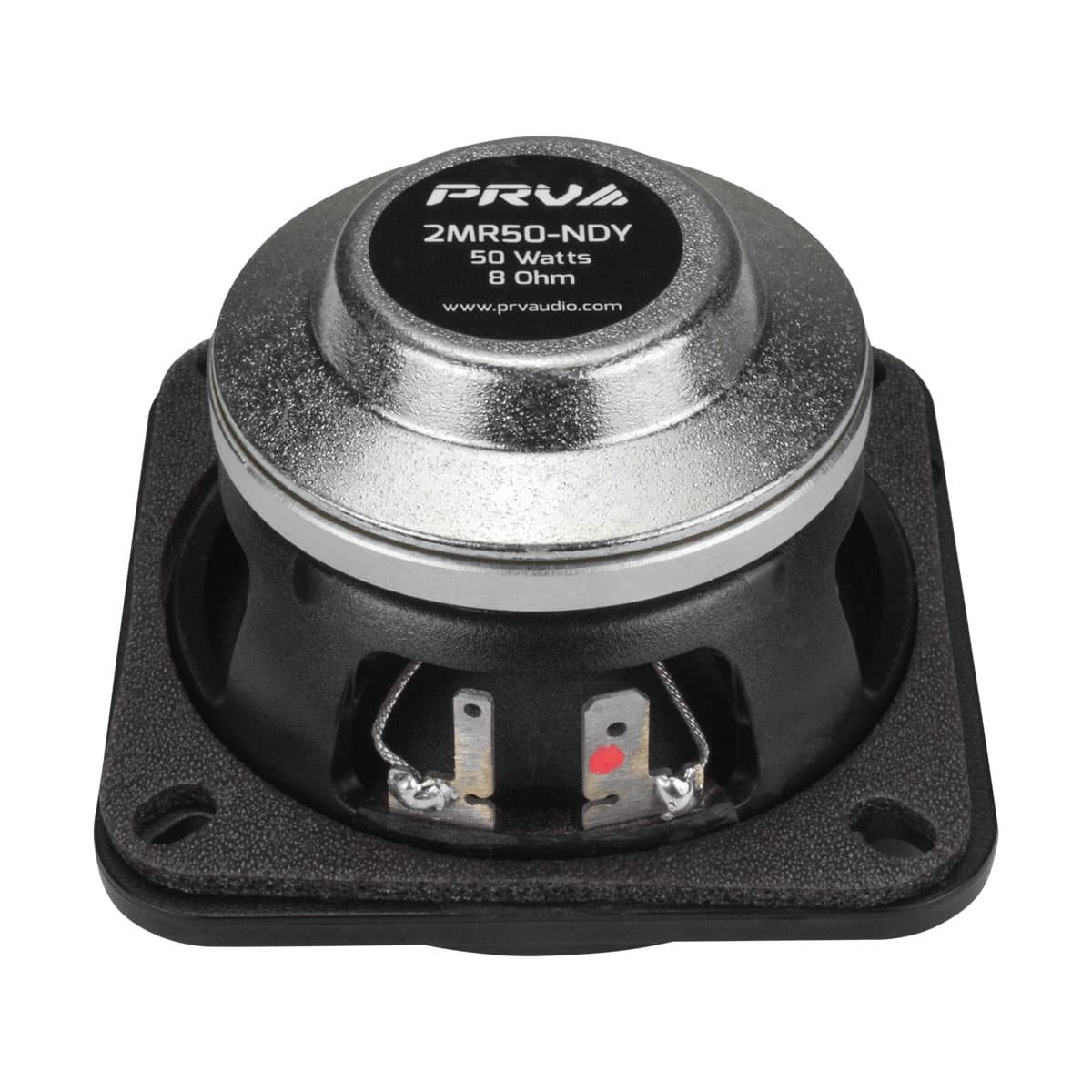

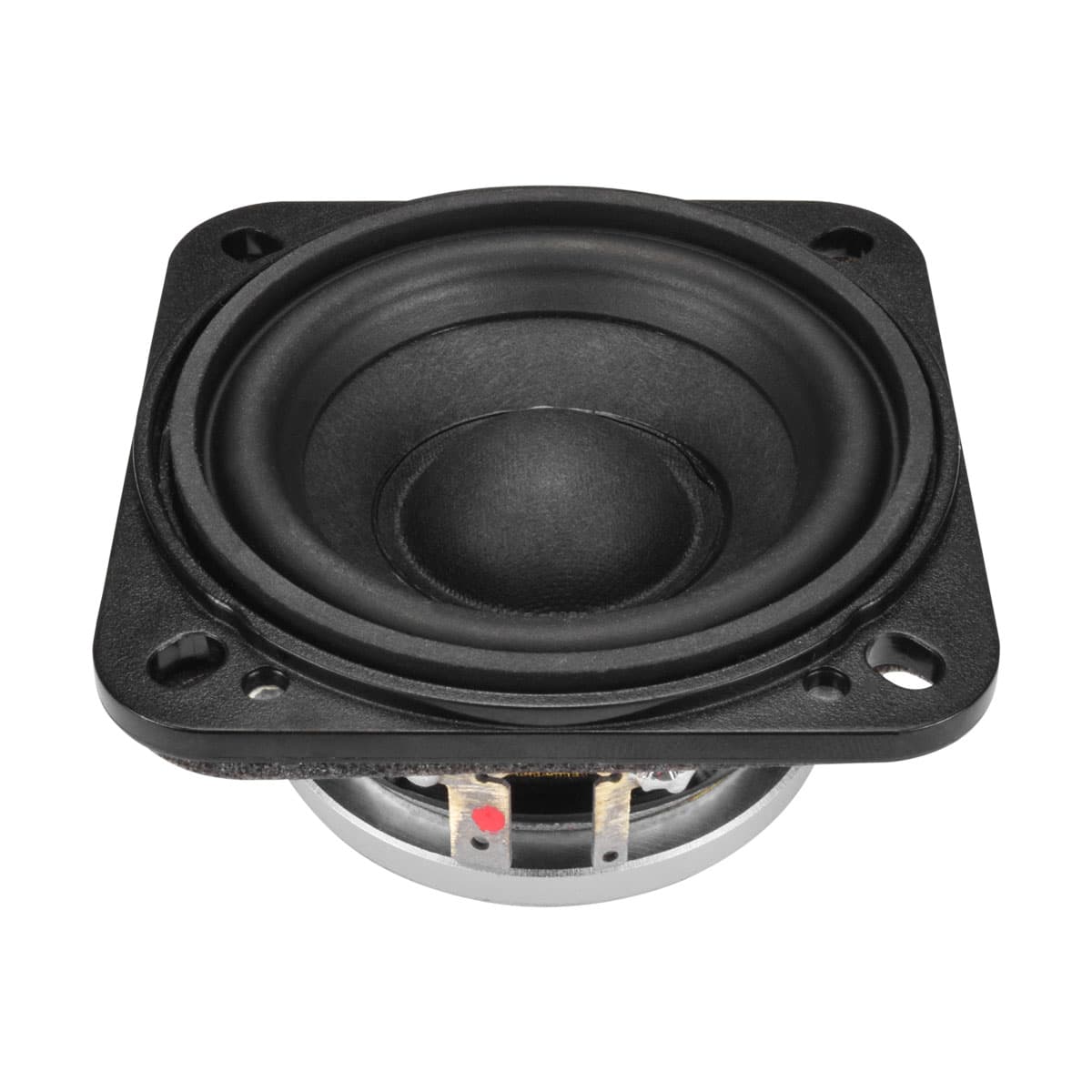

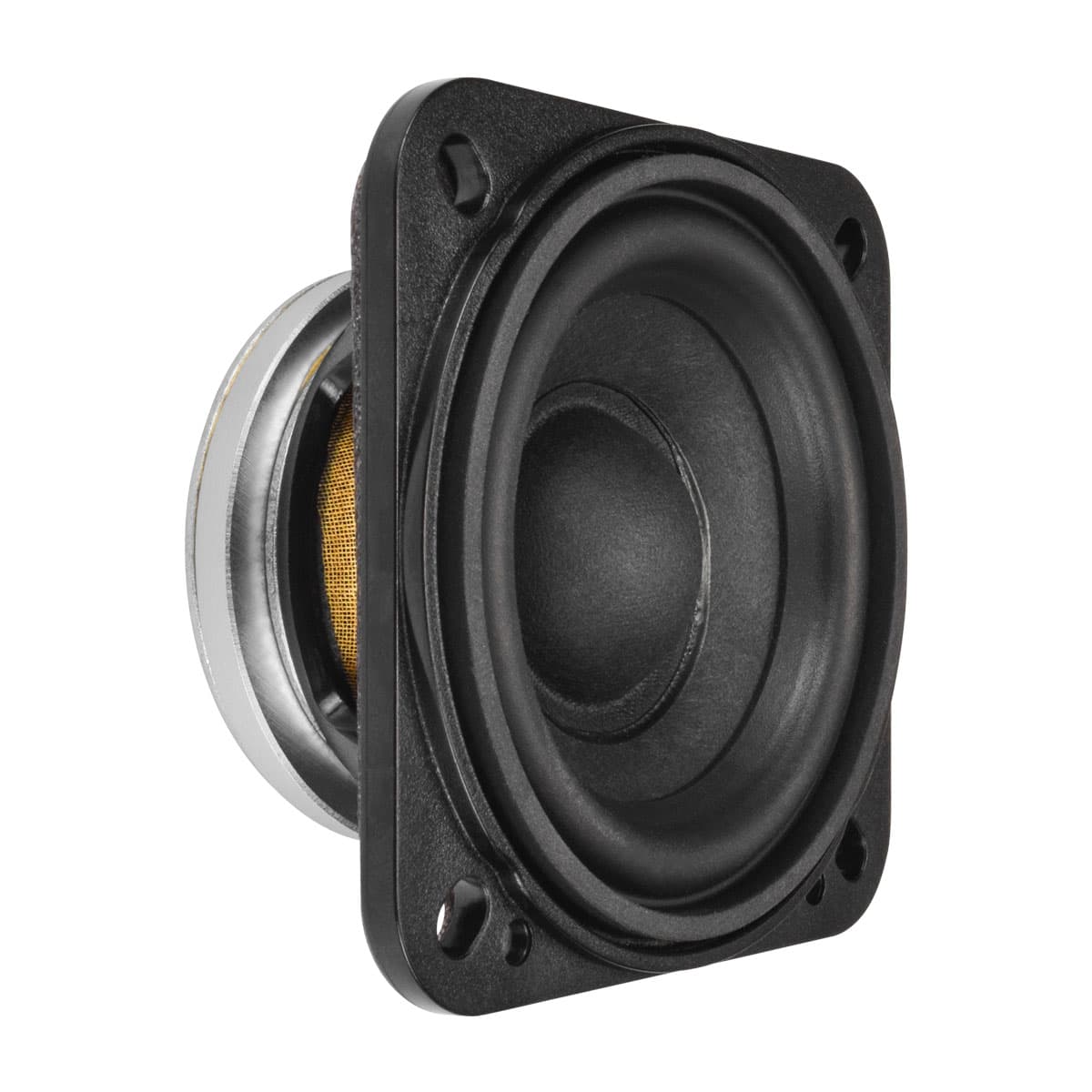

PRV Audio 2MR50-NDY 8Ω
8 Ω · 125–20000 Hz
No current price
- Fs
- 124Hz
- Xmax
- 2.9mm
- SPL
- 85dB
- Pe
- –
- BL
- 5.0T·m
- Vd
- 6cm³
- Qts
- 0.37
- Vas
- 0.44L
PRV Audio 2MR50-NDY is a 2.5-inch 8 ohm LF driver. The validated T/S data includes Fs 124 Hz, Qts 0.37, Vas 0.44 L, Xmax 2.9 mm, sensitivity 85.1 dB, plus 6 cm³ Vd and 302 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 124Hz
- Qts
- 0.37
- Qes
- 0.41
- Qms
- 3.8
- Vas
- 0.44L
- Re
- 6.5Ω
- Le
- 0.15mH
Motor and cone
- BL
- 5.0T·m
- Sd
- 20cm²
- Mms
- 2g
- Xmax
- 2.9mm
- Vd †
- 6cm³
- Voice coil
- 19mm
Power and response
- Sensitivity †
- 85.1dB
- Manufacturer sensitivity
- 89dB
- Impedance
- 8Ω
- Range
- 125–20000Hz
- EBP †
- 302 · Leans vented
Size and mounting
- Cutout
- 60.5mm
- Depth
- 42mm
- Weight
- 0.18kg
Other published values
- Cms
- 0.82mm/N
Other dimensions
- Mounting Depth
- 36
Sensitivity shows 85.1 dB, calculated from the T/S values. PRV Audio publishes 89.0 dB, 3.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else PRV Audio lists
MF · Primary · 2.5″
- BL
- 5.0T·m
- Fs
- 124Hz
- Le
- 0.15mH
- Re
- 6.5Ω
- Sd
- 20cm²
- Cms
- 0.82mm/N
- Mms
- 2g
- Qes
- 0.41
- Qms
- 3.8
- Qts
- 0.37
- SPL
- 85.1dB
- Vas
- 0.44L
- Xmax
- 2.9mm
- Impedance
- 8Ω
- Sensitivity
- 89dB
- Low limit
- 125Hz
- Calculated sensitivity †
- 85.1dB
- High limit
- 20000Hz
- Manufacturer sensitivity
- 89dB
- Voice coil
- 19mm
- Weight
- 0.18kg
- Depth
- 42mm
- Mounting Depth
- 36
- Cutout
- 60.5mm
