Overview
LF Driver
Dayton Audio
Dayton Audio ND64-16
Dayton Audio ND64-16 is a 2" 16 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 101Hz, Qts 0.41, Vas 0.5L, Xmax 1.9mm, sensitivity 82.9dB, plus 3cm³ Vd and 224 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
16Ω
RMS Power
15W
Sensitivity
82.9dB
80.2dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
224
Vented alignment
Vd
3cm³
T/S Parameters
Valid
Fs101Hz
Qts0.41
Qes0.45
Qms4.1
Vas0.5L
Re14.5Ω
Le1.21mH
BL6.5Tm
Sd16cm²
Mms2g
Xmax1.9mm
SPL83dB
Power15W
Impedance16Ω
F Low100Hz
F High20000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.5kg
Diameter64.0mm
Overall Depth39.0mm
Cutout Diameter53.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
ND64-16
2"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
48%
Similarity

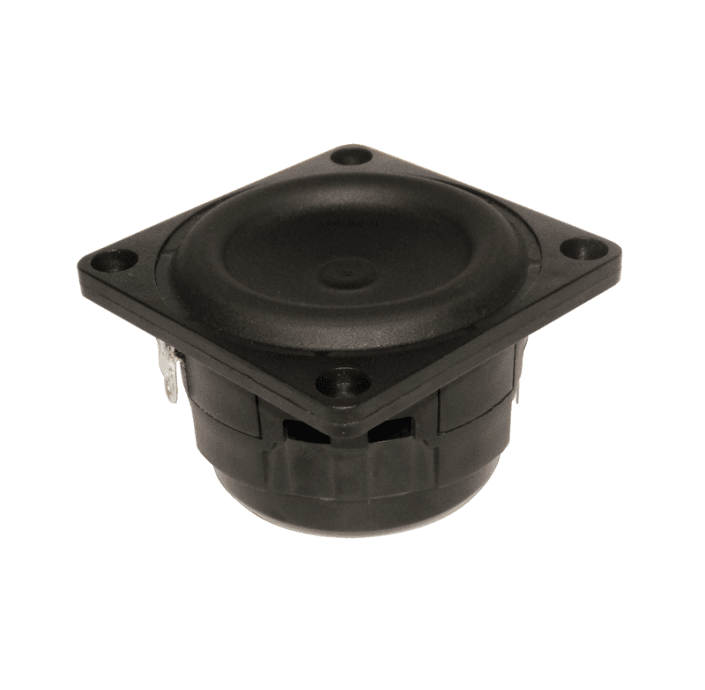

Tang Band
W2-1625SA
2"
Xmax2mm+5%
Qts0.31-24%
BL5.2Tm-21%
Vas0.3L-42%
Qes0.33-27%
48%
Similarity

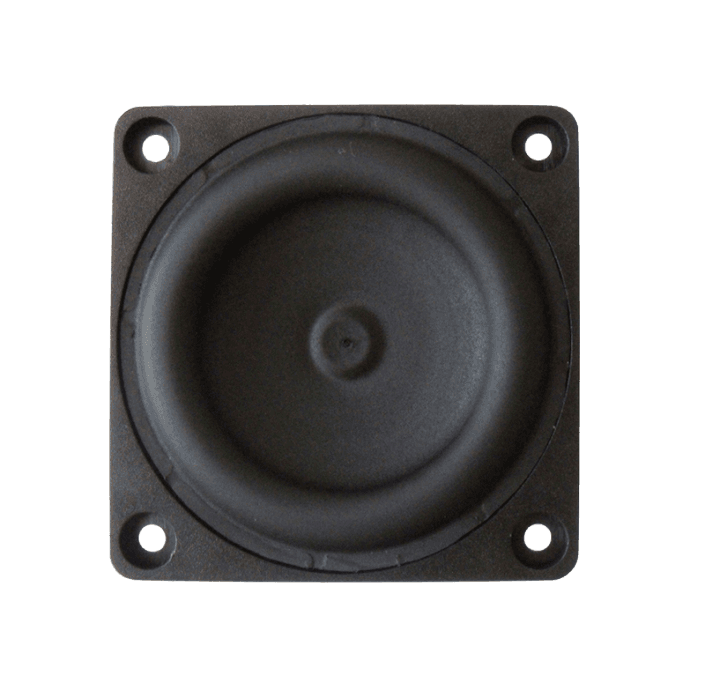

Tang Band
