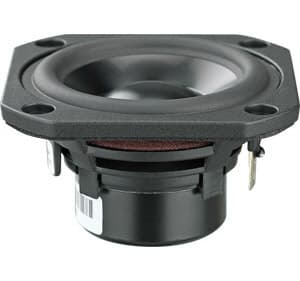

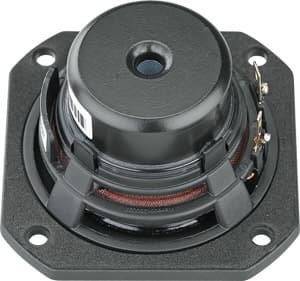

Wavecor FR070WA05 4Ω
4 Ω
£100.39
Lautsprechershop · Ships from Germany · All 1 offer
- Fs
- 89Hz
- Xmax
- 2.7mm
- SPL
- 81dB
- Pe
- –
- BL
- 3.8T·m
- Vd
- 6cm³
- Qts
- 0.47
- Vas
- 0.6L
Wavecor FR070WA05 is a 3-inch 4 ohm LF driver. The validated T/S data includes Fs 89 Hz, Qts 0.47, Vas 0.6 L, Xmax 2.7 mm, sensitivity 81.4 dB, plus 6 cm³ Vd and 182 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £100.39.
The published T/S values agree with each other
Thiele/Small
- Fs
- 89Hz
- Qts
- 0.47
- Qes
- 0.49
- Qms
- 12.6
- Vas
- 0.6L
- Re
- 3.4Ω
Motor and cone
- BL
- 3.8T·m
- Sd
- 22cm²
- Mms
- 4g
- Xmax
- 2.7mm
- Vd †
- 6cm³
- Voice coil
- 26mm
Power and response
- Sensitivity †
- 81.4dB
- Impedance
- 4Ω
- EBP †
- 182 · Leans vented
Size and mounting
- Diameter
- 69.8mm
Other published values
- Cms
- 0.88mm/N
- Rms
- 0.16kg/s
† Calculated by bits from the published values
What this validation status means
Everything else Wavecor lists
LF · Primary · 3″
- BL
- 3.8T·m
- Fs
- 89Hz
- Re
- 3.4Ω
- Sd
- 22cm²
- Cms
- 0.88mm/N
- Mms
- 4g
- Qes
- 0.49
- Qms
- 12.6
- Qts
- 0.47
- Rms
- 0.16kg/s
- SPL
- 81.4dB
- Vas
- 0.6L
- Xmax
- 2.7mm
- Impedance
- 4Ω
- Calculated sensitivity †
- 81.4dB
- Voice coil
- 26mm
- Diameter
- 69.8mm
