LF DriverFE series
FaitalPRO

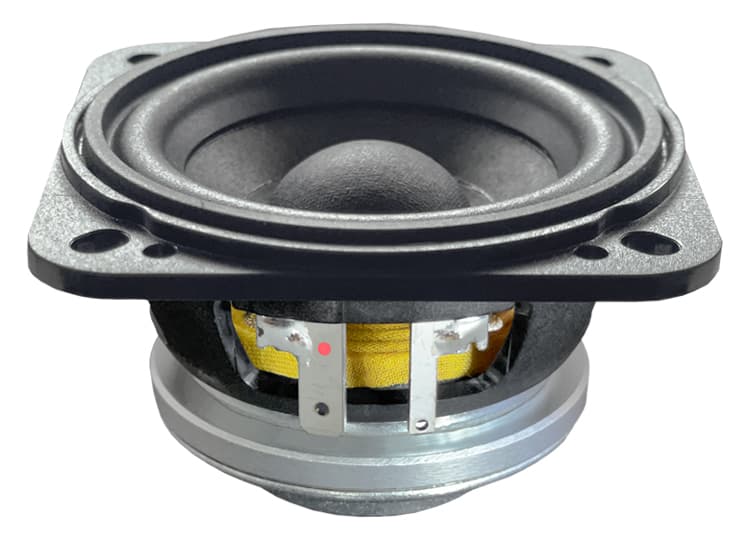

FaitalPRO 2FE22
FaitalPRO 2FE22 is a 2.5" 8 ohm LF driver rated at 25W RMS. The validated T/S data includes Fs 125Hz, Qts 0.38, Vas 0.5L, Xmax 2.9mm, sensitivity 85.6dB, plus 6cm³ Vd and 291 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £15.79.
Size
2.5"
Impedance
8Ω
RMS Power
25W
Sensitivity
85.6dB
89.0dBmanufacturer; using T/S-derived value (3.4dB delta).
EBP
291
Vented alignment
Vd
6cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees120 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
120 plotted pointsMedium confidence267 selected pixels of 702 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence885 selected pixels of 885 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,383 selected pixels of 1,383
T/S Parameters
Valid
Fs125Hz
Qts0.38
Qes0.43
Qms3.1
Vas0.5L
Re6.5Ω
Le0.15mH
BL5.2Tm
Sd20cm²
Mms2g
Xmax2.9mm
SPL86dB
Power25W
Impedance8Ω
F Low125Hz
F High20000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£15.79
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter88.0mm
Overall Depth35.5mm
Cutout Diameter60.5mm
Bolt Circle Diameter75.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
2FE22
2.5"
Best current price
£15.79
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
67%
Similarity

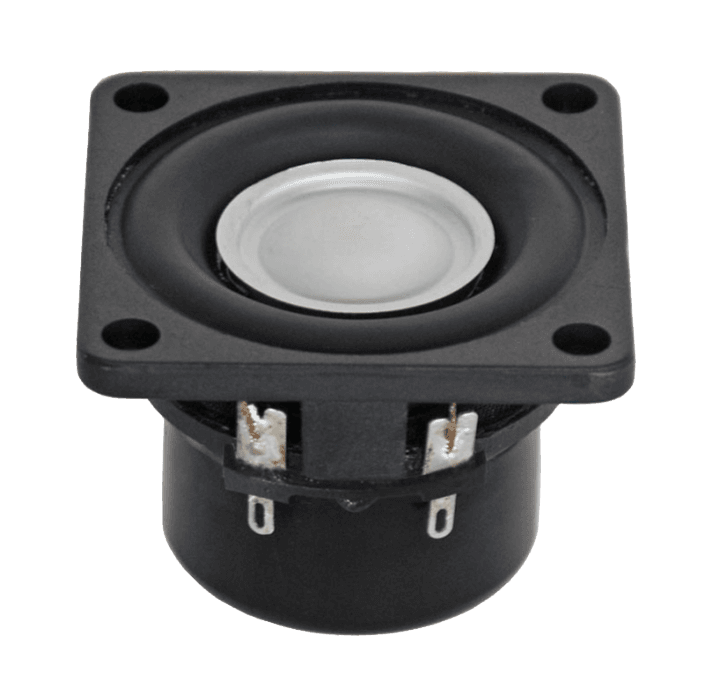

Tang Band
W2-1767S
2"
Xmax3mm+3%
Qts0.36-5%
BL5Tm-3%
Vas0.2L-56%
Qes0.41-5%
Image unavailable
47%
Similarity
Wavecor
FR070WA05
3"
Xmax2.7mm-7%
Qts0.47+24%
BL3.8Tm-28%
Vas0.6L+20%
Qes0.49+14%
