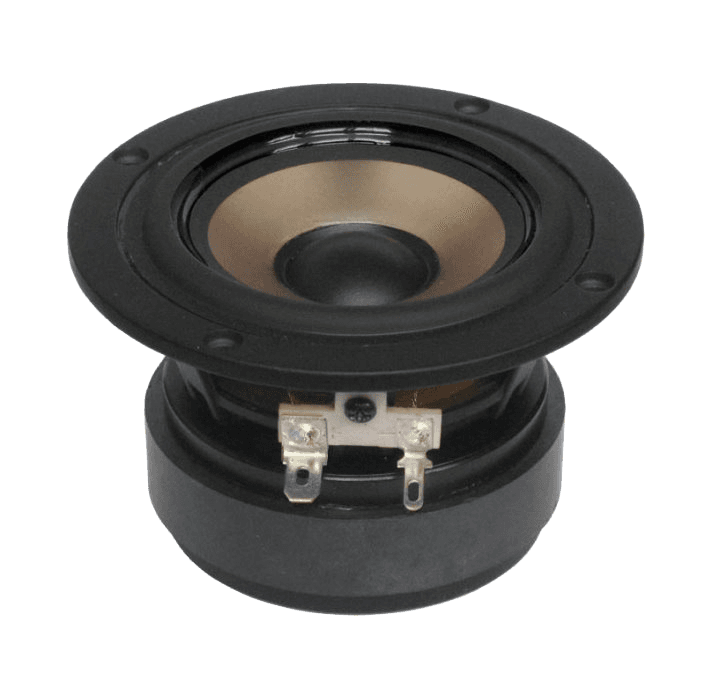

REDCATT 35FR-1 4Ω
4 Ω
£13.31
Lautsprecherteile · 32 in stock · All 1 offer
- Fs
- 67Hz
- Xmax
- 0.55mm
- SPL
- 83dB
- Pe
- 25W
- BL
- 5.5T·m
- Vd
- 2cm³
- Qts
- 0.34
- Vas
- 2L
REDCATT 35FR-1 is a 3.5-inch 4 ohm LF driver rated at 25 W RMS. The validated T/S data includes Fs 67 Hz, Qts 0.34, Vas 1.6 L, Xmax 0.55 mm, sensitivity 83.2 dB, plus 2 cm³ Vd and 181 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £13.31.
The published T/S values agree with each other
Thiele/Small
- Fs
- 67Hz
- Qts
- 0.34
- Qes
- 0.37
- Qms
- 4.3
- Vas
- 1.6L
- Re
- 3.5Ω
- Le
- 0.14mH
Motor and cone
- BL
- 5.5T·m
- Sd
- 39cm²
- Mms
- 8g
- Xmax
- 0.55mm
- Vd †
- 2cm³
- Voice coil
- 25mm
Power and response
- Sensitivity †
- 83.2dB
- Manufacturer sensitivity
- 83.7dB
- Power
- 25W
- Impedance
- 4Ω
- EBP †
- 181 · Leans vented
Size and mounting
- Diameter
- 93mm
- Cutout
- 85mm
- Bolt circle
- 101mm
- Weight
- 0.85kg
Other published values
- Xmech
- 7.45
- Power Peak
- 100
Other dimensions
- Mounting Depth
- 51
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 3.5″
- BL
- 5.5T·m
- Fs
- 67Hz
- Le
- 0.14mH
- Re
- 3.5Ω
- Sd
- 39cm²
- Mms
- 8g
- Qes
- 0.37
- Qms
- 4.3
- Qts
- 0.34
- SPL
- 83.2dB
- Vas
- 1.6L
- Xmax
- 0.55mm
- Xmech
- 7.45
- Power
- 25W
- Impedance
- 4Ω
- Power Peak
- 100
- Sensitivity
- 83.7dB
- Calculated sensitivity †
- 83.2dB
- Manufacturer sensitivity
- 83.7dB
- Voice coil
- 25mm
- Weight
- 0.85kg
- Diameter
- 93mm
- Mounting Depth
- 51
- Cutout
- 85mm
- Bolt circle
- 101mm
