Scanspeak 10F/8424G00 8Ω
LF DriverMedia
Overview
LF DriverDiscovery series
Scanspeak
Scanspeak 10F/8424G00
Scanspeak 10F/8424G00 is a 4" 8 ohm LF driver. The validated T/S data includes Fs 90Hz, Qts 0.37, Vas 2.1L, Xmax 2.6mm, sensitivity 87.8dB, plus 9cm³ Vd and 220 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £108.60.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Mms
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
- EBP can be derived from Fs and Qes
Size
4"
Impedance
8Ω
Sensitivity
87.8dB
86.5dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
220
Vented alignment
Vd
9cm³
T/S Parameters
Valid
Fs90Hz
Qts0.37
Qes0.41
Qms3.5
Vas2.1L
Re5.8Ω
Le0.13mH
BL4.8Tm
Sd36cm²
Xmax2.6mm
SPL88dB
Impedance8Ω
Min Impedance6.5Ω
Voice Coil20mm
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorssoundimports
Updated 11 Sept 2026
Source: inc VAT
£97.04
inc VAT
Out of stock
willyshifi
Updated 11 Sept 2026
Source: inc VAT · 20%
£109.95
inc VAT
Best current price
Updated 11 Sept 2026
wilmslowaudio
£108.60
Avg £109.28£0.68 below avg (-0.6%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Mms, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Mms, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter100.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
10F/8424G00
4"
Best current price
£108.60
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
47%
Similarity
85% cheaper£16.26
Dayton Audio
DS90-8
3"
Lower price
Xmax2.5mm-4%
Qts0.43+16%
BL4.8Tm-1%
Vas1.3L-38%
Qes0.53+29%
73%
Similarity
82% cheaper£19.96
Dayton Audio
DSA90-8
3"
Lower price
Xmax2.5mm-4%
Qts0.370%
BL4.6Tm-4%
Vas2.3L+8%
Qes0.45+10%
49%
Similarity
78% cheaper£23.56
Lavoce
FSN030.72
3"
Lower price
Xmax2.1mm-19%
Qts0.41+11%
BL5Tm+4%
Vas1.1L-47%
Qes0.43+5%
52%
Similarity
63% cheaper£39.67
CIARE
CM100
4"
Lower price
Xmax1.9mm-27%
Qts0.43+16%
BL4.1Tm-15%
Vas1.8L-14%
Qes0.52+27%
54%
Similarity
155% more£276.95

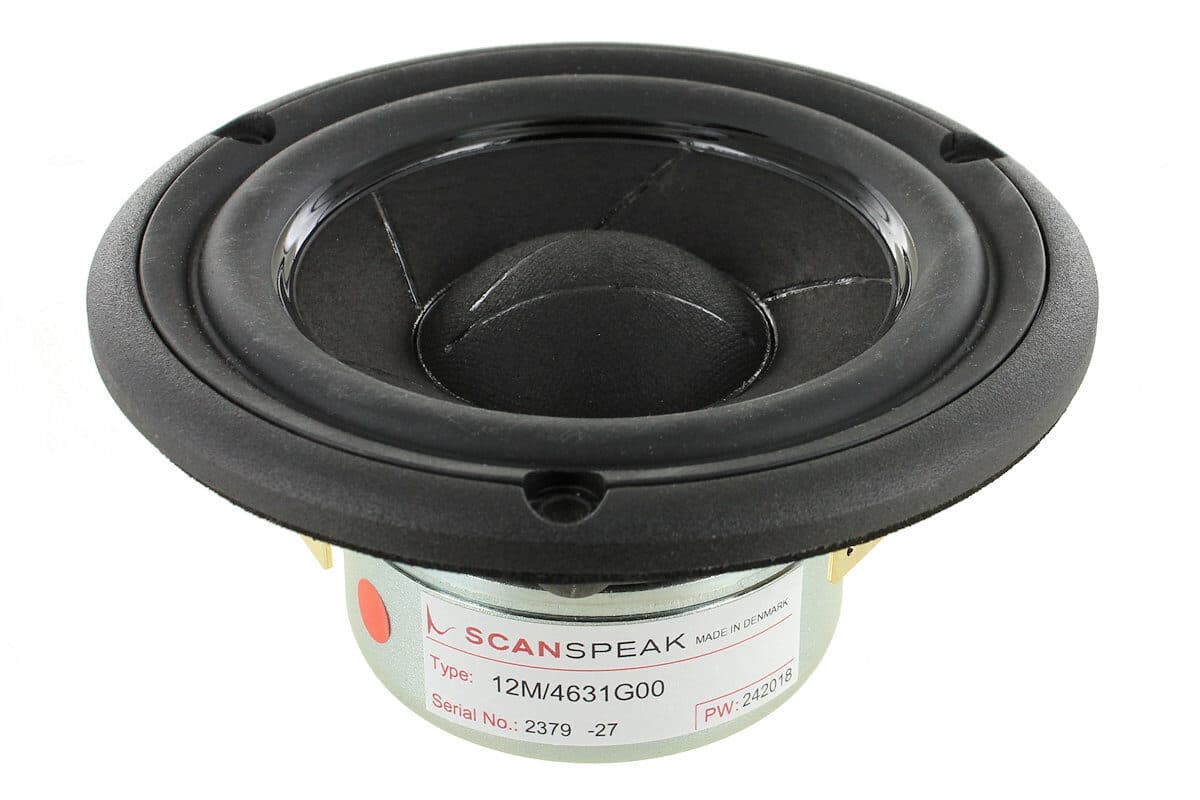

Scanspeak
12M/4631G00
5"
Higher price
Xmax3mm+15%
Qts0.33-11%
BL5.3Tm+10%
Vas2.3L+10%
Qes0.35-15%
68%
Similarity
Sica
4 L1 1 SL
4"
Xmax2.5mm-4%
Qts0.36-3%
BL6.2Tm+28%
Vas1.2L-43%
Qes0.44+7%
63%
Similarity

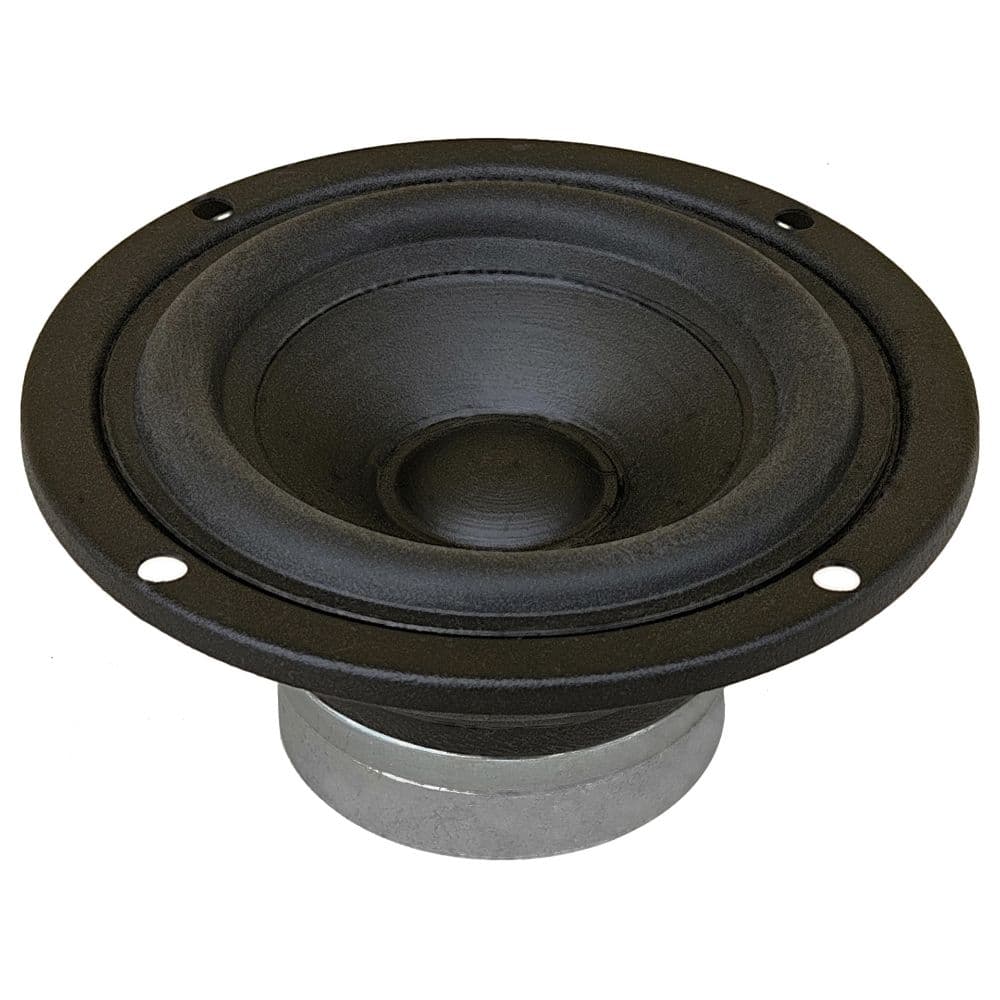

CIARE
NDI3.21
3.5"
Xmax2mm-23%
Qts0.38+3%
BL4Tm-17%
Vas1.8L-14%
Qes0.44+7%
60%
Similarity
Sica
4 E 1 CS
4"
Xmax2.2mm-15%
Qts0.39+5%
BL5.8Tm+20%
Vas1.3L-38%
Qes0.49+20%
54%
Similarity
Wavecor
SW070WA02
3"
Xmax2.5mm-4%
Qts0.34-8%
BL4.8Tm-1%
Vas0.9L-58%
Qes0.36-12%
44%
Similarity

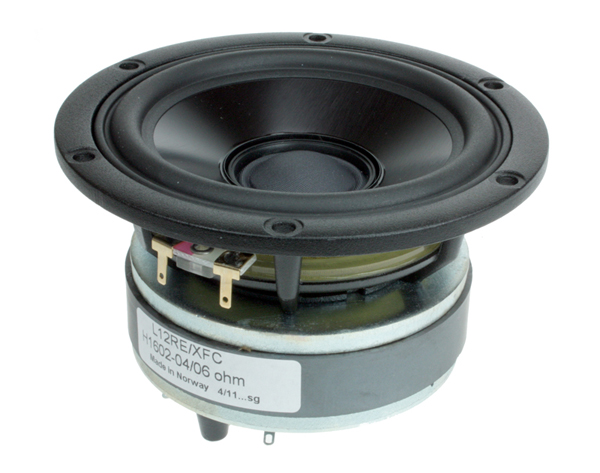

SEAS
H1602-04/06 L12RE/XFC
4.5"
Xmax3mm+15%
Qts0.3-19%
BL5.5Tm+15%
Vas3L+43%
Qes0.33-20%
43%
Similarity
CIARE
FXI3.21
3.5"
Xmax2mm-23%
Qts0.44+19%
BL3.7Tm-23%
Vas1.8L-14%
Qes0.49+20%
43%
Similarity
Peerless
TG9FC02-04
4"
Xmax3mm+17%
Qts0.43+16%
BL3.9Tm-20%
Vas0.8L-60%
Qes0.52+28%
