LF DriverFSN030 series
Lavoce

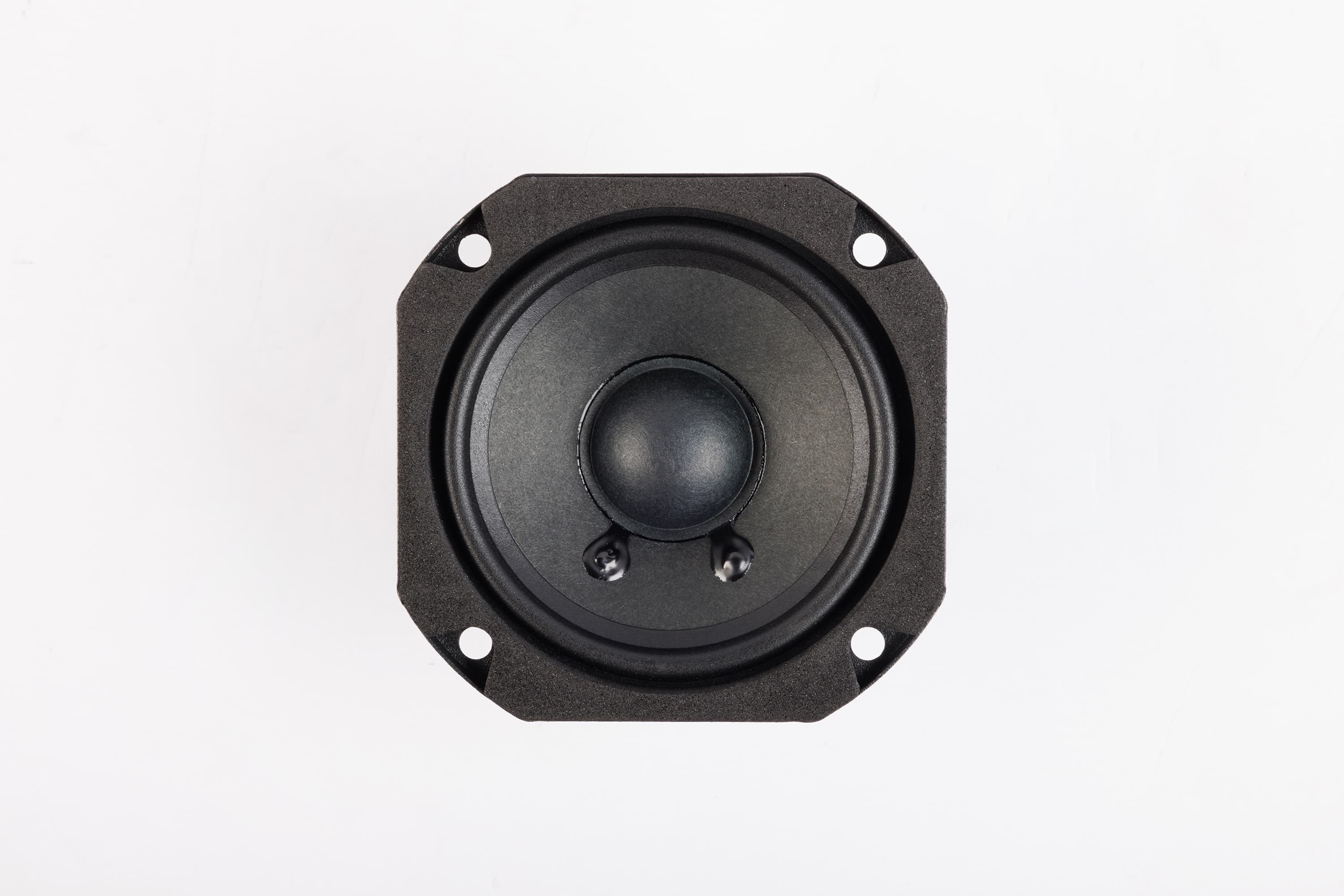

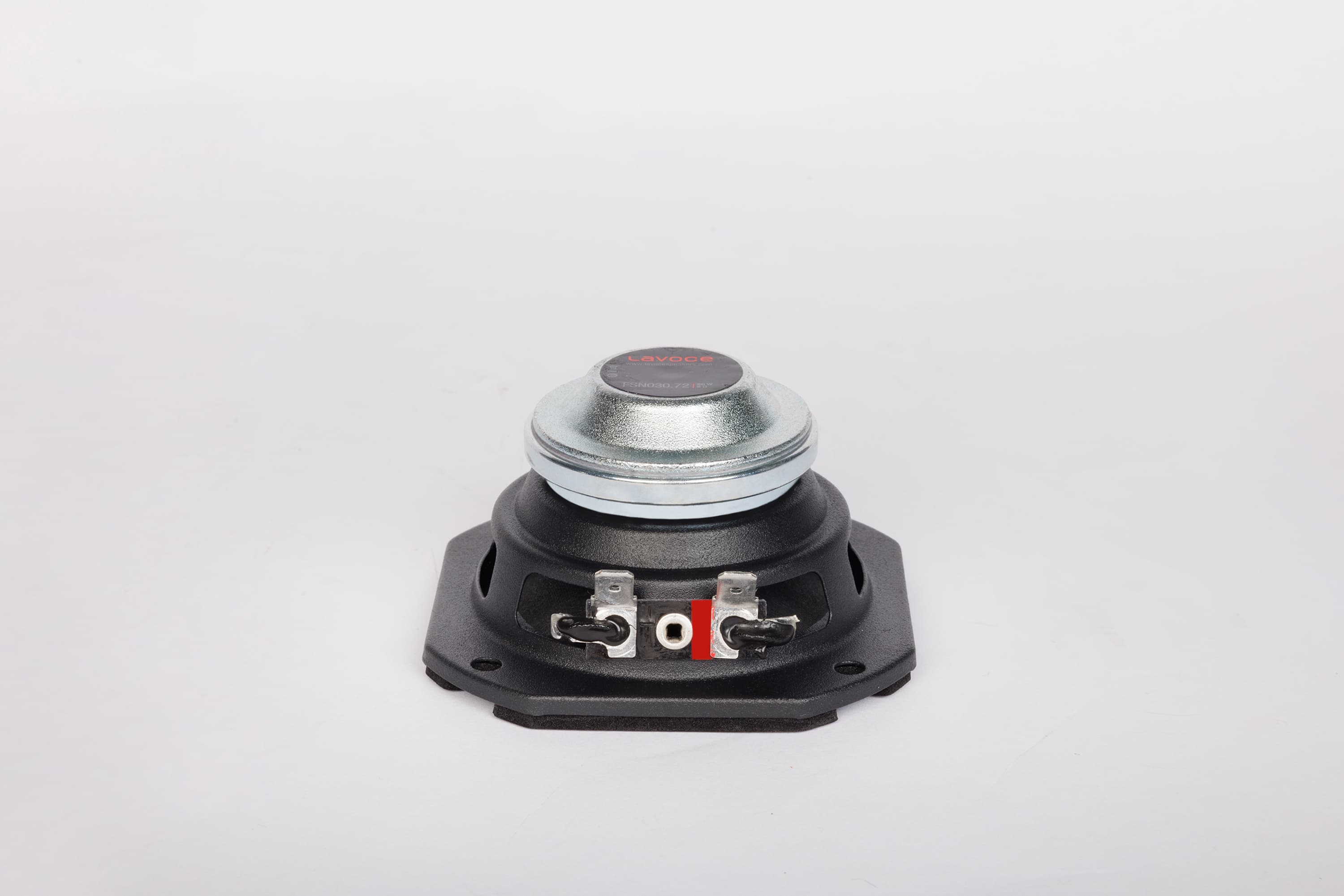

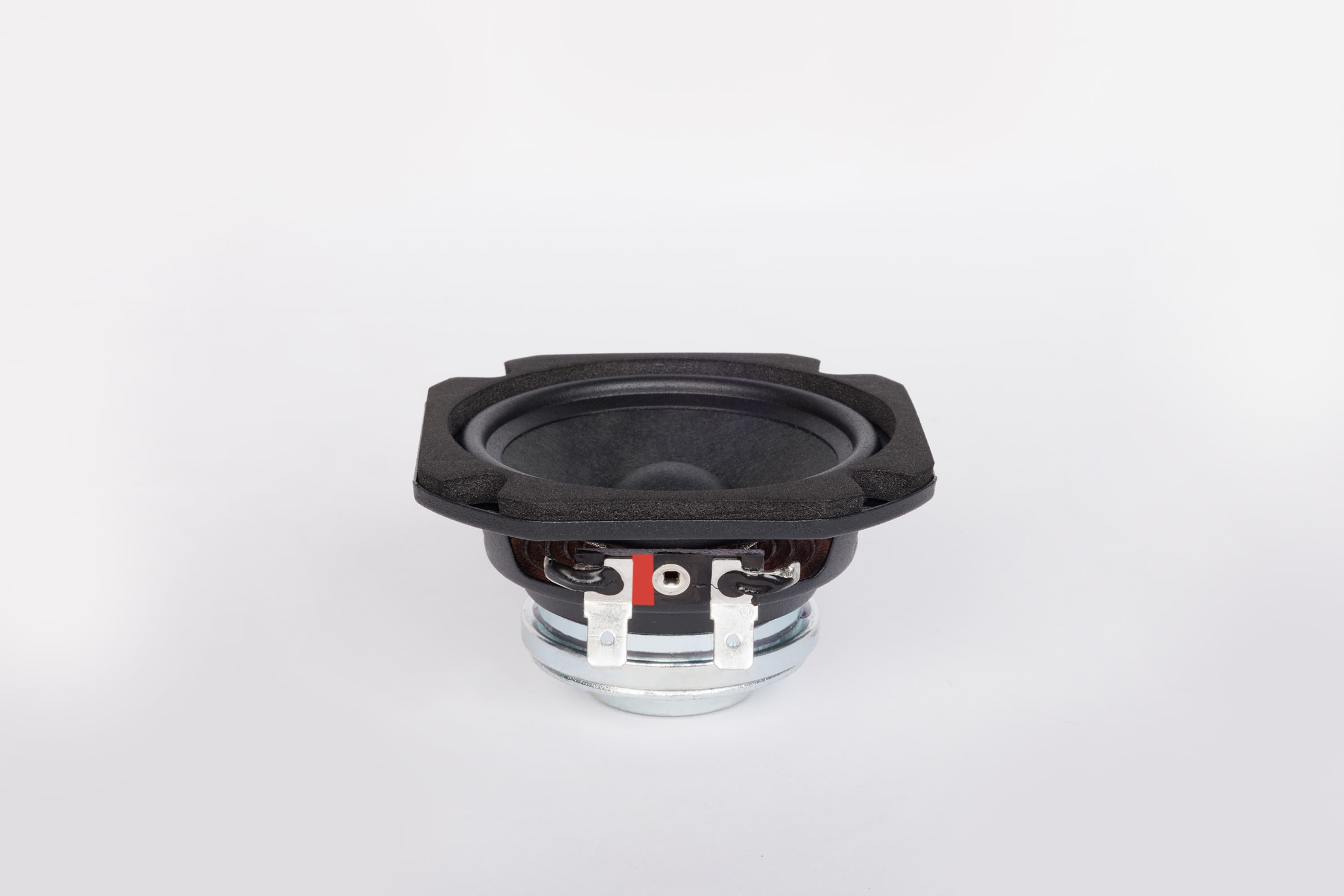

Lavoce FSN030.72
Lavoce FSN030.72 is a 3" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 127Hz, Qts 0.41, Vas 1.1L, Xmax 2.1mm, sensitivity 89.3dB, plus 7cm³ Vd and 295 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £23.56.
Size
3"
Impedance
8Ω
RMS Power
30W
Sensitivity
89.3dB
90.5dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
295
Vented alignment
Vd
7cm³
T/S Parameters
Valid
Fs127Hz
Qts0.41
Qes0.43
Qms7.5
Vas1.1L
Re6.2Ω
Le0.20mH
BL5.0Tm
Sd33cm²
Mms2g
Xmax2.1mm
SPL89dB
Power30W
Impedance8Ω
Min Impedance6.9Ω
F Low120Hz
F High20000Hz
Voice Coil20mm
Pricing & availability
Price definitionsPrice movement
Best current price
£23.56
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.2kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
FSN030.72
3"
Best current price
£23.56
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
11 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
65%
Similarity
22% cheaper£18.26
FaitalPRO
3FE22
3"
Lower price
Xmax1.8mm-13%
Qts0.47+15%
BL4.5Tm-10%
Vas1.3L+16%
Qes0.52+21%
53%
Similarity
9% cheaper£21.47
Eminence
ALPHA 3-8
3"
Lower price
Xmax2.4mm+14%
Qts0.5+22%
BL3.9Tm-21%
Vas0.9L-15%
Qes0.53+23%
81%
Similarity
Monacor
SPH-30X/4SW
3"
Xmax2mm-5%
Qts0.42+2%
BL3.9Tm-22%
Vas1.1L-2%
Qes0.39-9%
81%
Similarity
Monacor
SPH-30X/8SW
3"
Xmax2mm-5%
Qts0.42+2%
BL4.5Tm-10%
Vas1.3L+16%
Qes0.49+14%
69%
Similarity
Dayton Audio
DS90-8
3"
Xmax2.5mm+19%
Qts0.43+5%
BL4.8Tm-5%
Vas1.3L+17%
Qes0.53+23%
59%
Similarity
Sica
4 E 1 CS
4"
Xmax2.2mm+5%
Qts0.39-5%
BL5.8Tm+15%
Vas1.3L+16%
Qes0.49+14%
51%
Similarity
Tang Band
W4-1129E
4"
Xmax1.8mm-14%
Qts0.44+7%
BL5.2Tm+4%
Vas1.7L+54%
Qes0.46+7%
50%
Similarity
Sica
4 L1 1 SL
4"
Xmax2.5mm+19%
Qts0.36-12%
BL6.2Tm+23%
Vas1.2L+7%
Qes0.44+2%
47%
Similarity
Dayton Audio
ND64-16
2"
Xmax1.9mm-10%
Qts0.410%
BL6.5Tm+31%
Vas0.5L-53%
Qes0.45+5%
Image unavailable
44%
Similarity
Wavecor
FR070WA05
3"
Xmax2.7mm+29%
Qts0.47+15%
BL3.8Tm-25%
Vas0.6L-46%
Qes0.49+14%
43%
Similarity
Visaton
FRS 8 M - 8 Ohm
3.5"
Xmax2.5mm+19%
Qts0.49+20%
BL4Tm-20%
Vas1.1L-2%
Qes0.58+35%
