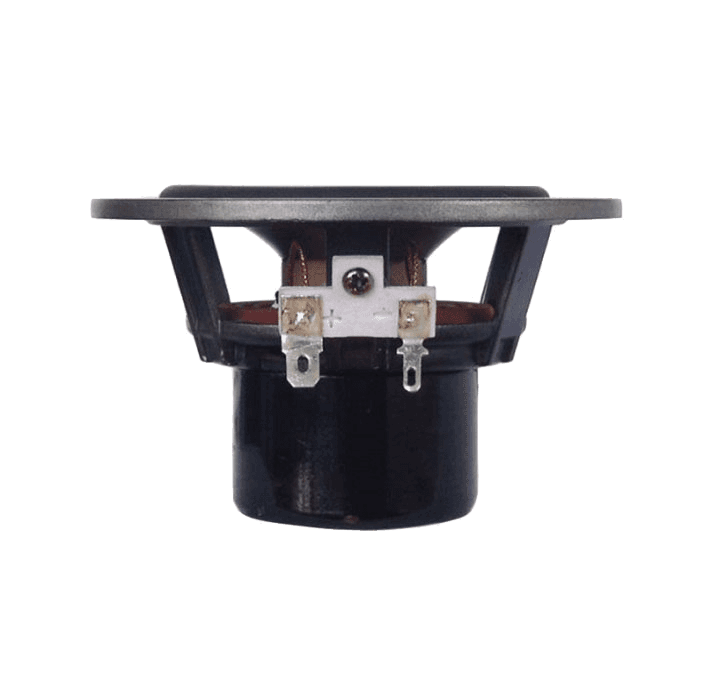

Tang Band W3-1335SB 8Ω
8 Ω
No price for delivery to the UK
- Fs
- 100Hz
- Xmax
- 0.5mm
- SPL
- 86dB
- Pe
- 15W
- BL
- 5.2T·m
- Vd
- 2cm³
- Qts
- 0.34
- Vas
- 1L
Tang Band W3-1335SB is a 3-inch 8 ohm LF driver rated at 15 W RMS. The validated T/S data includes Fs 100 Hz, Qts 0.34, Vas 1.2 L, Xmax 0.5 mm, sensitivity 86.3 dB, plus 2 cm³ Vd and 217 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £61.96.
The published T/S values agree with each other
Thiele/Small
- Fs
- 100Hz
- Qts
- 0.34
- Qes
- 0.46
- Qms
- 1.3
- Vas
- 1.2L
- Re
- 6.6Ω
- Le
- 0.008mH
Motor and cone
- BL
- 5.2T·m
- Sd
- 32cm²
- Mms
- 3g
- Xmax
- 0.5mm
- Vd †
- 2cm³
Power and response
- Sensitivity †
- 86.3dB
- Manufacturer sensitivity
- 86dB
- Power
- 15W
- Impedance
- 8Ω
- EBP †
- 217 · Leans vented
Other published values
- Power Peak
- 30
† Calculated by bits from the published values
What this validation status means
Everything else Tang Band lists
LF · Primary · 3″
- BL
- 5.2T·m
- Fs
- 100Hz
- Le
- 0.008mH
- Re
- 6.6Ω
- Sd
- 32cm²
- Mms
- 3g
- Qes
- 0.46
- Qms
- 1.3
- Qts
- 0.34
- SPL
- 86.3dB
- Vas
- 1.2L
- Xmax
- 0.5mm
- Power
- 15W
- Impedance
- 8Ω
- Power Peak
- 30
- Sensitivity
- 86dB
- Calculated sensitivity †
- 86.3dB
- Manufacturer sensitivity
- 86dB
02
Compare
Same-size drivers, compared with the W3-1335SB. Clear differences are green when better and red when worse.
This driverW3-1335SB
Best price
£61.96
Fs
100 Hz
Qts
0.34
Vas
1.2 L
BL
5.2 T·m
Xmax
0.5 mm
Sensitivity
86.3 dB
Power
15 W
REDCATT35FR-1
£13.05 · 79% less, betterFs67 Hz −33%, better
Qts0.34 –
Vas1.6 L +31%, worse
BL5.5 T·m +6%
Xmax0.55 mm +10%, better
Sensitivity83.2 dB −3.1, worse
FaitalPRO2FE22
£15.79 · 75% less, betterFs125 Hz +25%, worse
Qts0.38 +12%, worse
Vas0.5 L −59%, better
BL5.2 T·m –
Xmax2.9 mm +480%, better
Sensitivity85.6 dB −0.7
Dayton AudioND91-4
£20.93 · 66% less, betterFs74 Hz −26%, better
Qts0.41 +21%, worse
Vas1.4 L +15%, worse
BL4.6 T·m −11%, worse
Xmax4.6 mm +820%, better
Sensitivity83 dB −3.3, worse
Sica4 E 1 CS
£23.86 · 61% less, betterFs118 Hz +18%, worse
Qts0.39 +15%, worse
Vas1.3 L +7%
BL5.8 T·m +12%, better
Xmax2.2 mm +340%, better
Sensitivity88.4 dB +2.1, better
PeerlessSLS-85S25CP04-04
£25.08 · 60% less, betterFs73 Hz −27%, better
Qts0.36 +6%
Vas1.4 L +17%, worse
BL4.3 T·m −17%, worse
Xmax6.5 mm +1200%, better
Sensitivity83.6 dB −2.7, worse

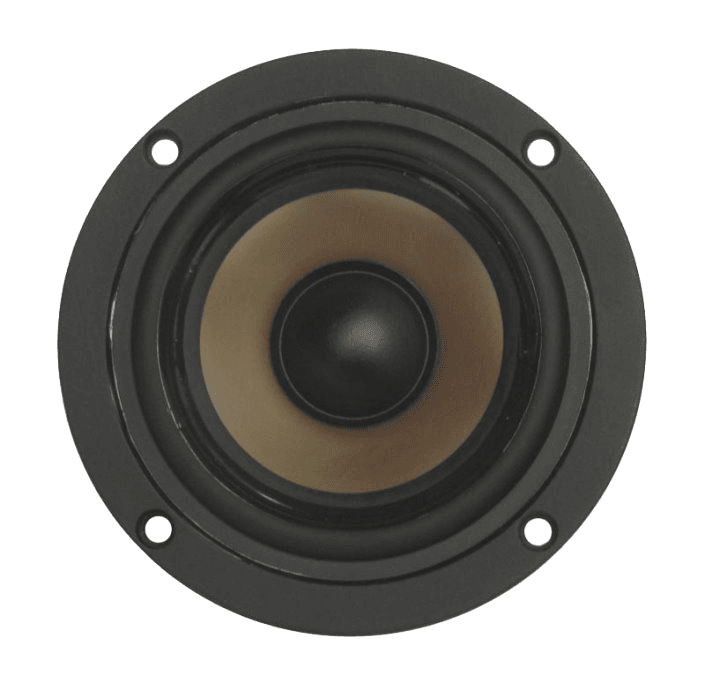

Tang BandW3-881SJF
£30.14 · 51% less, betterFs100 Hz –
Qts0.39 +15%, worse
Vas1.9 L +55%, worse
BL4.5 T·m −13%, worse
Xmax0.5 mm –
Sensitivity88.7 dB +2.4, better
LavoceFSN030.72
£30.67 · 51% less, betterFs127 Hz +27%, worse
Qts0.41 +21%, worse
Vas1.1 L −8%
BL5.0 T·m −3%
Xmax2.1 mm +320%, better
Sensitivity89.3 dB +3, better
MonacorSP-100/8
£31.15 · 50% less, betterFs61 Hz −39%, better
Qts0.37 +9%
Vas4.7 L +285%, worse
BL5.5 T·m +7%
Xmax2.5 mm +400%, better
Sensitivity85.9 dB –
MonacorSPX-20M
£34.33 · 45% less, betterFs157 Hz +57%, worse
Qts0.42 +24%, worse
Vas0.2 L −84%, better
BL4.5 T·m −13%, worse
Xmax0.5 mm –
Sensitivity84.3 dB −2, worse
Sica4 L1 1 SL
£38.93 · 37% less, betterFs120 Hz +20%, worse
Qts0.36 +6%
Vas1.2 L –
BL6.2 T·m +19%, better
Xmax2.5 mm +400%, better
Sensitivity88.8 dB +2.5, better
Tang BandW3-1231SN
£46.05 · 26% less, betterFs100 Hz –
Qts0.34 –
Vas1.4 L +16%, worse
BL4.4 T·m −14%, worse
Xmax1.3 mm +150%, better
Sensitivity87.2 dB +0.9
MonacorSPH-30X/8SW
£57.31 · 7% less, betterFs105 Hz +5%
Qts0.42 +24%, worse
Vas1.3 L +7%
BL4.5 T·m −13%, worse
Xmax2 mm +300%, better
Sensitivity86.9 dB +0.6
Tang BandW4-1320SIF
£57.77 · 7% less, betterFs75 Hz −25%, better
Qts0.36 +6%
Vas5.2 L +329%, worse
BL5.3 T·m –
Xmax3 mm +500%, better
Sensitivity89.2 dB +2.9, better
Tang BandW4-2142
£57.77 · 7% less, betterFs60 Hz −40%, better
Qts0.33 –
Vas6.4 L +425%, worse
BL5.4 T·m +5%
Xmax2.4 mm +380%, better
Sensitivity87.5 dB +1.2
Tang BandW4-1337SDF
£71.17 · 15% more, worseFs70 Hz −30%, better
Qts0.34 –
Vas5.6 L +360%, worse
BL5.3 T·m +3%
Xmax2.5 mm +400%, better
Sensitivity88.9 dB +2.6, better
MorelCAW 428
£91.27 · 47% more, worseFs74 Hz −26%, better
Qts0.38 +12%, worse
Vas4.5 L +269%, worse
BL5 T·m −3%
Xmax4 mm +700%, better
Sensitivity88 dB +1.7
WavecorSW070WA02
£95.79 · 55% more, worseFs73 Hz −27%, better
Qts0.34 –
Vas0.9 L −27%, better
BL4.8 T·m −8%
Xmax2.5 mm +400%, better
Sensitivity81.9 dB −4.4, worse
MorelCAW 428D
£150.67 · 143% more, worseFs65 Hz −35%, better
Qts0.33 –
Vas5.1 L +318%, worse
BL5.2 T·m –
Xmax4 mm +700%, better
Sensitivity87.2 dB +0.9
MorelINTEGRA 624
£192.54 · 211% more, worseFs58 Hz −42%, better
Qts0.35 –
Vas15.3 L +1158%, worse
BL5.4 T·m +5%
Xmax3 mm +500%, better
Sensitivity90.5 dB +4.2, better
Tang BandW3-1318SA
No current priceFs100 Hz –
Qts0.31 −9%
Vas1.2 L –
BL5.3 T·m +3%
Xmax0.4 mm −20%, worse
Sensitivity86.9 dB +0.6
Tang BandW3-1797S
No current priceFs90 Hz −10%, better
Qts0.35 –
Vas1.0 L −20%, better
BL4.6 T·m −12%, worse
Xmax1 mm +100%, better
Sensitivity84.1 dB −2.2, worse
REDCATT32NFR
No current priceFs118 Hz +18%, worse
Qts0.32 −6%
Vas1.1 L −7%
BL5.3 T·m +4%
Xmax1.2 mm +140%, better
Sensitivity89.3 dB +3, better
Tang BandW4-1320SJ
No current priceFs75 Hz −25%, better
Qts0.35 –
Vas6.4 L +425%, worse
BL4.7 T·m −9%
Xmax3 mm +500%, better
Sensitivity89.4 dB +3.1, better
Tang BandW4-1320SJF
No current priceFs75 Hz −25%, better
Qts0.38 +12%, worse
Vas5.2 L +329%, worse
BL5.1 T·m –
Xmax3 mm +500%, better
Sensitivity88.9 dB +2.6, better
Tang BandW2-1767S
No current priceFs110 Hz +10%, worse
Qts0.36 +6%
Vas0.22 L −82%, better
BL5.0 T·m –
Xmax3 mm +500%, better
Sensitivity80.6 dB −5.7, worse
MarkaudioCHP-90 MICA
No current priceFs49 Hz −51%, better
Qts0.36 +7%
Vas20.1 L +1543%, worse
BL4.8 T·m −6%
Xmax7 mm +1300%, better
Sensitivity89.2 dB +2.9, better
Tang BandW4-1320SI
No current priceFs75 Hz −25%, better
Qts0.38 +12%, worse
Vas5.2 L +329%, worse
BL5.1 T·m –
Xmax3 mm +500%, better
Sensitivity88.7 dB +2.4, better
Tang BandW3-1401SD
No current priceFs75 Hz −25%, better
Qts0.31 −9%
Vas1.6 L +35%, worse
BL5.6 T·m +8%
Xmax3.5 mm +600%, better
Sensitivity84.7 dB −1.6
Tang BandW4-1337SD
No current priceFs70 Hz −30%, better
Qts0.37 +9%
Vas4.9 L +298%, worse
BL5.4 T·m +4%
Xmax3 mm +500%, better
Sensitivity87.3 dB +1
