2-inch LF driver · SPX series · 25 mm voice coil · 15 W
Monacor SPX-20M 8Ω
8 Ω · 3–22000 Hz
£34.33
20%LTT · Ships from Germany · All 3 offers
- Fs
- 157Hz
- Xmax
- 0.5mm
- SPL
- 84dB
- Pe
- 15W
- BL
- 4.5T·m
- Vd
- 0.65cm³
- Qts
- 0.42
- Vas
- 0.2L

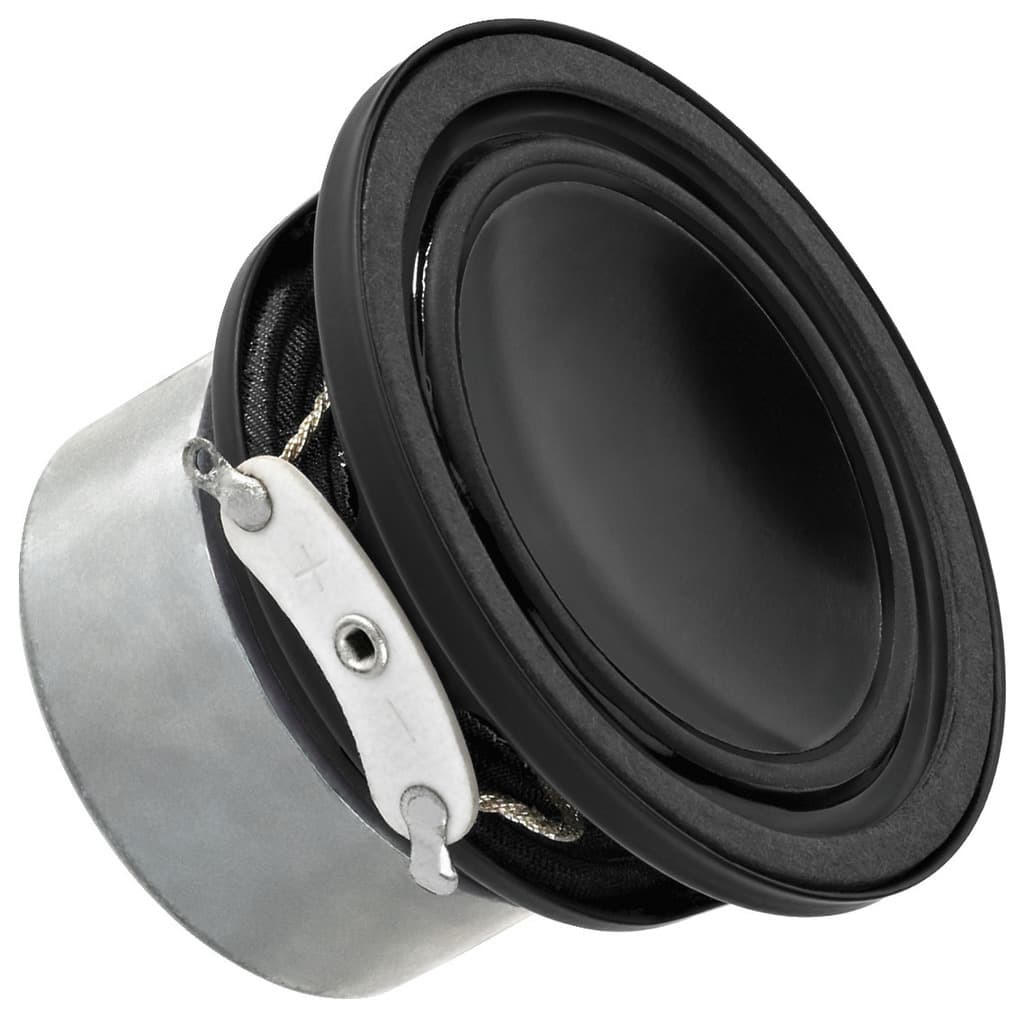

Monacor SPX-20M is a 2-inch 8 ohm LF driver rated at 15 W RMS. The validated T/S data includes Fs 157 Hz, Qts 0.42, Vas 0.2 L, Xmax 0.5 mm, sensitivity 84.3 dB, plus 1 cm³ Vd and 341 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £34.33.
The published T/S values agree with each other
Thiele/Small
- Fs
- 157Hz
- Qts
- 0.42
- Qes
- 0.46
- Qms
- 4.5
- Vas
- 0.2L
- Re
- 6.9Ω
- Le
- 0.13mH
Motor and cone
- BL
- 4.5T·m
- Sd
- 13cm²
- Mms
- 1g
- Xmax
- 0.5mm
- Vd †
- 0.65cm³
- Voice coil
- 25mm
Power and response
- Sensitivity †
- 84.3dB
- Manufacturer sensitivity
- 87dB
- Power
- 15W
- Impedance
- 8Ω
- Range
- 3–22000Hz
- EBP †
- 341 · Leans vented

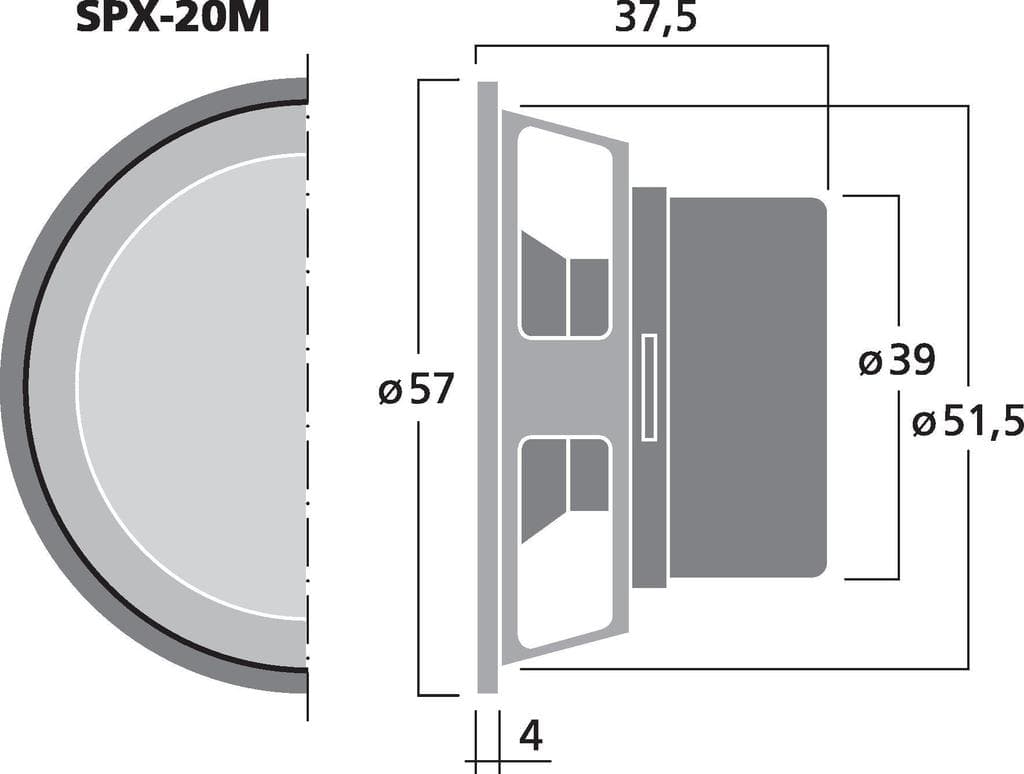

Size and mounting
- Diameter
- 57mm
- Cutout
- 51.5mm
- Depth
- 37.5mm
- Weight
- 0.17kg
Other published values
- Cms
- 0.76mm/N
- Power Peak
- 30
Other dimensions
- Mounting Depth
- 33.5
Sensitivity shows 84.3 dB, calculated from the T/S values. Monacor publishes 87.0 dB, 2.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
LF · Primary · 2″
- BL
- 4.5T·m
- Fs
- 157Hz
- Le
- 0.13mH
- Re
- 6.9Ω
- Sd
- 13cm²
- Cms
- 0.76mm/N
- Mms
- 1g
- Qes
- 0.46
- Qms
- 4.5
- Qts
- 0.42
- SPL
- 84.3dB
- Vas
- 0.2L
- Xmax
- 0.5mm
- Power
- 15W
- Impedance
- 8Ω
- Power Peak
- 30
- Sensitivity
- 87dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 84.3dB
- High limit
- 22000Hz
- Manufacturer sensitivity
- 87dB
- Voice coil
- 25mm
- Weight
- 0.17kg
- Diameter
- 57mm
- Depth
- 37.5mm
- Mounting Depth
- 33.5
- Cutout
- 51.5mm
