Fountek FR59EXE 4Ω
4 Ω · 139–20000 Hz
No price for delivery to the UK
- Fs
- 139Hz
- Xmax
- 1.4mm
- SPL
- 81dB
- Pe
- 10W
- BL
- 3.0T·m
- Vd
- 2cm³
- Qts
- 0.36
- Vas
- 0.15L

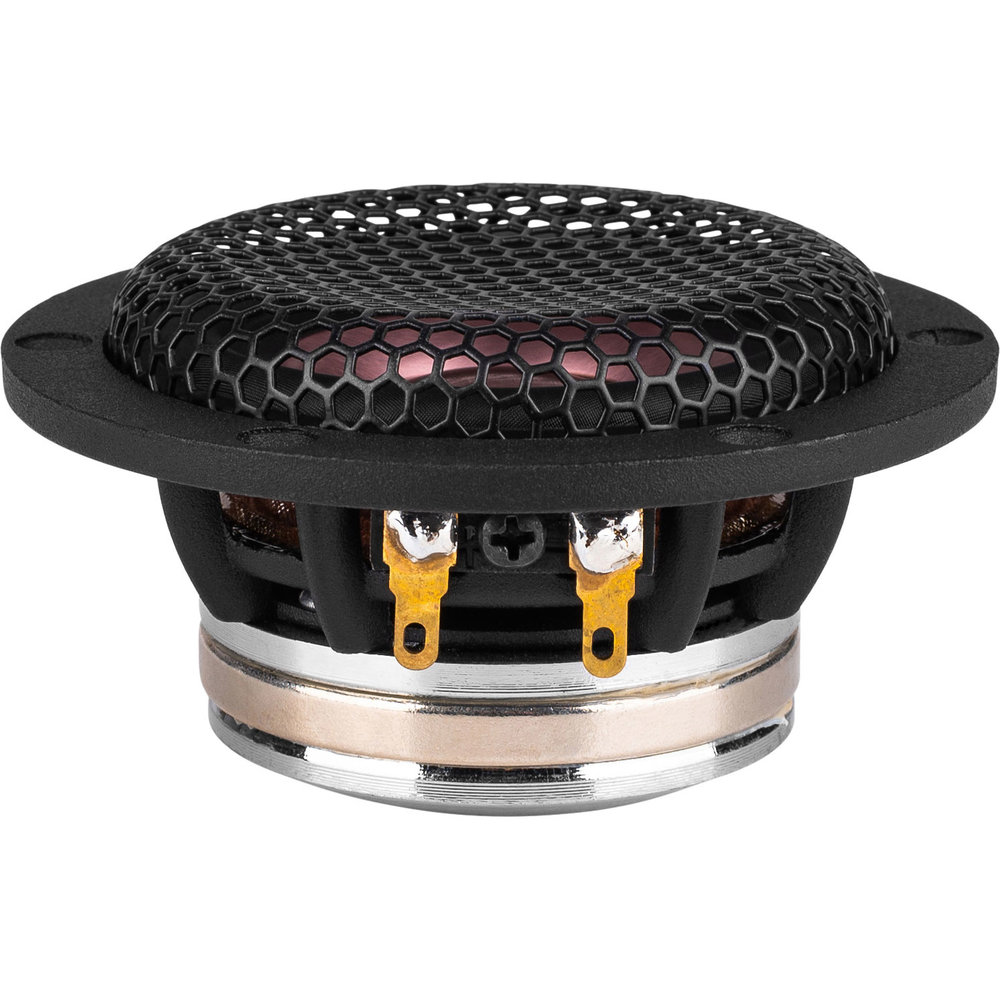

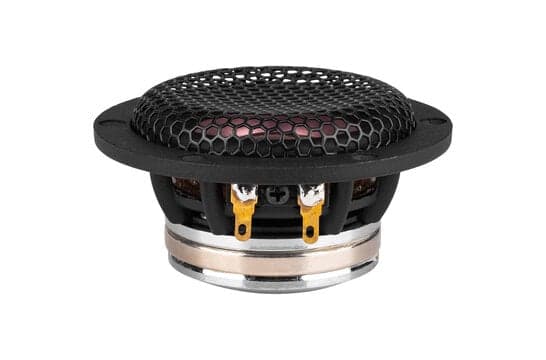

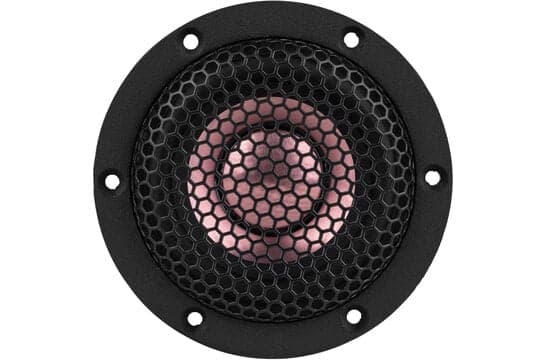

Fountek FR59EXE is a 2-inch 4 ohm LF driver rated at 10 W RMS. The validated T/S data includes Fs 139 Hz, Qts 0.36, Vas 0.15 L, Xmax 1.4 mm, sensitivity 81.3 dB, plus 2 cm³ Vd and 290 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 139Hz
- Qts
- 0.36
- Qes
- 0.48
- Qms
- 1.5
- Vas
- 0.15L
- Re
- 3.9Ω
Motor and cone
- BL
- 3.0T·m
- Sd
- 17cm²
- Mms
- 1g
- Xmax
- 1.4mm
- Vd †
- 2cm³
- Voice coil
- 20mm
Power and response
- Sensitivity †
- 81.3dB
- Manufacturer sensitivity
- 88.6dB
- Power
- 10W
- Impedance
- 4Ω
- Range
- 139–20000Hz
- EBP †
- 290 · Leans vented
Size and mounting
- Diameter
- 73.7mm
- Cutout
- 58.4mm
- Bolt circle
- 66.0mm
- Depth
- 32.0mm
Other published values
- Cms
- 1.03mm/N
- Power Peak
- 20
Sensitivity shows 81.3 dB, calculated from the T/S values. Fountek publishes 88.6 dB, 7.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Fountek lists
LF · Primary · 2″
- BL
- 3.0T·m
- Fs
- 139Hz
- Re
- 3.9Ω
- Sd
- 17cm²
- Cms
- 1.03mm/N
- Mms
- 1g
- Qes
- 0.48
- Qms
- 1.5
- Qts
- 0.36
- SPL
- 88.6dB
- Vas
- 0.15L
- Xmax
- 1.4mm
- Power
- 10W
- Impedance
- 4Ω
- Power Peak
- 20
- Sensitivity
- 88.6dB
- Low limit
- 139Hz
- High limit
- 20000Hz
- Voice coil
- 20mm
- Diameter
- 73.7mm
- Depth
- 32.0mm
- Cutout
- 58.4mm
- Bolt circle
- 66.0mm
