Overview
LF Driver
Tang Band

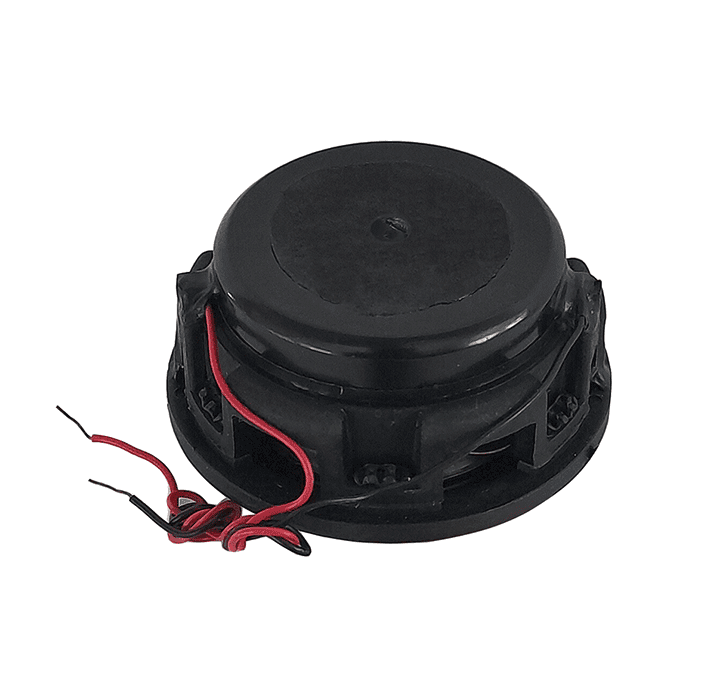

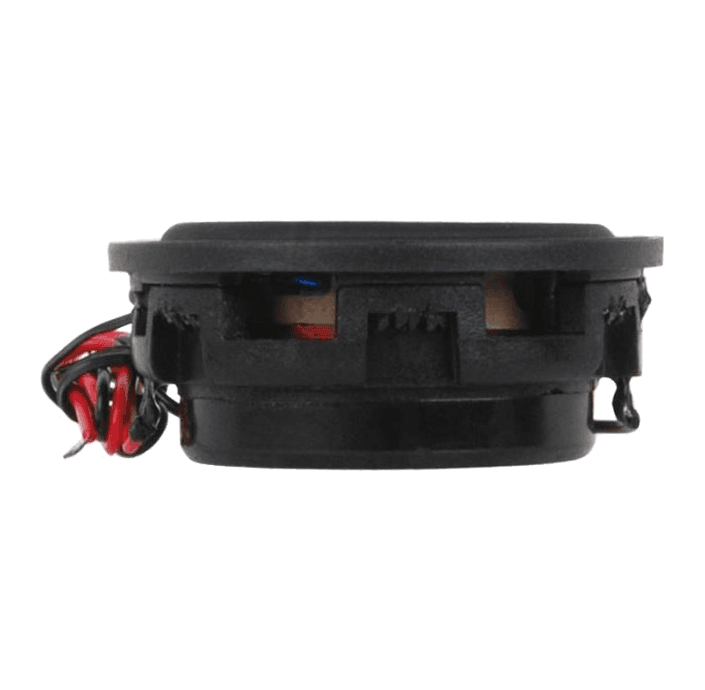

Tang Band W1-1828SA
Tang Band W1-1828SA is a 1" 4 ohm LF driver rated at 4W RMS. The validated T/S data includes Fs 120Hz, Qts 0.33, Vas 0.2L, Xmax 1.3mm, sensitivity 82.3dB, plus 1cm³ Vd and 324 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
1"
Impedance
4Ω
RMS Power
4W
Sensitivity
82.3dB
81.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
324
Vented alignment
Vd
1cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,296 selected pixels of 2,689 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,614 selected pixels of 2,614
T/S Parameters
Valid
Fs120Hz
Qts0.33
Qes0.37
Qms3.1
Vas0.2L
Re3.5Ω
Le0.05mH
BL2.6Tm
Sd9cm²
Mms1g
Xmax1.3mm
SPL82dB
Power4W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
