Overview
LF Driver
Tang Band

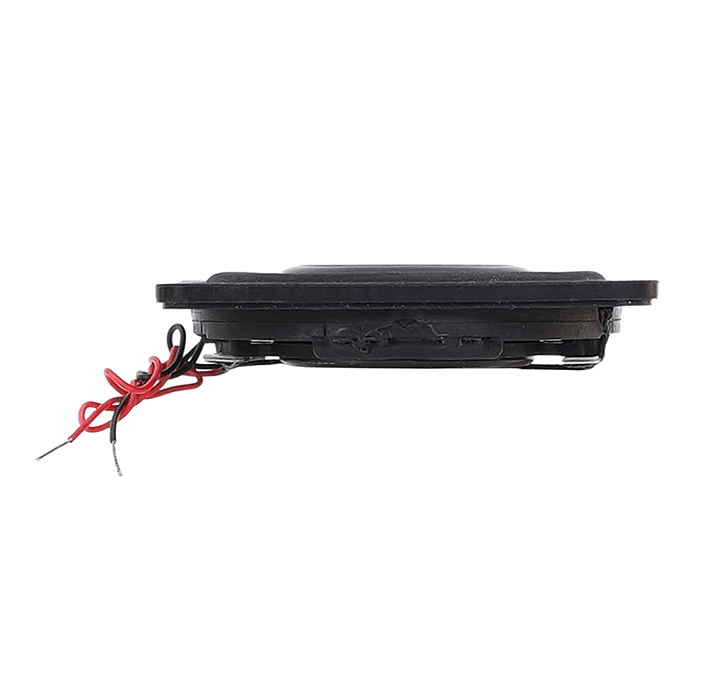

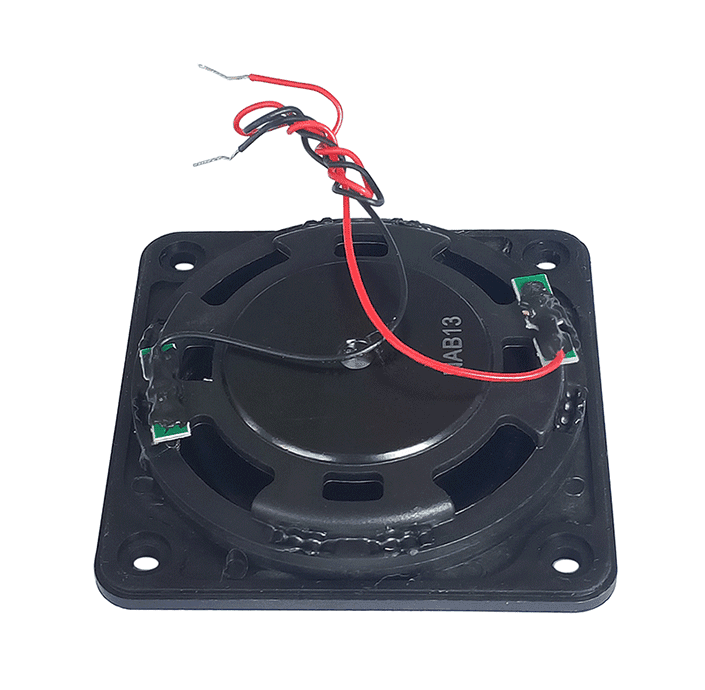

Tang Band W2-2360S
Tang Band W2-2360S is a 2" 4 ohm LF driver rated at 6W RMS. The validated T/S data includes Fs 170Hz, Qts 0.32, Vas 0.3L, Xmax 1mm, sensitivity 86.9dB, plus 2cm³ Vd and 395 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
4Ω
RMS Power
6W
Sensitivity
86.9dB
EBP
395
Vented alignment
Vd
2cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,866 selected pixels of 2,542 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,038 selected pixels of 2,038
T/S Parameters
Valid
Fs170Hz
Qts0.32
Qes0.43
Qms1.2
Vas0.3L
Re3.6Ω
Le0.01mH
BL3.0Tm
Sd15cm²
Mms1g
Xmax1.0mm
SPL87dB
Power6W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
