Overview
LF Driver
Tang Band

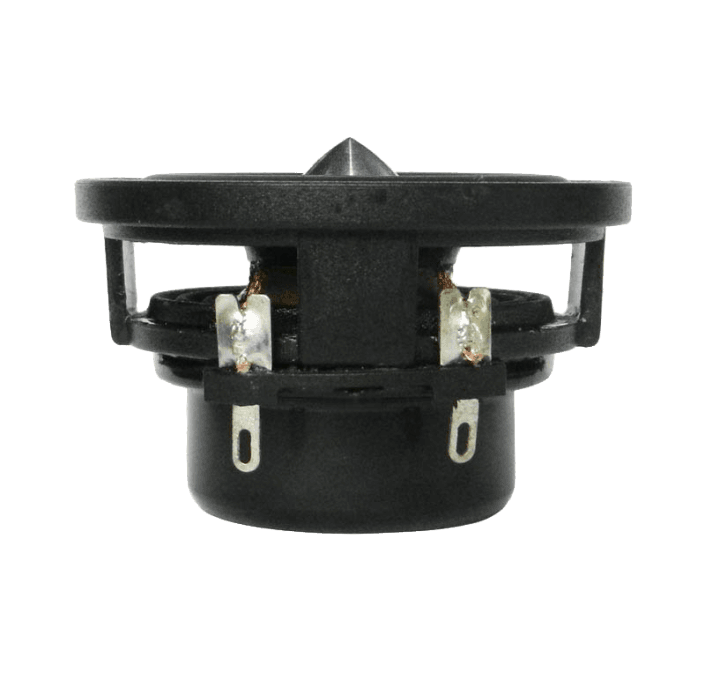

Tang Band W2-780SD
Tang Band W2-780SD is a 2" 8 ohm LF driver rated at 8W RMS. The validated T/S data includes Fs 155Hz, Qts 0.35, Vas 0.3L, Xmax 1mm, sensitivity 86.5dB, plus 1cm³ Vd and 397 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
8Ω
RMS Power
8W
Sensitivity
86.5dB
EBP
397
Vented alignment
Vd
1cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,047 selected pixels of 2,276 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,895 selected pixels of 2,895
T/S Parameters
Valid
Fs155Hz
Qts0.35
Qes0.39
Qms3.9
Vas0.3L
Re6.0Ω
Le0.04mH
BL3.6Tm
Sd13cm²
Mms1g
Xmax1.0mm
SPL87dB
Power8W
Impedance8Ω
