LF Driver
Tang Band

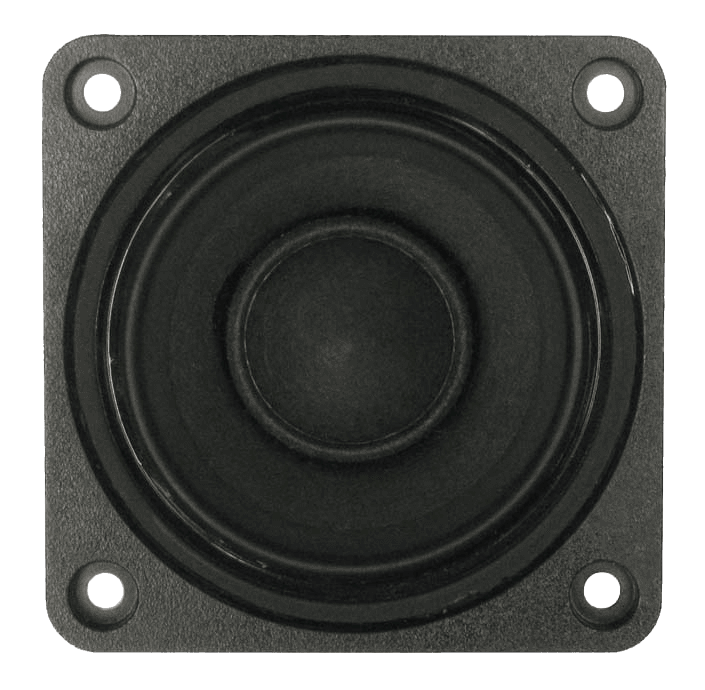

Tang Band W2-852SH
Tang Band W2-852SH is a 2" 4 ohm LF driver rated at 8W RMS. The validated T/S data includes Fs 160Hz, Qts 0.29, Vas 0.3L, Xmax 1mm, sensitivity 86.5dB, plus 1cm³ Vd and 432 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
4Ω
RMS Power
8W
Sensitivity
86.5dB
EBP
432
Vented alignment
Vd
1cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,031 selected pixels of 1,626 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,988 selected pixels of 2,988
T/S Parameters
Valid
Fs160Hz
Qts0.29
Qes0.37
Qms1.5
Vas0.3L
Re3.6Ω
Le0.03mH
BL3.0Tm
Sd13cm²
Mms1g
Xmax1.0mm
SPL87dB
Power8W
Impedance4Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
