Visaton FRS 5 X 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFRS series
Visaton
Visaton FRS 5 X
Rated 4.9 out of 59 ratings at 1 shopVisaton FRS 5 X is a 2" 8 ohm LF driver rated at 5W RMS. The validated T/S data includes Fs 190Hz, Qts 0.70, Vas 0.2L, Xmax 2mm, sensitivity 84.6dB, plus 3cm³ Vd and 216 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
8Ω
RMS Power
5W
Sensitivity
84.6dB
86.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
216
Vented alignment
Vd
3cm³
T/S Parameters
Valid
Fs190Hz
Qts0.70
Qes0.88
Qms3.5
Vas0.2L
Re7.7Ω
BL2.7Tm
Sd13cm²
Mms1g
Xmax2.0mm
SPL85dB
Power5W
Impedance8Ω
F Low120Hz
F High20000Hz
Voice Coil14mm
Pricing & availability
Price definitionsVendor offers
1 vendorParts Express
Updated 28 Sept 2026· 8Ω
Source: ex VAT
£11.62
inc VAT
Back order
Reviews
How ratings workRated 4.9 out of 5from 9 ratings at 1 shop
- Read reviews on Parts ExpressParts ExpressRated 4.9 out of 5 · 9 ratings · Checked 28 Sep 2026
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.1kg
Diameter50.0mm
Cutout Diameter46.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
FRS 5 X
2"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
6 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Visaton
FRS 5 X - 8 Ohm
2"
Xmax2mm0%
Qts0.70%
BL2.7Tm0%
Vas0.2L0%
Qes0.880%
100%
Similarity
Visaton

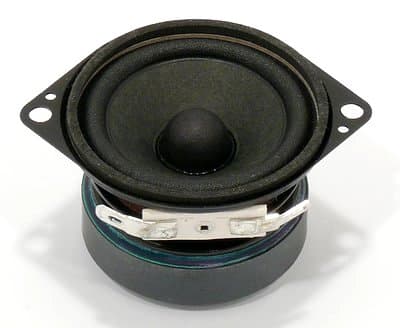

FRS 5 XTS
2"
Xmax2mm0%
Qts0.70%
BL2.7Tm0%
Vas0.2L0%
Qes0.880%
100%
Similarity
Visaton
FRS 5 XTS - 8 Ohm
2"
Xmax2mm0%
Qts0.70%
BL2.7Tm0%
Vas0.2L0%
Qes0.880%
73%
Similarity
£12.43
FaitalPRO
2FE24
2.5"
Xmax1.9mm-5%
Qts0.69-1%
BL3.2Tm+20%
Vas0.2L-13%
Qes0.85-3%
64%
Similarity
£18.06
Lavoce
FSN021.02
2"
Xmax2.3mm+15%
Qts0.68-3%
BL3.4Tm+29%
Vas0.3L+30%
Qes0.77-12%
63%
Similarity
£14.46
Lavoce
FSN020.71F
2"
Xmax2.4mm+20%
Qts0.82+17%
BL3.2Tm+21%
Vas0.2L-4%
Qes0.95+8%
