3-inch LF driver · Ellipticor series
Scanspeak D8404/552000 4Ω
4 Ω
£2,647.56
2.3%Willys-Hifi · All 2 offers
- Fs
- 280Hz
- Xmax
- 2.4mm
- SPL
- 91dB
- Pe
- –
- BL
- 6.1T·m
- Vd
- 14cm³
- Qts
- 0.69
- Vas
- 0.27L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
on-axis frequency response
Frequency response
240 plotted pointsSource file SHA-256 6886c723db17…Medium confidence290 selected pixels of 290 - Trace datasheet-response-trace-poc/v2
free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 6886c723db17…Medium confidence1,139 selected pixels of 1,139

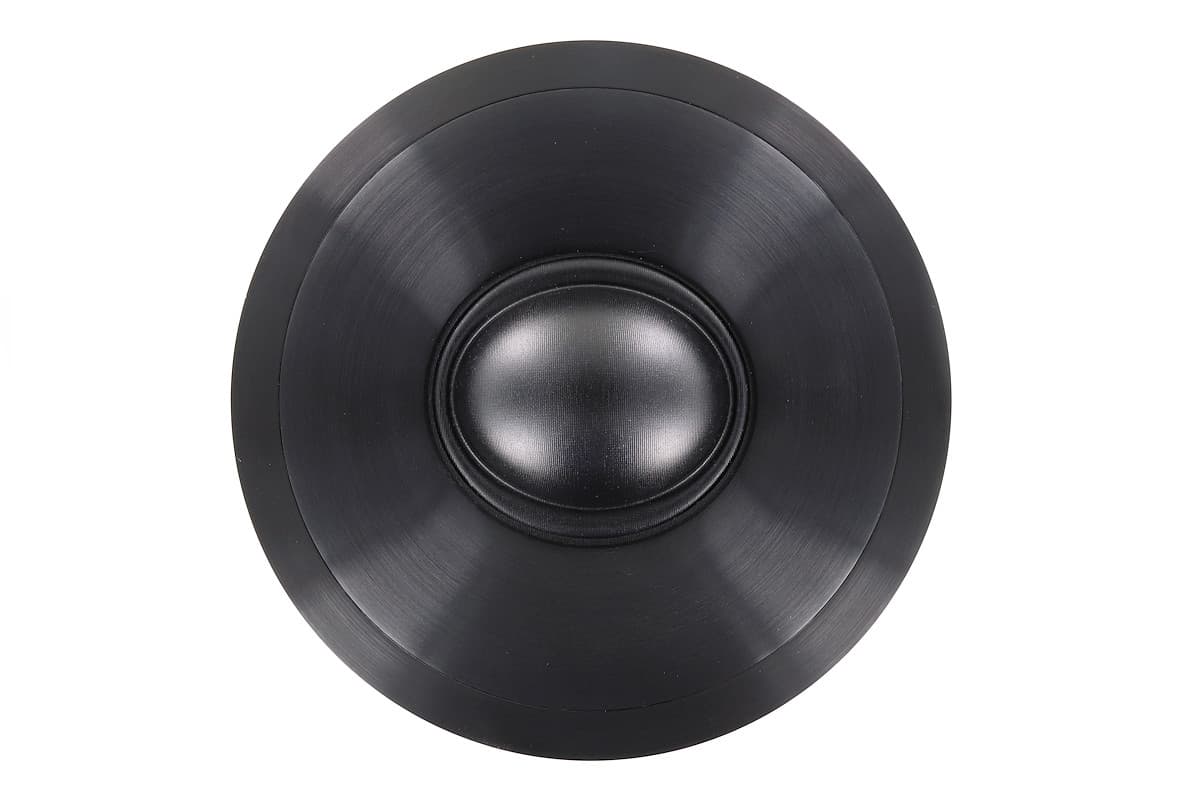

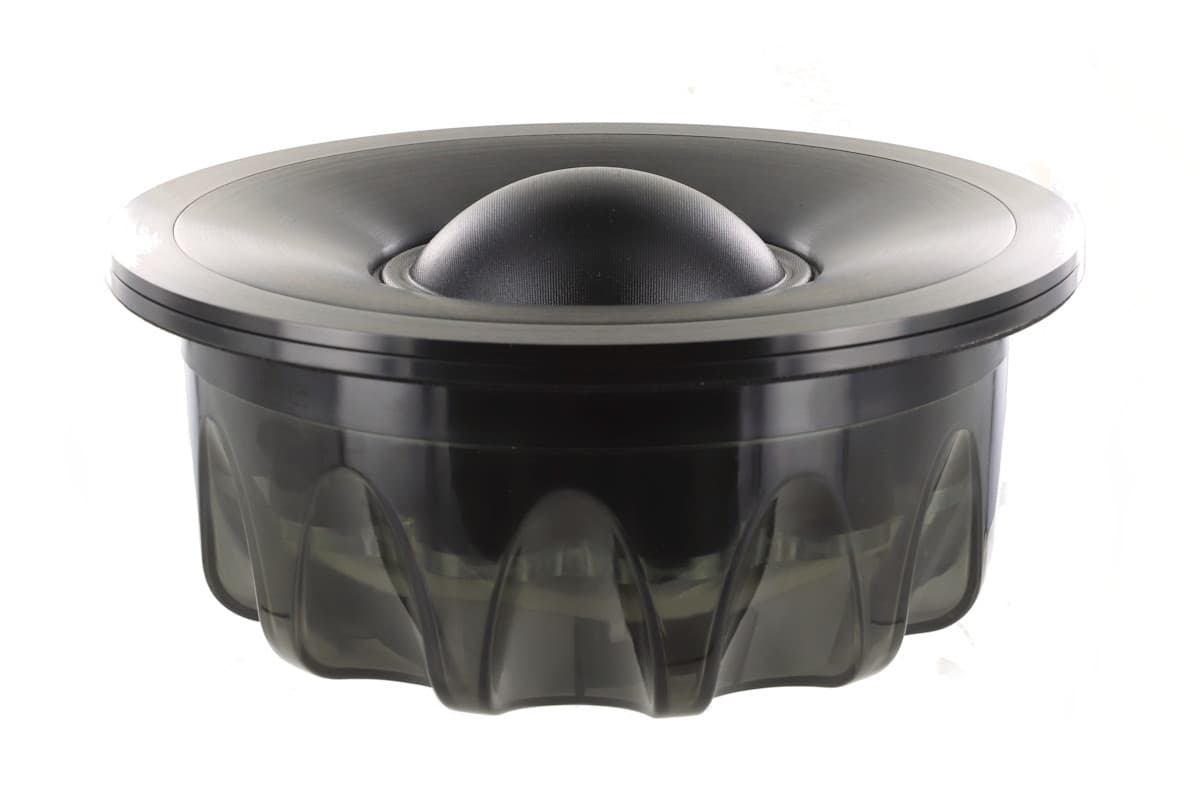

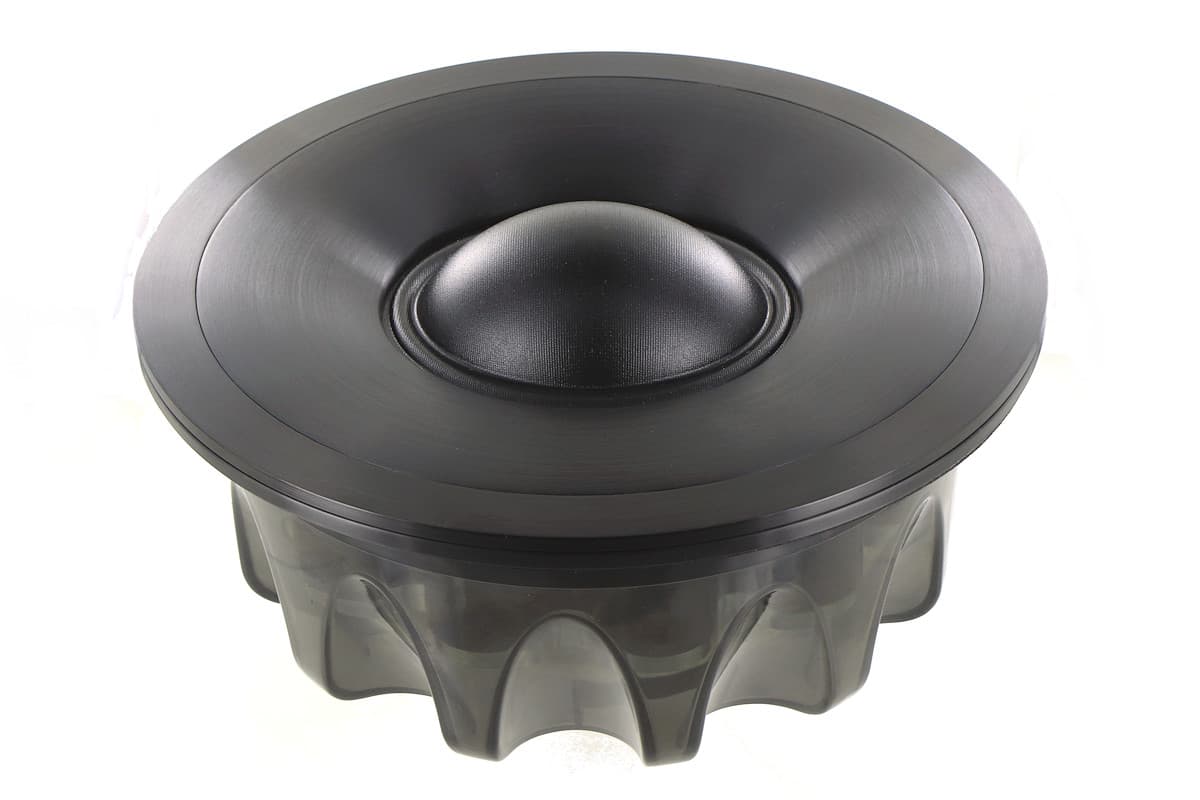

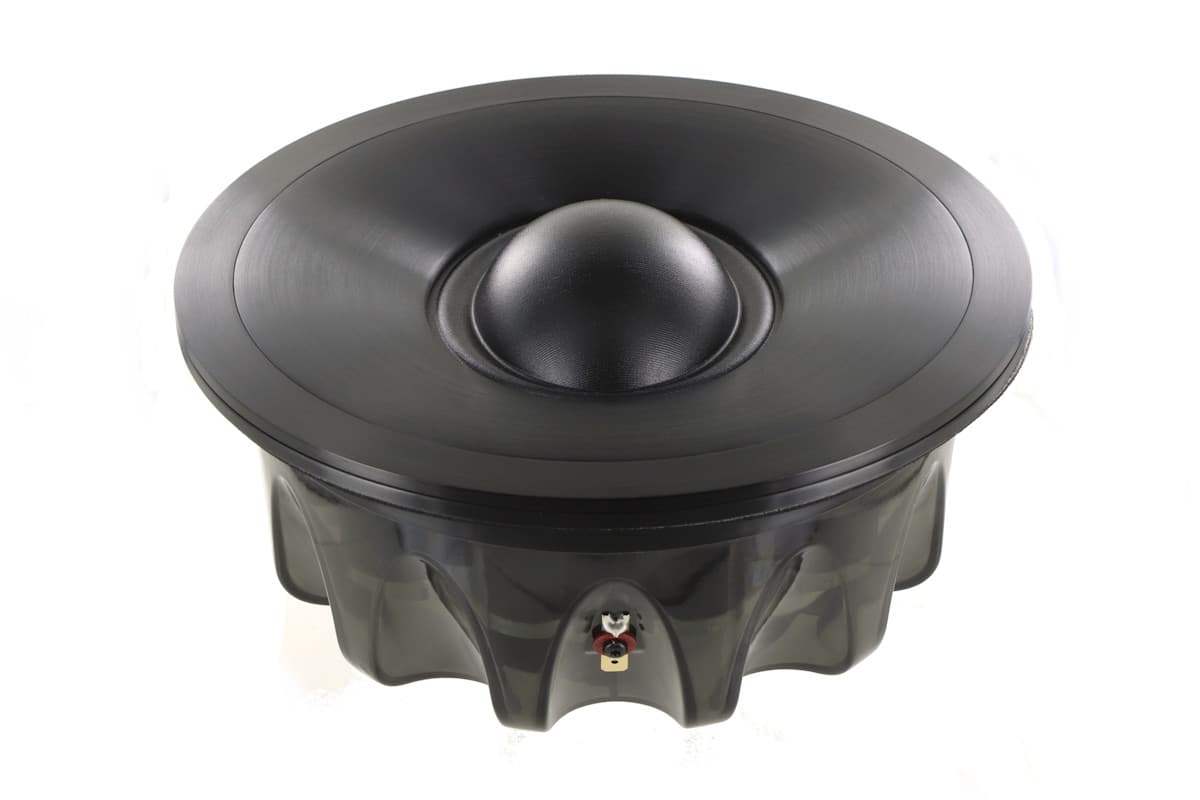

Scanspeak D8404/552000 is a 3-inch 4 ohm LF driver. The validated T/S data includes Fs 280 Hz, Qts 0.69, Vas 0.27 L, Xmax 2.4 mm, sensitivity 90.6 dB, plus 14 cm³ Vd and 337 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £2428.16.
The published T/S values agree with each other
Thiele/Small
- Fs
- 280Hz
- Qts
- 0.69
- Qes
- 0.83
- Qms
- 3.9
- Vas
- 0.27L
- Re
- 3Ω
- Le
- 0.04mH
Motor and cone
- BL
- 6.1T·m
- Sd
- 58cm²
- Mms
- 6g
- Xmax
- 2.4mm
- Vd †
- 14cm³
Power and response
- Sensitivity †
- 90.6dB
- Manufacturer sensitivity
- 92dB
- Impedance
- 4Ω
- Min. impedance
- 4.1Ω
- EBP †
- 337 · Leans vented
Size and mounting
- Diameter
- 84mm
Other published values
- Cms
- 0.06mm/N
- Rms
- 2.60kg/s
- Xmech
- 5
- Power Peak
- 220
Sensitivity shows 90.6 dB, calculated from the T/S values. Scanspeak publishes 92.0 dB, 1.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Scanspeak lists
LF · Primary · 3″
- BL
- 6.1T·m
- Fs
- 280Hz
- Le
- 0.04mH
- Re
- 3Ω
- Sd
- 58cm²
- Cms
- 0.06mm/N
- Mms
- 6g
- Qes
- 0.83
- Qms
- 3.9
- Qts
- 0.69
- Rms
- 2.60kg/s
- SPL
- 90.6dB
- Vas
- 0.27L
- Xmax
- 2.4mm
- Xmech
- 5
- Impedance
- 4Ω
- Power Peak
- 220
- Sensitivity
- 92dB
- Calculated sensitivity †
- 90.6dB
- Manufacturer sensitivity
- 92dB
- Min. impedance
- 4.1Ω
- Diameter
- 84mm
