LF DriverFSN021 series
Lavoce
Lavoce FSN021.02
Lavoce FSN021.02 is a 2" 8 ohm LF driver rated at 25W RMS. The validated T/S data includes Fs 151Hz, Qts 0.68, Vas 0.3L, Xmax 2.3mm, sensitivity 83.3dB, plus 4cm³ Vd and 196 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £18.06.
Size
2"
Impedance
8Ω
RMS Power
25W
Sensitivity
83.3dB
85.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
196
Vented alignment
Vd
4cm³

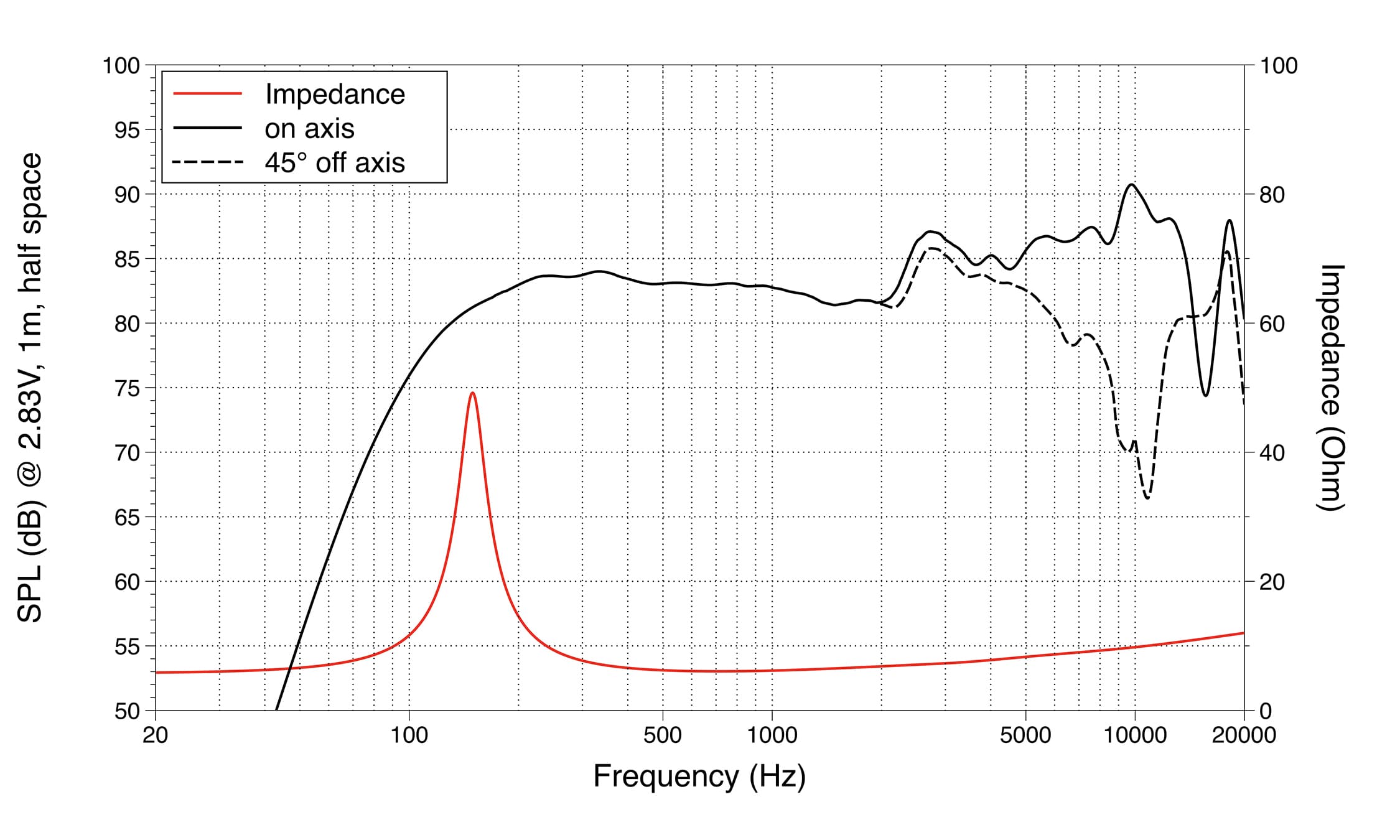

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs151Hz
Qts0.68
Qes0.77
Qms5.5
Vas0.3L
Re5.7Ω
Le0.10mH
BL3.4Tm
Sd18cm²
Mms2g
Xmax2.3mm
SPL83dB
Power25W
Impedance8Ω
Min Impedance6.0Ω
F Low140Hz
F High20000Hz
Voice Coil25mm
Pricing & availability
Price definitionsPrice movement
Best current price
£18.06
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

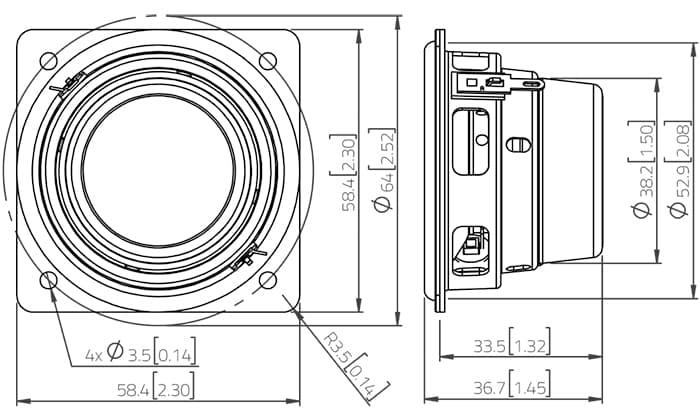

Dimensions & Physical
Weight0.1kg
