LF DriverDiscovery series
Scanspeak

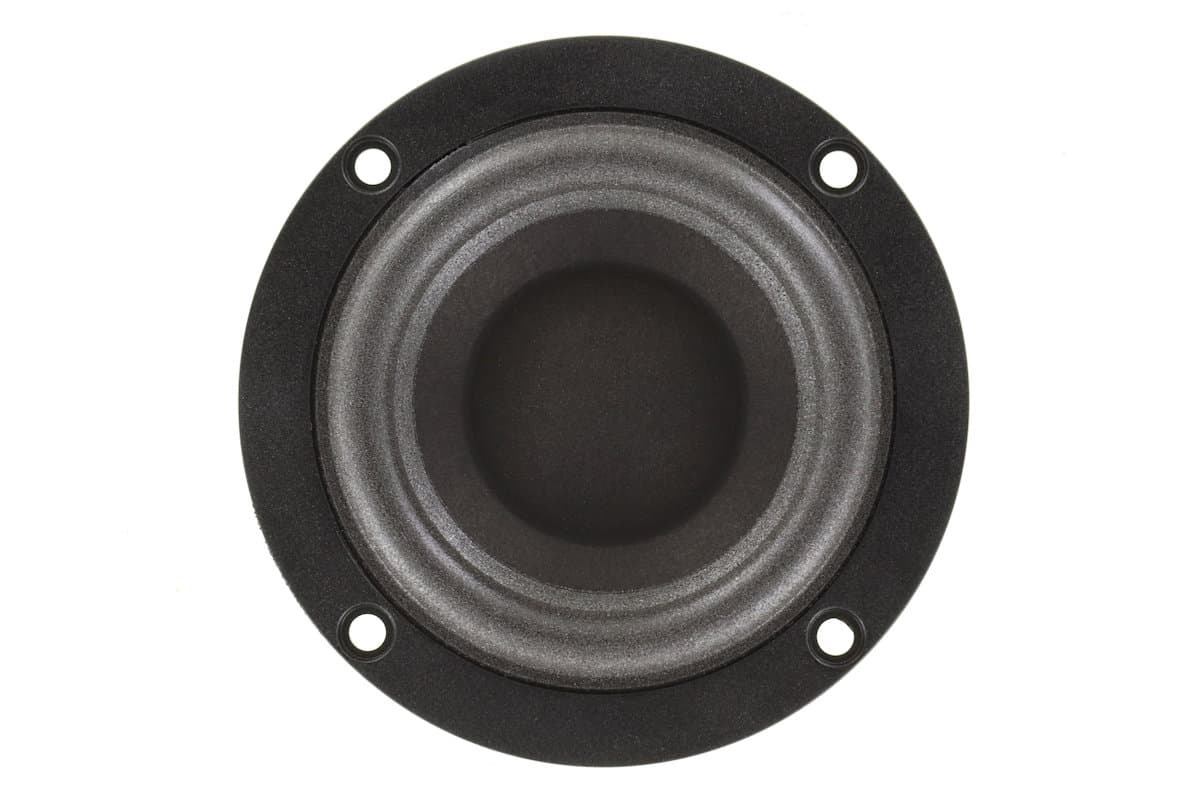

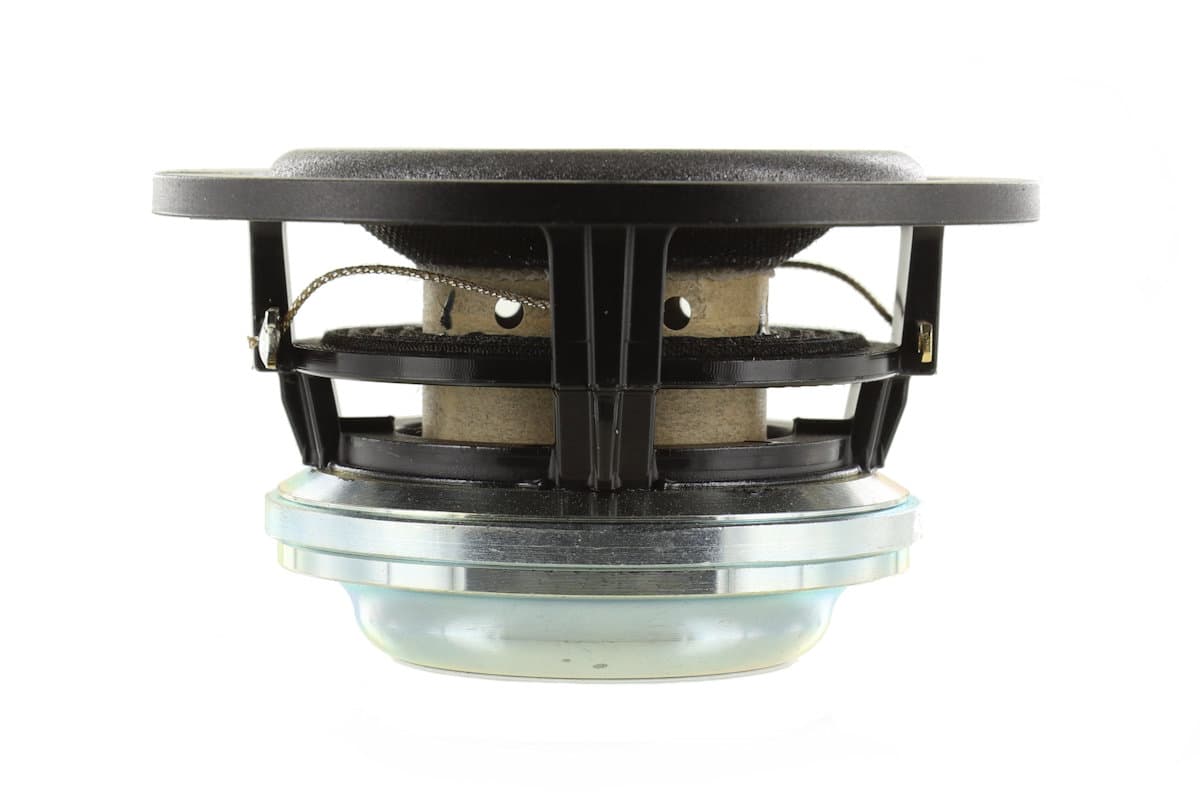

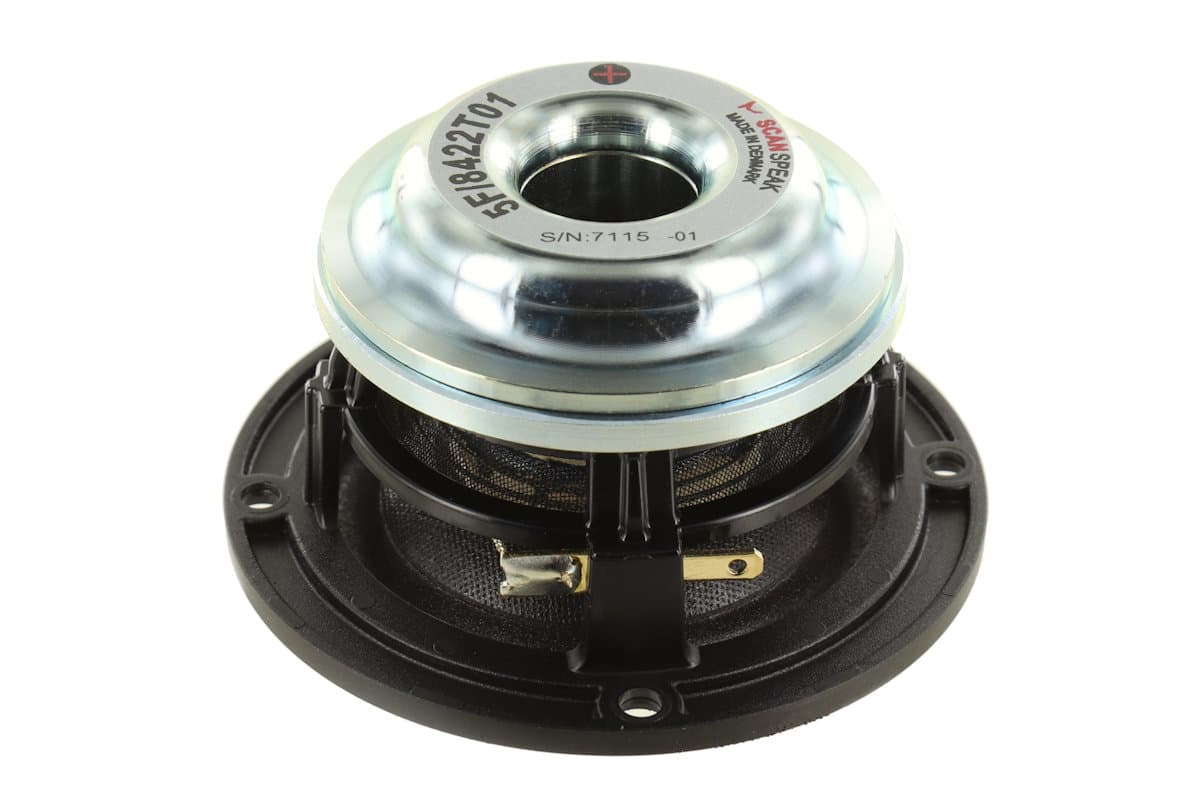

Scanspeak 5F/8422T01
Scanspeak 5F/8422T01 is a 2" 8 ohm LF driver rated at 10W RMS. The validated T/S data includes Fs 93Hz, Qts 0.61, Vas 0.5L, Xmax 2mm, sensitivity 79.7dB, plus 3cm³ Vd and 135 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £61.95.
Size
2"
Impedance
8Ω
RMS Power
10W
Sensitivity
79.7dB
EBP
135
Vented alignment
Vd
3cm³
T/S Parameters
Valid
Fs93Hz
Qts0.61
Qes0.69
Qms5.2
Vas0.5L
Re6.0Ω
Le0.07mH
BL3.1Tm
Sd15cm²
Mms2g
Xmax2.0mm
SPL80dB
Power10W
Impedance8Ω
Min Impedance6.1Ω
Voice Coil26mm
Pricing & availability
Price definitionsPrice movement
Best current price
£61.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter50.0mm
