Overview
LF Driver
Tang Band

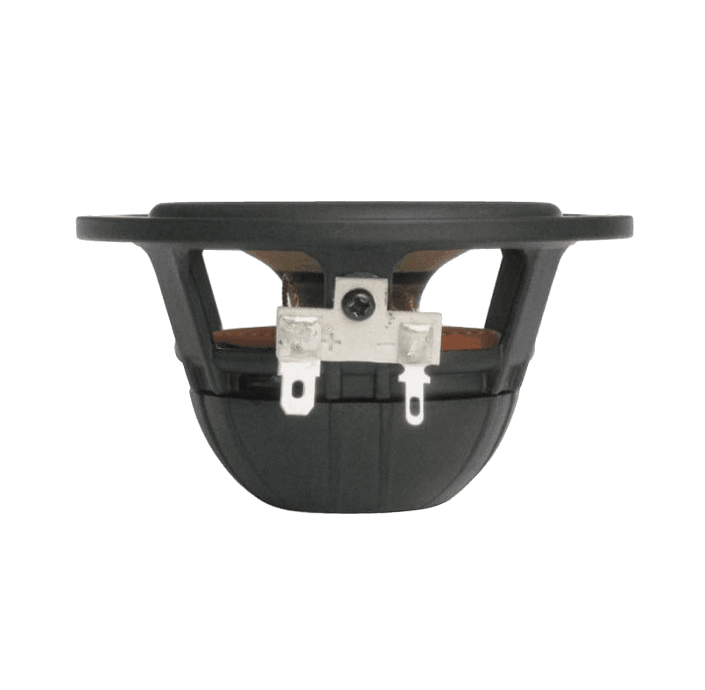

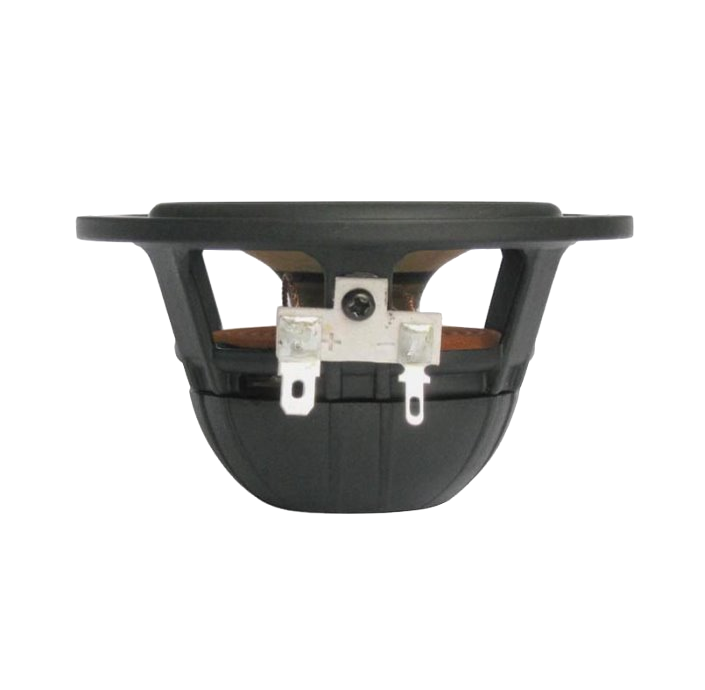

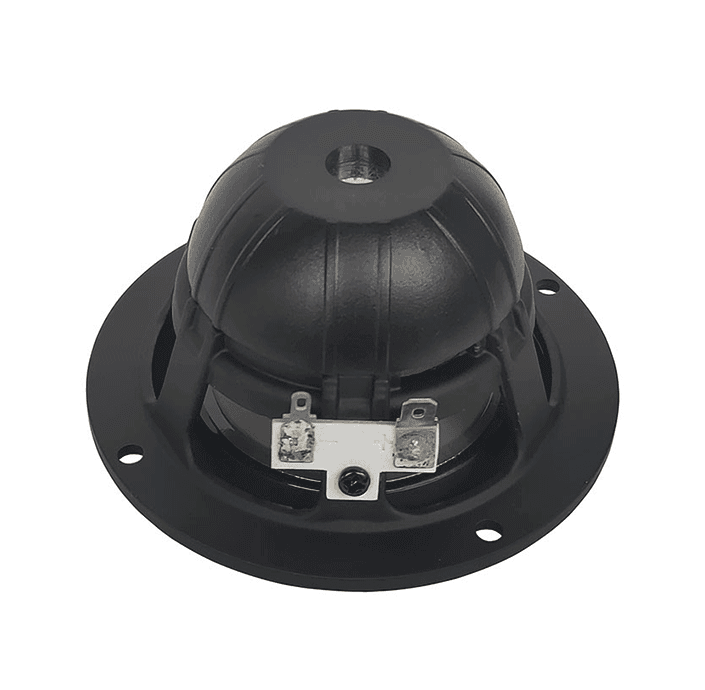

Tang Band W3-881SJ
Tang Band W3-881SJ is a 3" 8 ohm LF driver rated at 12W RMS. The validated T/S data includes Fs 100Hz, Qts 0.58, Vas 2.3L, Xmax 0.2mm, sensitivity 87.7dB, plus 1cm³ Vd and 161 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
12W
Sensitivity
87.7dB
86.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
161
Vented alignment
Vd
1cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,192 selected pixels of 1,964 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,996 selected pixels of 2,996
T/S Parameters
Valid
Fs100Hz
Qts0.58
Qes0.62
Qms7.2
Vas2.3L
Re6.6Ω
Le0.08mH
BL3.3Tm
Sd32cm²
Mms2g
Xmax0.2mm
SPL88dB
Power12W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
