Overview
LF Driver
Tang Band

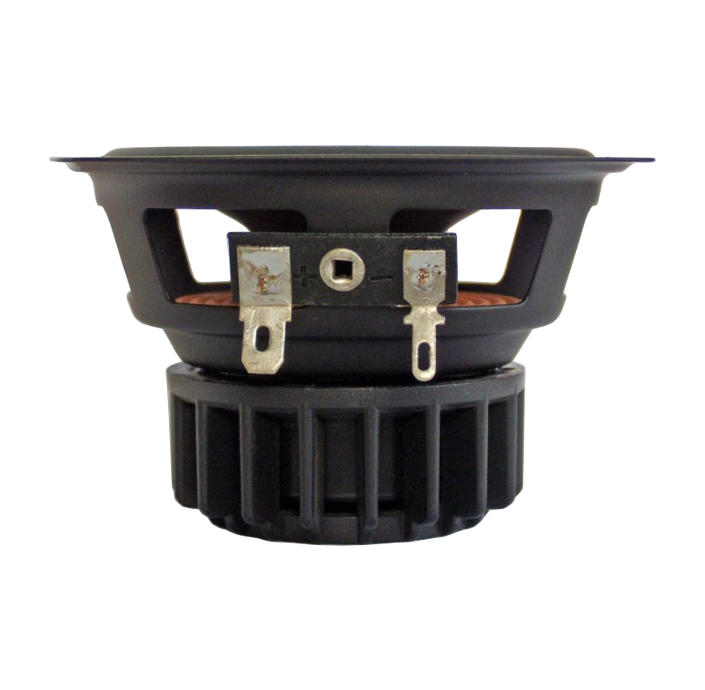

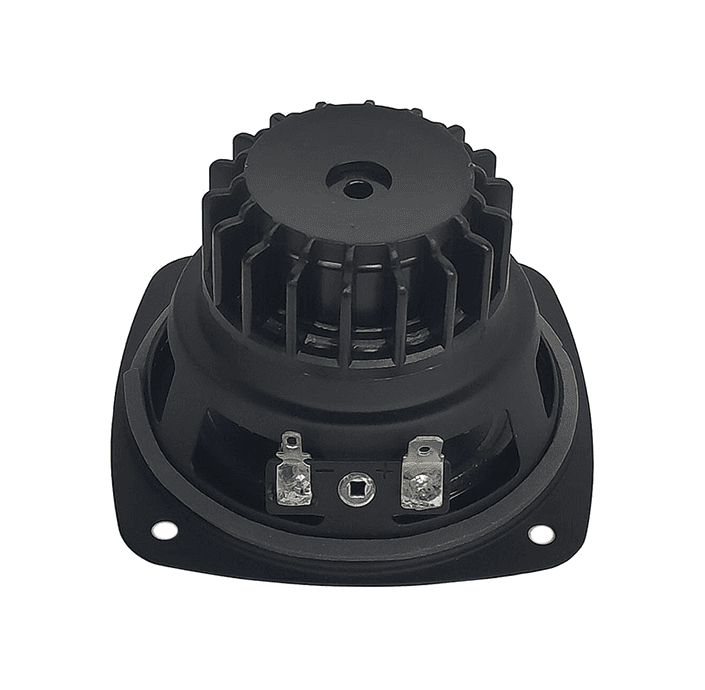

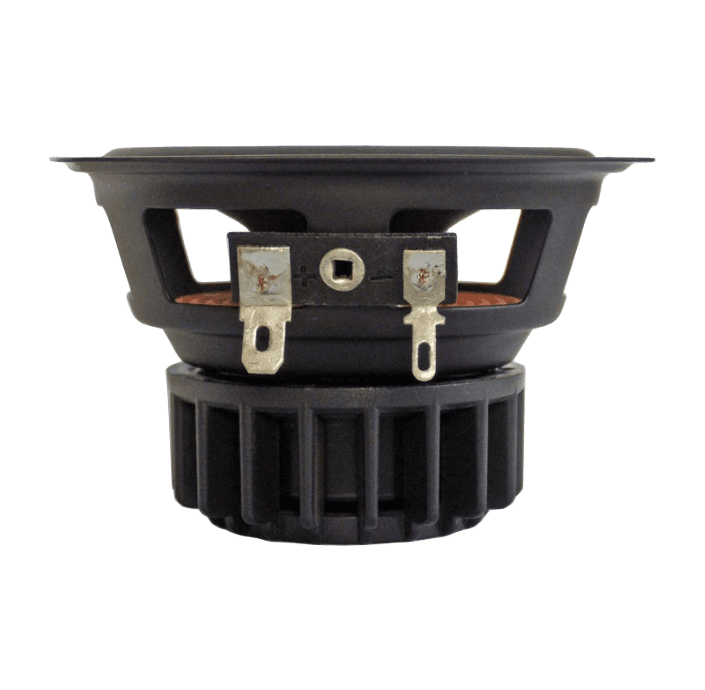

Tang Band W3-1053SC
Tang Band W3-1053SC is a 3" 8 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 100Hz, Qts 0.52, Vas 1.8L, Xmax 0.8mm, sensitivity 87dB, plus 2cm³ Vd and 179 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
15W
Sensitivity
87.0dB
EBP
179
Vented alignment
Vd
2cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl178 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
178 plotted pointsMedium confidence632 selected pixels of 2,396
T/S Parameters
Valid
Fs100Hz
Qts0.52
Qes0.56
Qms7.2
Vas1.8L
Re6.0Ω
Le0.07mH
BL3.7Tm
Sd32cm²
Mms2g
Xmax0.8mm
SPL87dB
Power15W
Impedance8Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
