- Fs
- 110Hz
- Xmax
- 0.5mm
- SPL
- 87dB
- Pe
- 12W
- BL
- 3.5T·m
- Vd
- 2cm³
- Qts
- 0.55
- Vas
- 2L

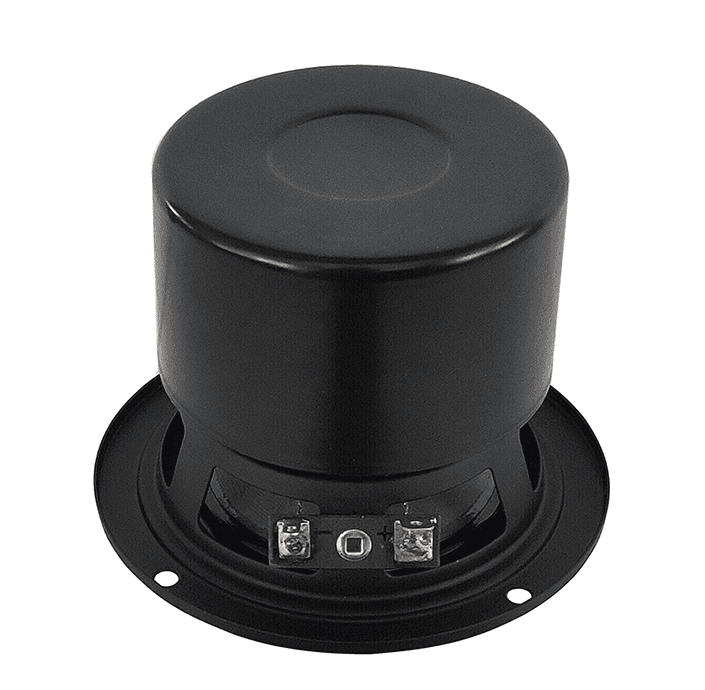

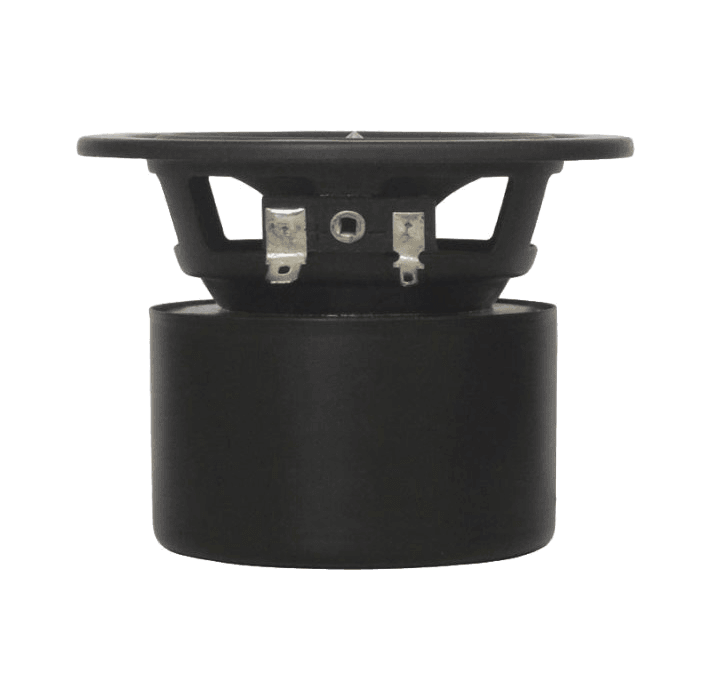

Tang Band W3-1319SA is a 3-inch 8 ohm LF driver rated at 12 W RMS. The validated T/S data includes Fs 110 Hz, Qts 0.55, Vas 1.8 L, Xmax 0.5 mm, sensitivity 87.4 dB, plus 2 cm³ Vd and 162 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 110Hz
- Qts
- 0.55
- Qes
- 0.68
- Qms
- 3.0
- Vas
- 1.8L
- Re
- 6.6Ω
- Le
- 0.012mH
Motor and cone
- BL
- 3.5T·m
- Sd
- 32cm²
- Mms
- 2g
- Xmax
- 0.5mm
- Vd †
- 2cm³
Power and response
- Sensitivity †
- 87.4dB
- Manufacturer sensitivity
- 86dB
- Power
- 12W
- Impedance
- 8Ω
- EBP †
- 162 · Leans vented
Other published values
- Power Peak
- 25
Sensitivity shows 87.4 dB, calculated from the T/S values. Tang Band publishes 86.0 dB, 1.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Tang Band lists
LF · Primary · 3″
- BL
- 3.5T·m
- Fs
- 110Hz
- Le
- 0.012mH
- Re
- 6.6Ω
- Sd
- 32cm²
- Mms
- 2g
- Qes
- 0.68
- Qms
- 3.0
- Qts
- 0.55
- SPL
- 87.4dB
- Vas
- 1.8L
- Xmax
- 0.5mm
- Power
- 12W
- Impedance
- 8Ω
- Power Peak
- 25
- Sensitivity
- 86dB
- Calculated sensitivity †
- 87.4dB
- Manufacturer sensitivity
- 86dB
02
