FaitalPRO3FE25
£8.68 · 88% less, betterFs110 Hz –
Qts0.66 +5%
Vas1.3 L −28%, better
BL3.6 T·m −13%, worse
Xmax1.8 mm −17%, worse
Sensitivity85.4 dB −2, worse
3.5-inch LF driver · B series · 26 mm voice coil · 30 W

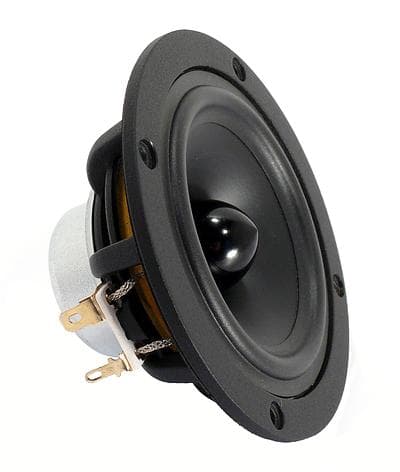

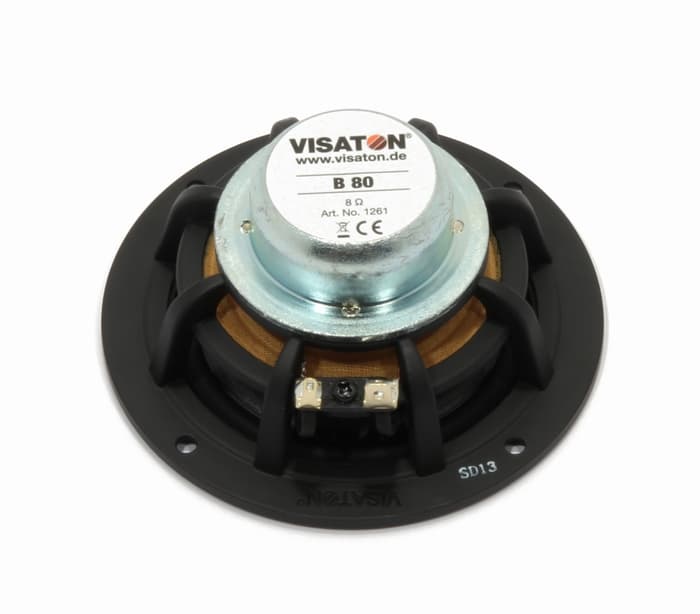

Visaton B 80 8Ω
8 Ω · 80–20000 Hz
£86.68
SteadyImpact Audio · In stock · All 4 offers
- Fs
- 110Hz
- Xmax
- 2.2mm
- SPL
- 87dB
- Pe
- 30W
- BL
- 4.2T·m
- Vd
- 8cm³
- Qts
- 0.63
- Vas
- 2L

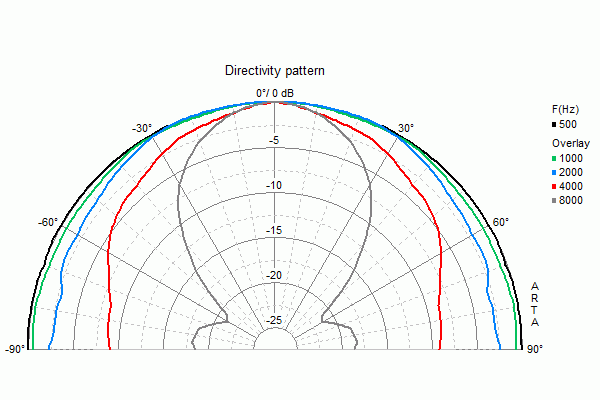

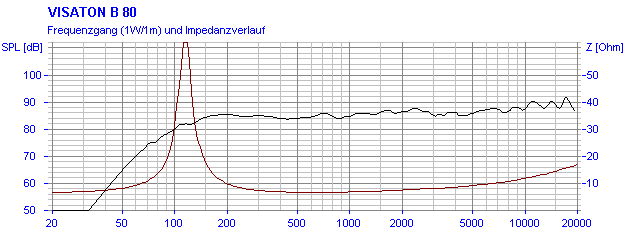

Published graphs
Visaton B 80 is a 3.5-inch 8 ohm LF driver rated at 30 W RMS. The validated T/S data includes Fs 110 Hz, Qts 0.63, Vas 1.8 L, Xmax 2.2 mm, sensitivity 87.4 dB, plus 8 cm³ Vd and 159 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £73.18.
The published T/S values agree with each other
Thiele/Small
- Fs
- 110Hz
- Qts
- 0.63
- Qes
- 0.69
- Qms
- 6.5
- Vas
- 1.8L
- Re
- 6.6Ω
Motor and cone
- BL
- 4.2T·m
- Sd
- 39cm²
- Mms
- 3g
- Xmax
- 2.2mm
- Vd †
- 8cm³
- Voice coil
- 26mm
- Flux density
- 1.17T
Power and response
- Sensitivity †
- 87.4dB
- Manufacturer sensitivity
- 85dB
- Power
- 30W
- Impedance
- 8Ω
- Range
- 80–20000Hz
- EBP †
- 159 · Leans vented
Size and mounting
- Diameter
- 80mm
- Cutout
- 89mm
- Weight
- 0.3kg
Other published values
- Power Peak
- 50
Sensitivity shows 87.4 dB, calculated from the T/S values. Visaton publishes 85.0 dB, 2.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary · 3.5″
- BL
- 4.2T·m
- Fs
- 110Hz
- Re
- 6.6Ω
- Sd
- 39cm²
- Mms
- 3g
- Qes
- 0.69
- Qms
- 6.5
- Qts
- 0.63
- SPL
- 87.4dB
- Vas
- 1.8L
- Xmax
- 2.2mm
- Power
- 30W
- Impedance
- 8Ω
- Power Peak
- 50
- Flux density
- 1.17T
- Sensitivity
- 85dB
- Low limit
- 80Hz
- Calculated sensitivity †
- 87.4dB
- High limit
- 20000Hz
- Manufacturer sensitivity
- 85dB
- Voice coil
- 26mm
- Weight
- 0.3kg
- Diameter
- 80mm
- Cutout
- 89mm
02
Compare
Same-size drivers, compared with the B 80. Clear differences are green when better and red when worse.
This driverB 80
Best price
£73.18
Fs
110 Hz
Qts
0.63
Vas
1.8 L
BL
4.2 T·m
Xmax
2.2 mm
Sensitivity
87.4 dB
Power
30 W
Dayton AudioPC83-8
£13.25 · 82% less, betterFs82 Hz −25%, better
Qts0.63 –
Vas1.7 L −6%
BL3.5 T·m −16%, worse
Xmax2 mm −9%
Sensitivity83 dB −4.4, worse
VisatonSL 87 FE
£15.24 · 79% less, betterFs120 Hz +9%
Qts0.65 +3%
Vas1.5 L −15%, better
BL4.0 T·m −5%
Xmax1.8 mm −20%, worse
Sensitivity87.1 dB –
Sica3.5 F 1 CS
£16.84 · 77% less, betterFs107 Hz –
Qts0.57 −10%
Vas1.4 L −22%, better
BL4.2 T·m –
Xmax1.5 mm −32%, worse
Sensitivity86.4 dB −1
Sica3.5 H 1 CS
£18.62 · 75% less, betterFs85 Hz −23%, better
Qts0.53 −16%, better
Vas1.8 L –
BL4.8 T·m +16%, better
Xmax2.5 mm +14%, better
Sensitivity84.9 dB −2.5, worse
PeerlessGBS-115N25AL01-04
£21.58 · 71% less, betterFs90 Hz −18%, better
Qts0.63 –
Vas1.8 L –
BL4.5 T·m +9%
Xmax4.8 mm +120%, better
Sensitivity84.3 dB −3.1, worse
FaitalPRO4FE32
£21.94 · 70% less, betterFs100 Hz −9%
Qts0.61 −3%
Vas2.3 L +28%, worse
BL4.8 T·m +16%, better
Xmax2.7 mm +24%, better
Sensitivity87.2 dB –
CIAREPA087
£24.55 · 66% less, betterFs74 Hz −33%, better
Qts0.62 –
Vas2.2 L +22%, worse
BL3.5 T·m −17%, worse
Xmax2 mm −9%
Sensitivity83 dB −4.4, worse
Dayton AudioND90-8
£26.16 · 64% less, betterFs71 Hz −36%, better
Qts0.65 +3%
Vas1.8 L –
BL4.3 T·m +4%
Xmax4 mm +82%, better
Sensitivity81.2 dB −6.2, worse
Sica4 L 1 SL
£26.16 · 64% less, betterFs108 Hz –
Qts0.63 –
Vas1.2 L −33%, better
BL5.1 T·m +23%, better
Xmax2.4 mm +9%
Sensitivity84.9 dB −2.5, worse
Dayton AudioRS100P-8
£30.28 · 59% less, betterFs96 Hz −13%, better
Qts0.54 −14%, better
Vas1.8 L –
BL4.0 T·m −5%
Xmax3.7 mm +68%, better
Sensitivity85.5 dB −1.9
Dayton AudioRS100-8
£30.28 · 59% less, betterFs92 Hz −16%, better
Qts0.58 −8%
Vas1.4 L −21%, better
BL4.2 T·m –
Xmax3.5 mm +59%, better
Sensitivity83.7 dB −3.7, worse
Dayton AudioND105-4
£30.81 · 58% less, betterFs79 Hz −28%, better
Qts0.61 −3%
Vas2.0 L +9%
BL4.5 T·m +9%
Xmax4 mm +82%, better
Sensitivity83.7 dB −3.7, worse
Tang BandW3-871SC
£31.23 · 57% less, betterFs110 Hz –
Qts0.59 −6%
Vas1.6 L −8%
BL3.5 T·m −15%, worse
Xmax0.5 mm −77%, worse
Sensitivity86.9 dB −0.5
CIAREPA100
£31.32 · 57% less, betterFs100 Hz −9%
Qts0.59 −6%
Vas2.5 L +39%, worse
BL4.4 T·m +6%
Xmax2.5 mm +14%, better
Sensitivity87.6 dB –
WavecorWF095WA02
£41.65 · 43% less, betterFs86 Hz −22%, better
Qts0.62 –
Vas1.6 L −11%, better
BL3.6 T·m −13%, worse
Xmax2.7 mm +23%, better
Sensitivity83.7 dB −3.7, worse
WavecorWF095WA01
£41.65 · 43% less, betterFs89 Hz −19%, better
Qts0.64 –
Vas1.5 L −17%, better
BL3 T·m −28%, worse
Xmax2.7 mm +23%, better
Sensitivity83.8 dB −3.6, worse
CelestionAN3510
£42.31 · 42% less, betterFs113 Hz +3%
Qts0.65 –
Vas1.9 L +4%
BL4.6 T·m +10%
Xmax2.3 mm –
Sensitivity87.7 dB –
EminenceALPHA 4-4
£42.77 · 42% less, betterFs120 Hz +9%
Qts0.63 –
Vas1.8 L –
BL4.1 T·m –
Xmax2.6 mm +18%, better
Sensitivity88.4 dB +1
Scanspeak10F/8414G10
£73.39 · Same priceFs100 Hz −9%
Qts0.51 −19%, better
Vas1.6 L −13%, better
BL4.3 T·m +4%
Xmax2.3 mm +5%
Sensitivity85.9 dB −1.5
MonacorAN3510/8
No current priceFs113 Hz +3%
Qts0.65 –
Vas1.9 L +6%
BL4.6 T·m +10%
Xmax2.3 mm –
Sensitivity87.8 dB –
REDCATT35FR-2
No current priceFs128 Hz +16%, worse
Qts0.63 –
Vas1.1 L −37%, better
BL4.8 T·m +16%, better
Xmax2.4 mm +7%
Sensitivity87.5 dB –
Dayton AudioDMA90-8
No current priceFs94 Hz −14%, better
Qts0.57 −10%
Vas1.7 L −6%
BL4.7 T·m +13%, better
Xmax2.5 mm +14%, better
Sensitivity84.9 dB −2.5, worse
LavoceFSN030.71
No current priceFs134 Hz +22%, worse
Qts0.67 +6%
Vas1.0 L −42%, better
BL3.8 T·m −8%
Xmax2.1 mm −5%
Sensitivity87.3 dB –
WavecorWF118OM02
No current priceFs61 Hz −45%, better
Qts0.65 +3%
Vas5.5 L +206%, worse
BL4.2 T·m –
Xmax1.9 mm −14%, worse
Sensitivity84.5 dB −2.9, worse
Tang BandW3-532SQ
No current priceFs100 Hz −9%
Qts0.61 −3%
Vas1.7 L −7%
BL3.5 T·m −15%, worse
Xmax0.2 mm −91%, worse
Sensitivity85.9 dB −1.5
PeerlessSDS-100F25CP18-04
No current priceFs84 Hz −24%, better
Qts0.59 −6%
Vas1.9 L +3%
BL4.5 T·m +8%
Xmax5.0 mm +130%, better
Sensitivity84.3 dB −3.1, worse
Tang BandW3-582A
No current priceFs100 Hz −9%
Qts0.60 −5%
Vas1.8 L –
BL3.6 T·m −14%, worse
Xmax0.25 mm −89%, worse
Sensitivity86.2 dB −1.2
Tang BandW3-1319SA
No current priceFs110 Hz –
Qts0.55 −13%, better
Vas1.8 L –
BL3.5 T·m −15%, worse
Xmax0.5 mm −77%, worse
Sensitivity87.4 dB –
No photo
Tang BandW3-582SC
No current priceFs100 Hz −9%
Qts0.65 +3%
Vas1.6 L −14%, better
BL3.5 T·m −16%, worse
Xmax0.2 mm −91%, worse
Sensitivity85.2 dB −2.2, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
- SoundImports5.0 out of 54 ratings · Checked 8 Oct 2026Read reviews on SoundImports
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Impact Audio | £86.68, the lowest price | In stock | Visit shop at Impact Audio | |
SoundImports Import VAT and duty may apply | £73.18 | 15 in stock | Visit shop at SoundImports | |
RumoH Import VAT and duty may apply | £78.95 | In stock | Visit shop at RumoH |
Best price over time
Tracked since 29 Jul
