FaitalPRO3FE25
£8.68 · 43% less, betterFs110 Hz −8%
Qts0.66 –
Vas1.3 L −15%, better
BL3.6 T·m −9%
Xmax1.8 mm +5%
Sensitivity85.4 dB −1.7
3.5-inch LF driver · SL series · 20 mm voice coil · 10 W
Visaton SL 87 FE 8Ω
8 Ω · 75–18000 Hz
£16.62
6.1%Parts Express · 4 in stock · Ships from United States · All 5 offers
- Fs
- 120Hz
- Xmax
- 1.8mm
- SPL
- 87dB
- Pe
- 10W
- BL
- 4.0T·m
- Vd
- 7cm³
- Qts
- 0.65
- Vas
- 2L

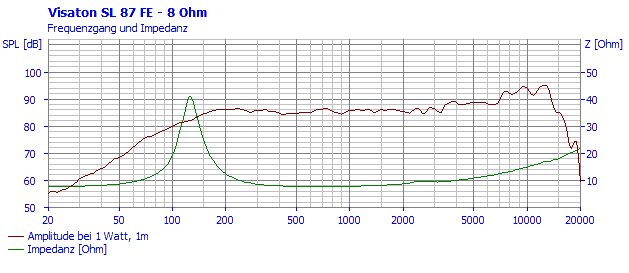

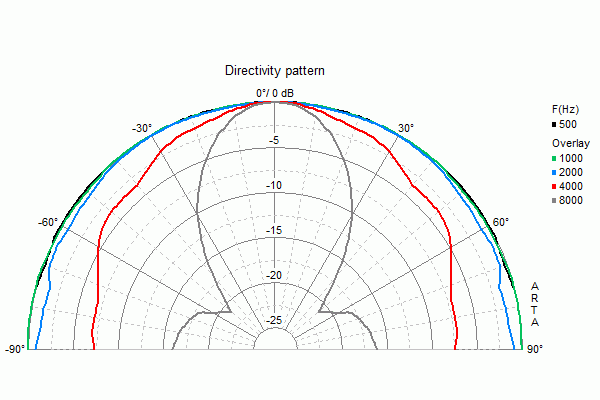

Published graphs
Visaton SL 87 FE is a 3.5-inch 8 ohm LF driver rated at 10 W RMS. The validated T/S data includes Fs 120 Hz, Qts 0.65, Vas 1.5 L, Xmax 1.8 mm, sensitivity 87.1 dB, plus 7 cm³ Vd and 146 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £15.24.
The published T/S values agree with each other
Thiele/Small
- Fs
- 120Hz
- Qts
- 0.65
- Qes
- 0.82
- Qms
- 3.3
- Vas
- 1.5L
- Re
- 7.2Ω
Motor and cone
- BL
- 4.0T·m
- Sd
- 37cm²
- Mms
- 2g
- Xmax Derived
- 1.8mm
- Vd †
- 7cm³
- Voice coil
- 20mm
Power and response
- Sensitivity †
- 87.1dB
- Manufacturer sensitivity
- 87dB
- Power
- 10W
- Impedance
- 8Ω
- Range
- 75–18000Hz
- EBP †
- 146 · Leans vented
Size and mounting
- Diameter
- 85mm
- Cutout
- 80mm
- Weight
- 0.5kg
Other published values
- Power Peak
- 15
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary · 3.5″
- BL
- 4.0T·m
- Fs
- 120Hz
- Re
- 7.2Ω
- Sd
- 37cm²
- Mms
- 2g
- Qes
- 0.82
- Qms
- 3.3
- Qts
- 0.65
- SPL
- 87.1dB
- Vas
- 1.5L
- Xmax
- 1.8mm
- Power
- 10W
- Impedance
- 8Ω
- Power Peak
- 15
- Sensitivity
- 87dB
- Low limit
- 75Hz
- Calculated sensitivity †
- 87.1dB
- High limit
- 18000Hz
- Manufacturer sensitivity
- 87dB
- Voice coil
- 20mm
- Weight
- 0.5kg
- Diameter
- 85mm
- Cutout
- 80mm
02
Compare
Same-size drivers, compared with the SL 87 FE. Clear differences are green when better and red when worse.
This driverSL 87 FE
Best price
£15.24
Fs
120 Hz
Qts
0.65
Vas
1.5 L
BL
4.0 T·m
Xmax
1.8 mm
Sensitivity
87.1 dB
Power
10 W
Dayton AudioPC68-8
£11.38 · 25% less, betterFs109 Hz −9%
Qts0.64 –
Vas1.3 L −15%, better
BL3.3 T·m −16%, worse
Xmax2 mm +14%, better
Sensitivity84.8 dB −2.3, worse
GRS4SMP-8
£12.11 · 21% less, betterFs63 Hz −48%, better
Qts0.65 –
Vas4 L +161%, worse
BL4.2 T·m +6%
Xmax4 mm +129%, better
Sensitivity82.8 dB −4.3, worse
Dayton AudioPC83-8
£13.25 · 13% less, betterFs82 Hz −32%, better
Qts0.63 −3%
Vas1.7 L +11%, worse
BL3.5 T·m −11%, worse
Xmax2 mm +14%, better
Sensitivity83 dB −4.1, worse
Sica3.5 F 1 CS
£16.84 · 11% more, worseFs107 Hz −11%, better
Qts0.57 −12%, better
Vas1.4 L −8%
BL4.2 T·m +6%
Xmax1.5 mm −14%, worse
Sensitivity86.4 dB −0.7
MonacorSPM-116/8
£16.84 · 11% more, worseFs75 Hz −38%, better
Qts0.57 −12%, better
Vas4.5 L +194%, worse
BL4.2 T·m +6%
Xmax1.5 mm −14%, worse
Sensitivity85.7 dB −1.4
MonacorSPX-31M
£19.47 · 28% more, worseFs110 Hz −8%
Qts0.58 −11%, better
Vas1.3 L −15%, better
BL3.6 T·m −8%
Xmax1.1 mm −37%, worse
Sensitivity86 dB −1.1
PeerlessGBS-115N25AL01-04
£21.58 · 42% more, worseFs90 Hz −25%, better
Qts0.63 −3%
Vas1.8 L +17%, worse
BL4.5 T·m +15%, better
Xmax4.8 mm +177%, better
Sensitivity84.3 dB −2.8, worse
Dayton AudioPS95-8
£22.35 · 47% more, worseFs120 Hz –
Qts0.72 +11%, worse
Vas0.9 L −39%, better
BL3.8 T·m −3%
Xmax2.5 mm +43%, better
Sensitivity85.1 dB −2, worse
Sica3.5 L 1 SL
£23.62 · 55% more, worseFs108 Hz −10%, better
Qts0.57 −12%, better
Vas1.4 L −8%
BL4.3 T·m +8%
Xmax1.5 mm −14%, worse
Sensitivity86.6 dB −0.5
PeerlessHDS-P830992
£24.42 · 60% more, worseFs120 Hz –
Qts0.66 –
Vas1.4 L −9%
BL4.8 T·m +23%, better
Xmax5.0 mm +185%, better
Sensitivity86.1 dB −1
CIAREPA087
£24.55 · 61% more, worseFs74 Hz −38%, better
Qts0.62 −5%
Vas2.2 L +44%, worse
BL3.5 T·m −13%, worse
Xmax2 mm +14%, better
Sensitivity83 dB −4.1, worse
Dayton AudioND90-4
£25.31 · 66% more, worseFs90 Hz −25%, better
Qts0.63 −3%
Vas1.1 L −31%, better
BL3.5 T·m −12%, worse
Xmax4 mm +129%, better
Sensitivity82.4 dB −4.7, worse
Dayton AudioND90-8
£26.16 · 72% more, worseFs71 Hz −41%, better
Qts0.65 –
Vas1.8 L +16%, worse
BL4.3 T·m +9%
Xmax4 mm +129%, better
Sensitivity81.2 dB −5.9, worse
Dayton AudioRS100-8
£30.28 · 99% more, worseFs92 Hz −23%, better
Qts0.58 −11%, better
Vas1.4 L −7%
BL4.2 T·m +6%
Xmax3.5 mm +100%, better
Sensitivity83.7 dB −3.4, worse
Tang BandW3-871SC
£31.23 · 105% more, worseFs110 Hz −8%
Qts0.59 −9%
Vas1.6 L +8%
BL3.5 T·m −11%, worse
Xmax0.5 mm −71%, worse
Sensitivity86.9 dB –
WavecorWF095WA02
£41.65 · 173% more, worseFs86 Hz −28%, better
Qts0.62 −5%
Vas1.6 L +5%
BL3.6 T·m −9%
Xmax2.7 mm +54%, better
Sensitivity83.7 dB −3.4, worse
WavecorWF095WA01
£41.65 · 173% more, worseFs89 Hz −26%, better
Qts0.64 –
Vas1.5 L –
BL3 T·m −24%, worse
Xmax2.7 mm +54%, better
Sensitivity83.8 dB −3.3, worse
CelestionAN3510
£42.31 · 178% more, worseFs113 Hz −5%
Qts0.65 –
Vas1.9 L +22%, worse
BL4.6 T·m +15%, better
Xmax2.3 mm +29%, better
Sensitivity87.7 dB +0.6
EminenceALPHA 4-4
£42.77 · 181% more, worseFs120 Hz –
Qts0.63 −3%
Vas1.8 L +15%, worse
BL4.1 T·m +4%
Xmax2.6 mm +49%, better
Sensitivity88.4 dB +1.3
VisatonB 80
£73.18 · 380% more, worseFs110 Hz −8%
Qts0.63 −3%
Vas1.8 L +18%, worse
BL4.2 T·m +5%
Xmax2.2 mm +26%, better
Sensitivity87.4 dB –
No photo
Tang BandW3-582SC
No current priceFs100 Hz −17%, better
Qts0.65 –
Vas1.6 L –
BL3.5 T·m −12%, worse
Xmax0.2 mm −89%, worse
Sensitivity85.2 dB −1.9
LavoceFSN030.71
No current priceFs134 Hz +12%, worse
Qts0.67 +3%
Vas1.0 L −32%, better
BL3.8 T·m −3%
Xmax2.1 mm +20%, better
Sensitivity87.3 dB –
CIARECM087
No current priceFs122 Hz –
Qts0.64 –
Vas1.2 L −22%, better
BL2.9 T·m −28%, worse
Xmax1.5 mm −14%, worse
Sensitivity86.4 dB −0.7
Dayton AudioPC105-8
No current priceFs85 Hz −29%, better
Qts0.64 –
Vas3.4 L +122%, worse
BL4.1 T·m +4%
Xmax2 mm +14%, better
Sensitivity85.7 dB −1.4
WavecorWF118OM02
No current priceFs61 Hz −49%, better
Qts0.65 –
Vas5.5 L +259%, worse
BL4.2 T·m +6%
Xmax1.9 mm +9%
Sensitivity84.5 dB −2.6, worse
PeerlessTC10FG00-04
No current priceFs160 Hz +33%, worse
Qts0.65 –
Vas1.7 L +11%, worse
BL3.4 T·m −15%, worse
Xmax2.7 mm +55%, better
Sensitivity90.9 dB +3.8, better
MonacorAN3510/8
No current priceFs113 Hz −5%
Qts0.65 –
Vas1.9 L +24%, worse
BL4.6 T·m +15%, better
Xmax2.3 mm +29%, better
Sensitivity87.8 dB +0.7
Tang BandW3-532SQ
No current priceFs100 Hz −17%, better
Qts0.61 −6%
Vas1.7 L +10%
BL3.5 T·m −11%, worse
Xmax0.2 mm −89%, worse
Sensitivity85.9 dB −1.2
Tang BandW3-532SQF
No current priceFs100 Hz −17%, better
Qts0.72 +11%, worse
Vas1.5 L –
BL3.2 T·m −18%, worse
Xmax0.5 mm −71%, worse
Sensitivity84.5 dB −2.6, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
- Parts Express4.9 out of 515 ratings · Checked 8 Oct 2026Read reviews on Parts Express
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Parts Express Import VAT and duty may apply | £16.62, the lowest price | 4 in stock | Visit shop at Parts Express | |
Audiophonics Import VAT and duty may apply | £17.70 | 6.5% above the lowest price | In stock | Visit shop at Audiophonics |
Best price over time
Tracked since 22 Jul
