LF DriverFE series
FaitalPRO

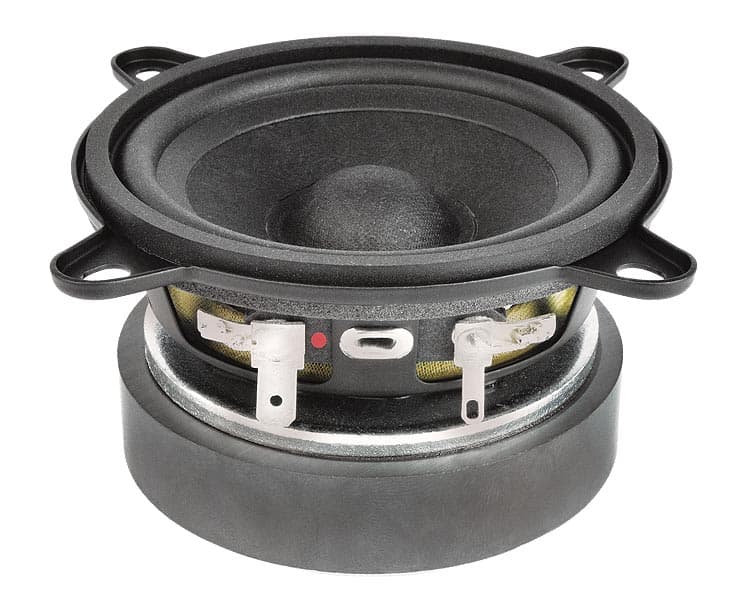

FaitalPRO 3FE25
FaitalPRO 3FE25 is a 3" 8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 110Hz, Qts 0.66, Vas 1.3L, Xmax 1.8mm, sensitivity 85.4dB, plus 6cm³ Vd and 139 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £8.68.
Size
3"
Impedance
8Ω
RMS Power
20W
Sensitivity
85.4dB
91.0dBmanufacturer; using T/S-derived value (5.6dB delta).
EBP
139
Vented alignment
Vd
6cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees151 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
151 plotted pointsMedium confidence312 selected pixels of 527 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence973 selected pixels of 973 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,233 selected pixels of 1,233
T/S Parameters
Valid
Fs110Hz
Qts0.66
Qes0.79
Qms4.1
Vas1.3L
Re6.2Ω
Le0.07mH
BL3.6Tm
Sd33cm²
Mms2g
Xmax1.8mm
SPL85dB
Power20W
Impedance8Ω
F Low100Hz
F High20000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£8.68
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter105.6mm
Overall Depth54.5mm
Cutout Diameter73.6mm
Bolt Circle Diameter92.0mm
