LF DriverPrestige series
SEAS
SEAS H1658-04 MU10RB-SL
SEAS H1658-04 MU10RB-SL is a 4" 4 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 100Hz, Qts 0.67, Vas 1.1L, Xmax 2mm, sensitivity 81.8dB, plus 8cm³ Vd and 87 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
40W
Sensitivity
81.8dB
84.7dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
87
Either alignment
Vd
8cm³

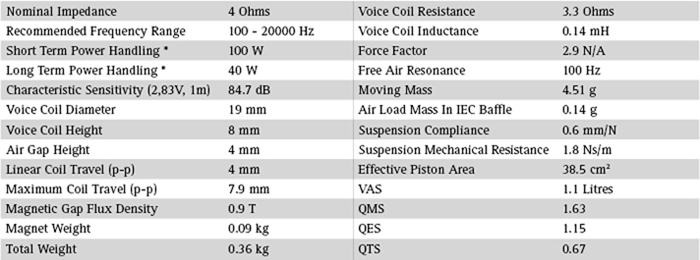

T/S Parameters
Valid
Fs100Hz
Qts0.67
Qes1.15
Qms1.6
Vas1.1L
Re3.3Ω
Le0.14mH
BL2.9Tm
Sd39cm²
Mms5g
Xmax2.0mm
SPL82dB
Power40W
Impedance4Ω
F Low100Hz
F High20000Hz
Voice Coil19mm
Flux Density0.90T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.4kg
