LF DriverPrestige series
SEAS
SEAS H1600-08 FU10RB
SEAS H1600-08 FU10RB is a 4" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 102Hz, Qts 0.96, Vas 1L, Xmax 2mm, sensitivity 81dB, plus 8cm³ Vd and 75 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
40W
Sensitivity
81.0dB
82.1dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
75
Either alignment
Vd
8cm³

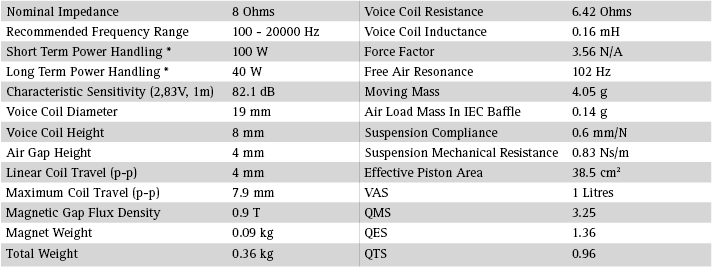

T/S Parameters
Valid
Fs102Hz
Qts0.96
Qes1.36
Qms3.3
Vas1.0L
Re6.4Ω
Le0.16mH
BL3.6Tm
Sd39cm²
Mms4g
Xmax2.0mm
SPL81dB
Power40W
Impedance8Ω
F Low100Hz
F High20000Hz
Voice Coil19mm
Flux Density0.90T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.4kg
