Visaton FRS 8 8Ω

LF Driver
WatchWatch priceSimSimulate
  1. Home
  2. /Drivers
  3. /Visaton
  4. /FRS 8

Media

Visaton FRS 8 3.5 inch 8 ohm loudspeaker driver view 1
Visaton FRS 8 3.5 inch 8 ohm loudspeaker driver view 2
Visaton FRS 8 3.5 inch 8 ohm loudspeaker driver view 3
Visaton FRS 8 3.5 inch 8 ohm loudspeaker driver view 4
Auto-advancing

Overview

LF DriverFRS series
Visaton

Visaton FRS 8

Rated 5.0 out of 55.0 ★·1 rating at 1 shop

Visaton FRS 8 is a 3.5" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 120Hz, Qts 1.04, Vas 0.9L, Xmax 2.5mm, sensitivity 82.7dB, plus 8cm³ Vd and 91 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £13.29.

Size
3.5"
Impedance
8Ω
RMS Power
30W
Sensitivity
82.7dB
EBP
91
Either alignment
Vd
8cm³
Datasheet

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves
8375665849501002005001k2k5k10kHzdBfrequency response
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

  • frequency response

    Frequency response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 64d3f3854800…Medium confidence568 selected pixels of 1,172
    Manufacturer datasheet, page 1

  • impedance

    Impedance response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 64d3f3854800…Medium confidence394 selected pixels of 577
    Manufacturer datasheet, page 1

T/S Parameters

Valid
Canonical
Fs120Hz
Qts1.04
Qes1.32
Qms4.8
Vas0.9L
Re7.2Ω
Le0.90mH
BL3.2Tm
Sd31cm²
Mms3g
Xmax2.5mm
SPL83dB
Power30W
Impedance8Ω
F Low100Hz
F High20000Hz
Voice Coil20mm
Flux Density0.80T
What this validation status means

Pricing & availability

Price definitions

Price movement

Other offers

2 vendors
RumoH
Updated 28 Sept 2026· 8Ω
Source: inc VAT
£13.98
inc VAT
Audiophonics
Updated 28 Sept 2026· 8Ω
Source: inc VAT · 20%
£14.54
inc VAT
In stock

Best current price

Updated 28 Sept 2026

SoundImports
£13.29
Avg £13.94£0.65 below avg (-4.6%)
inc VAT·4 in stock
Buy now

Reviews

How ratings work

Rated 5.0 out of 55.0 ★from 1 rating at 1 shop

  • SoundImports
    Rated 5.0 out of 55.0 ★ · 1 rating · Checked 28 Sep 2026
    Read reviews on SoundImports

Each shop collects its own ratings. Bits shows them as published and doesn't verify them.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight0.3kg
Diameter80.0mm
Cutout Diameter73.0mm

Similar Drivers

Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.

Search Similar
Visaton FRS 8 3.5 inch 8 ohm loudspeaker driver similar-driver reference
Reference
Visaton
FRS 8
3.5"
Best current price
£13.29
Compare on

Matches sit inside every range. Size stays fixed automatically.

Qts
Qes
Vas
L
Xmax
mm
BL
Tm

5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.

12 matches

Compare a specific driver

Added drivers stay at the front of the list, whatever the ranges say.

Visaton FR 8 3.5 inch 8 ohm loudspeaker driver similar driver
66%
Similarity
22% cheaper£10.39
Visaton
FR 8
3.5"
Lower price
Xmax2mm-20%
Qts1.09+5%
BL2.5Tm-22%
Vas0.7L-22%
Qes1.38+5%
Visaton FR 8 3.5 inch 4 ohm loudspeaker driver similar driver
60%
Similarity
22% cheaper£10.39
Visaton
FR 8
3.5"
Lower price
Xmax2mm-20%
Qts1.05+1%
BL2.1Tm-34%
Vas0.6L-33%
Qes1.3-2%

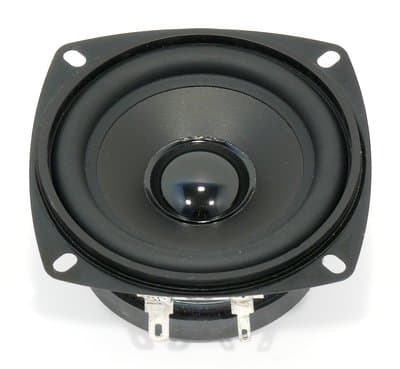

Visaton FR 8 JS 3.5 inch 8 ohm loudspeaker driver similar driver
54%
Similarity
21% cheaper£10.54
Visaton
FR 8 JS
3.5"
Lower price
Xmax2mm-20%
Qts1.24+19%
BL2.8Tm-13%
Vas0.8L-7%
Qes1.74+32%
Dayton Audio CE81PF-8 3 inch 8 ohm loudspeaker driver similar driver
48%
Similarity
3% cheaper£12.86
Dayton Audio
CE81PF-8
3"
Lower price
Xmax2.7mm+8%
Qts0.81-22%
BL3.7Tm+16%
Vas1L+11%
Qes0.9-32%
FaitalPRO 3FE26 3 inch 16 ohm loudspeaker driver similar driver
59%
Similarity
13% more£15.02
FaitalPRO
3FE26
3"
Higher price
Xmax2mm-20%
Qts1.08+4%
BL3.9Tm+22%
Vas0.9L0%
Qes1.56+18%
FaitalPRO 3FE26 3 inch 8 ohm loudspeaker driver similar driver
55%
Similarity
14% more£15.12
FaitalPRO
3FE26
3"
Higher price
Xmax2mm-20%
Qts0.79-24%
BL3.3Tm+3%
Vas0.9L0%
Qes1.1-17%
Visaton FR 8 WP 3.5 inch 4 ohm loudspeaker driver similar driver
56%
Similarity
15% more£15.28
Visaton
FR 8 WP
3.5"
Higher price
Xmax3mm+20%
Qts0.88-15%
BL2.8Tm-13%
Vas0.4L-56%
Qes1.33+1%
Wavecor FR070WA04 3 inch 8 ohm loudspeaker driver similar driver
43%
Similarity
159% more£34.37
Wavecor
FR070WA04
3"
Higher price
Xmax2mm-20%
Qts0.87-16%
BL2.9Tm-9%
Vas0.6L-32%
Qes0.94-29%
Wavecor FR070WA03 3 inch 4 ohm loudspeaker driver similar driver
36%
Similarity
159% more£34.37
Wavecor
FR070WA03
3"
Higher price
Xmax2mm-20%
Qts0.92-12%
BL2.3Tm-28%
Vas0.5L-40%
Qes0.99-25%
Wavecor WF090WA01 3.5 inch 4 ohm loudspeaker driver similar driver
59%
Similarity
341% more£58.68
Wavecor
WF090WA01
3.5"
Higher price
Xmax2.8mm+10%
Qts0.81-22%
BL2.9Tm-9%
Vas1L+13%
Qes0.92-30%
Wavecor FR090WA01 3.5 inch 4 ohm loudspeaker driver similar driver
62%
Similarity
377% more£63.41
Wavecor
FR090WA01
3.5"
Higher price
Xmax2.3mm-10%
Qts0.88-15%
BL2.8Tm-14%
Vas1.1L+19%
Qes1.03-22%
Wavecor FR090WA02 3.5 inch 8 ohm loudspeaker driver similar driver
61%
Similarity
377% more£63.41
Wavecor
FR090WA02
3.5"
Higher price
Xmax2.3mm-10%
Qts0.85-18%
BL3.4Tm+6%
Vas1.1L+27%
Qes1-24%
