Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Not enough T/S data
Missing Le
HiVi M4N 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverM series
HiVi
HiVi M4N
HiVi M4N is a 4" 8 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 69Hz, Qts 1.08, Vas 4.3L, Xmax 3mm, sensitivity 82.2dB, plus 16cm³ Vd and 51 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £17.12.
Size
4"
Impedance
8Ω
RMS Power
15W
Sensitivity
82.2dB
EBP
51
Either alignment
Vd
16cm³
T/S Parameters
Valid
Fs69Hz
Qts1.08
Qes1.35
Qms5.4
Vas4.3L
Re6.5Ω
BL3.1Tm
SdDerived54cm²
Mms5g
Xmax3.0mm
SPL82dB
Power15W
Impedance8Ω
Voice Coil20mm
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 14 Sept 2026
soundimports
£17.12
inc VAT·34 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.5kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
HiVi
M4N
4"
Best current price
£17.12
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
6 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
46%
Similarity
7% cheaper£16.00
FaitalPRO
4FE35
4"
Lower price
Xmax2.7mm-9%
Qts0.83-23%
BL3.9Tm+26%
Vas2.4L-44%
Qes1.04-23%
54%
Similarity

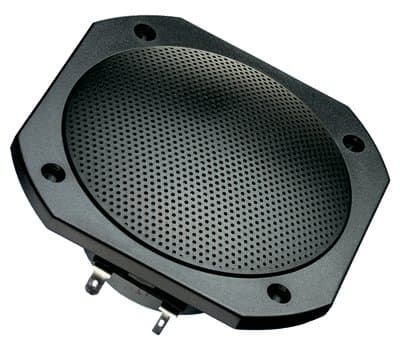

Visaton
FRS 10 WP - 4 OHM
4"
Xmax3mm0%
Qts0.91-16%
BL3.8Tm+23%
Vas2L-53%
Qes1.02-24%
31%
Similarity
Visaton
FR 13
5"
Xmax2.5mm-17%
Qts1.25+16%
BL2.3Tm-26%
Vas6.1L+42%
Qes1.64+21%
31%
Similarity
Visaton
FR 13 - 4 Ohm
5"
Xmax2.5mm-17%
Qts1.25+16%
BL2.3Tm-26%
Vas6.1L+42%
Qes1.64+21%
31%
Similarity
Visaton
FR 13 - 8 OHM
5"
Xmax2.5mm-17%
Qts1.25+16%
BL2.3Tm-26%
Vas6.1L+42%
Qes1.64+21%
29%
Similarity
CIARE
CW130Z
5"
Xmax2.1mm-30%
Qts0.81-25%
BL3Tm-2%
Vas6.5L+51%
Qes1.15-15%
