Overview
LF DriverBG series
Visaton

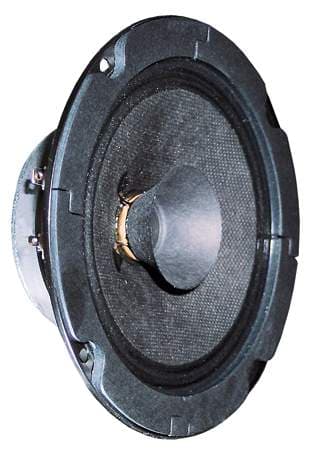

Visaton BG 13 P
Visaton BG 13 P is a 5" 8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 168Hz, Qts 1.04, Vas 2L, Xmax 2mm, sensitivity 89.8dB, plus 14cm³ Vd and 106 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
20W
Sensitivity
89.8dB
92.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
106
Vented alignment
Vd
14cm³
T/S Parameters
Valid
Fs168Hz
Qts1.04
Qes1.58
Qms3.1
Vas2.0L
Re5.2Ω
Le0.65mH
BL3.2Tm
Sd68cm²
Mms3g
Xmax2.0mm
SPL90dB
Power20W
Impedance8Ω
F Low120Hz
F High20000Hz
Voice Coil20mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.4kg
Diameter130.0mm
Cutout Diameter110.0mm
