Overview
LF DriverMod series
Jensen

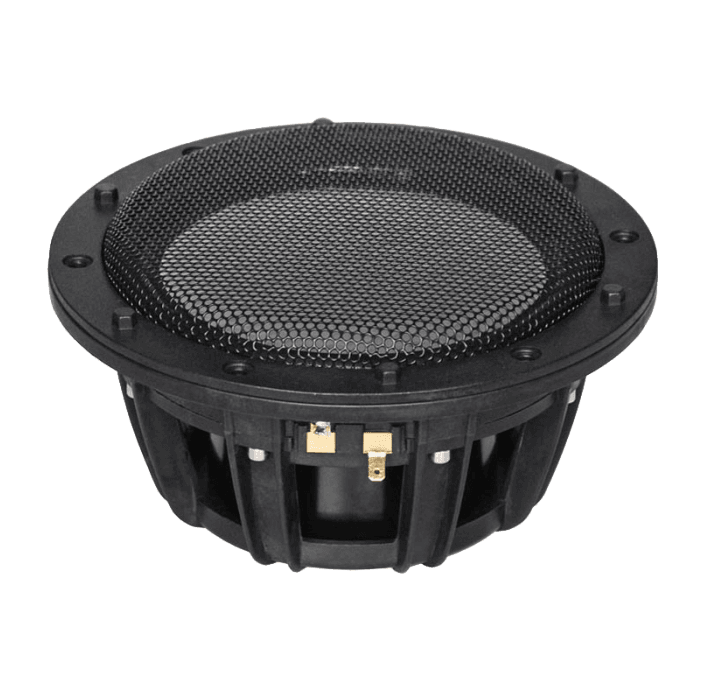

Jensen MOD6-15-4
Jensen MOD6-15-4 is a 6" 4 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 91Hz, Qts 1.19, Vas 11.7L, Xmax 0.5mm, sensitivity 89.9dB, plus 6cm³ Vd and 63 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
4Ω
RMS Power
15W
Sensitivity
89.9dB
90.9dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
63
Either alignment
Vd
6cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
Mod 6-15 - 4 ohm – SPL121 ptshigh
Curve provenanceInspect 2 tracesHide details
These plotted lines reproduce manufacturer-provided structured chart data, not Bits measurements or pixel digitizations. How provenance works
- Trace jensen-structured-response/v1
Mod 6-15 - 4 ohm – SPL
Frequency response
121 plotted pointsManufacturer structured chart dataSource payload SHA-256 e841019a83c4…Series Mod 6-15 - 4 ohmHigh confidence - Trace jensen-structured-response/v1
Mod 6-15 - 4 ohm – free-air impedance
Impedance response
121 plotted pointsManufacturer structured chart dataSource payload SHA-256 e841019a83c4…Series Mod 6-15 - 4 ohmHigh confidence
T/S Parameters
Valid
Fs91Hz
Qts1.19
Qes1.44
Qms8.1
Vas11.7L
Re3.0Ω
Le0.16mH
BL2.7Tm
Sd123cm²
Mms6g
Xmax0.5mm
SPL90dB
Power15W
Power Nominal15W
Impedance4Ω
Voice Coil20mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.6kg
Diameter165.0mm
