CIARE CH170Z 4Ω
LF DriverMedia
Overview
LF DriverCH series
CIARE

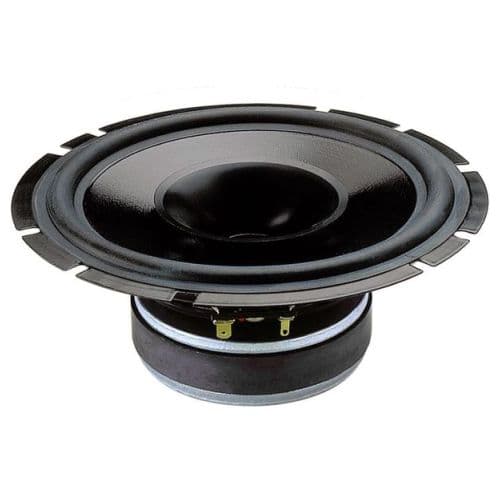

CIARE CH170Z
CIARE CH170Z is a 6.5" 4 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 93Hz, Qts 1.62, Vas 7.5L, Xmax 1.3mm, sensitivity 85.6dB, plus 17cm³ Vd and 35 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £11.00.
Size
6.5"
Impedance
4Ω
RMS Power
150W
Sensitivity
85.6dB
90.0dBmanufacturer; using T/S-derived value (4.4dB delta).
EBP
35
Sealed alignment
Vd
17cm³
T/S Parameters
Valid
Fs93Hz
Qts1.62
Qes2.63
Qms4.3
Vas7.5L
Re3.5Ω
BL2.7Tm
Sd133cm²
Mms10g
Xmax1.3mm
SPL86dB
Power150W
Power Nominal60W
Impedance4Ω
F Low80Hz
F High2500Hz
Voice Coil25mm
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 17 May 2026
bluearan
£11.00
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.0kg
Diameter165.0mm
Overall Depth70.0mm
Cutout Diameter142.0mm
Bolt Circle Diameter157.0mm
