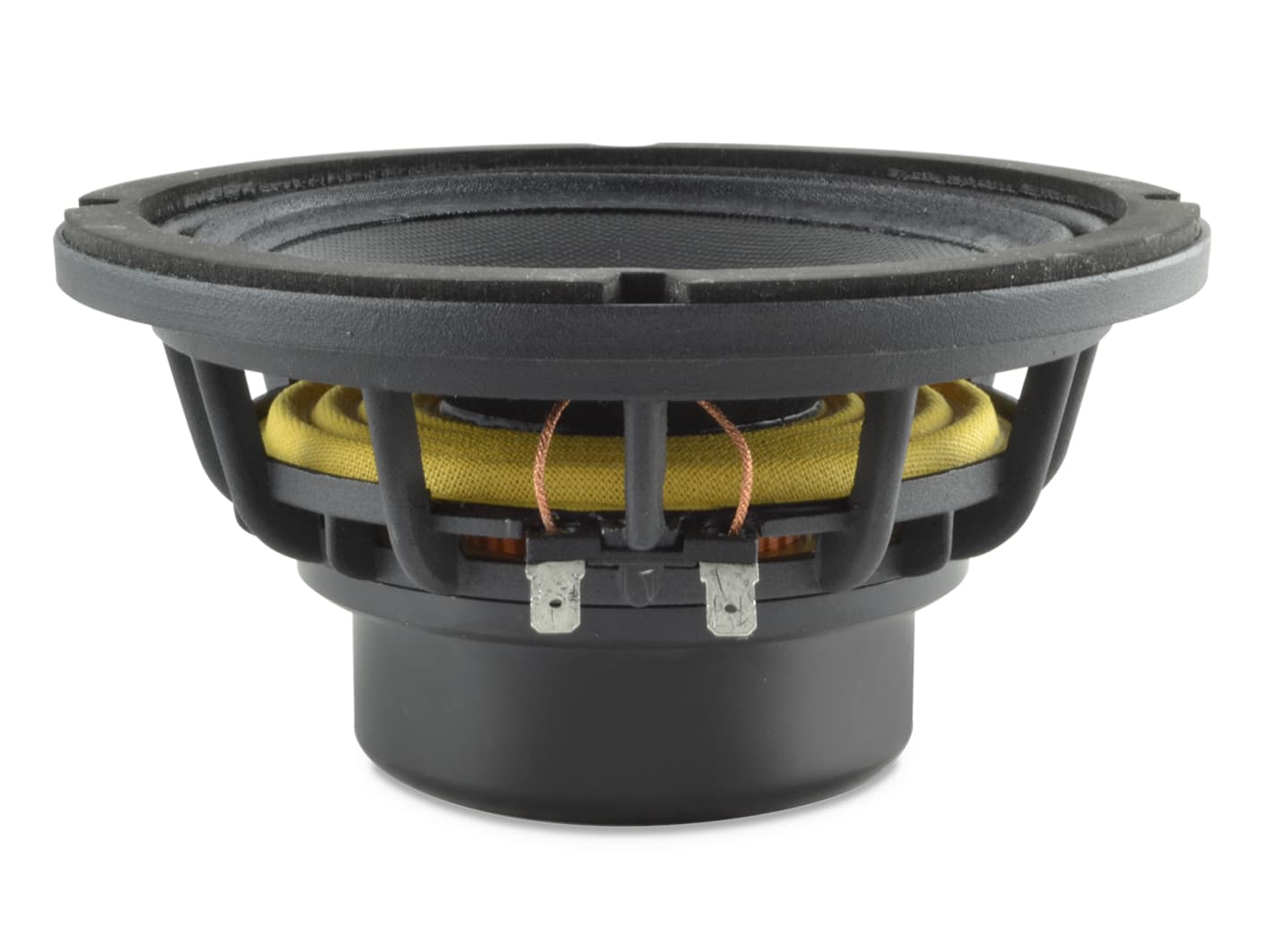

REDCATT 61NPM 8Ω
8 Ω
No price for delivery to the UK
- Fs
- 92Hz
- Xmax
- 2.3mm
- SPL
- 94dB
- Pe
- 100W
- BL
- 9.8T·m
- Vd
- 33cm³
- Qts
- 0.36
- Vas
- 7L
REDCATT 61NPM is a 6-inch 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 92 Hz, Qts 0.36, Vas 7 L, Xmax 2.3 mm, sensitivity 93.6 dB, plus 33 cm³ Vd and 242 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 92Hz
- Qts
- 0.36
- Qes
- 0.38
- Qms
- 5.6
- Vas
- 7L
- Re
- 5.2Ω
- Le
- 0.37mH
Motor and cone
- BL
- 9.8T·m
- Sd
- 143cm²
- Mms
- 12g
- Xmax
- 2.3mm
- Vd †
- 33cm³
- Voice coil
- 38mm
Power and response
- Sensitivity †
- 93.6dB
- Manufacturer sensitivity
- 95.4dB
- Power
- 100W
- Impedance
- 8Ω
- EBP †
- 242 · Leans vented
Size and mounting
- Diameter
- 167mm
- Cutout
- 145.9mm
- Bolt circle
- 155mm
- Weight
- 0.8kg
Other published values
- Xmech
- 8.3
- Power Peak
- 400
Other dimensions
- Mounting Depth
- 61.5
Sensitivity shows 93.6 dB, calculated from the T/S values. REDCATT publishes 95.4 dB, 1.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 6″
- BL
- 9.8T·m
- Fs
- 92Hz
- Le
- 0.37mH
- Re
- 5.2Ω
- Sd
- 143cm²
- Mms
- 12g
- Qes
- 0.38
- Qms
- 5.6
- Qts
- 0.36
- SPL
- 93.6dB
- Vas
- 7L
- Xmax
- 2.3mm
- Xmech
- 8.3
- Power
- 100W
- Impedance
- 8Ω
- Power Peak
- 400
- Sensitivity
- 95.4dB
- Calculated sensitivity †
- 93.6dB
- Manufacturer sensitivity
- 95.4dB
- Voice coil
- 38mm
- Weight
- 0.8kg
- Diameter
- 167mm
- Mounting Depth
- 61.5
- Cutout
- 145.9mm
- Bolt circle
- 155mm
