Overview
LF DriverTFX0615 series
Celestion

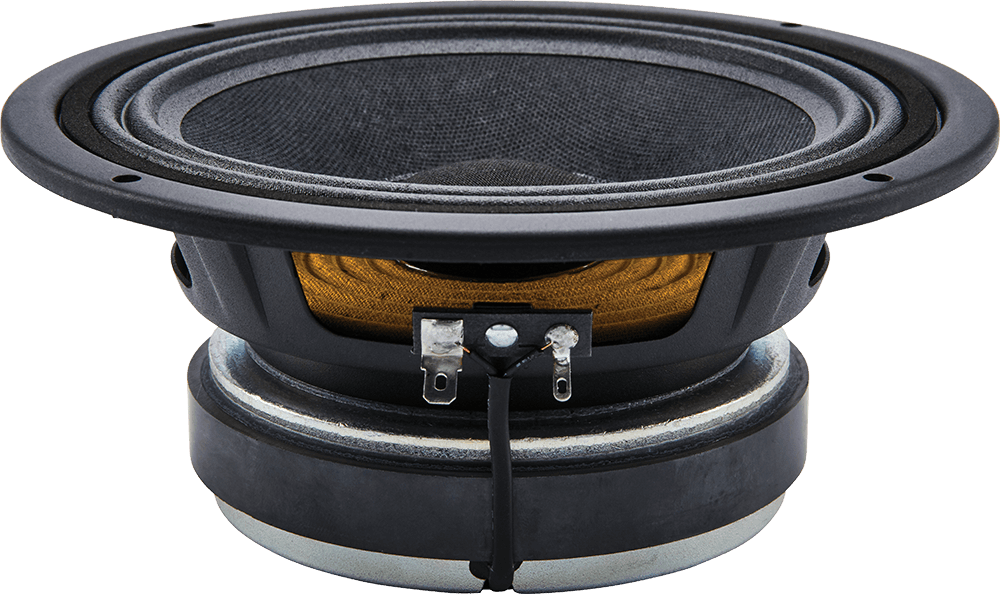

Celestion TFX0615
Celestion TFX0615 is a 6.5" 8 ohm LF driver rated at 10W RMS. The validated T/S data includes Fs 97Hz, Qts 0.38, Vas 7.2L, Xmax 5.3mm, sensitivity 93.8dB, plus 81cm³ Vd and 226 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
10W
Sensitivity
93.8dB
98.0dBmanufacturer; using T/S-derived value (4.2dB delta).
EBP
226
Vented alignment
Vd
81cm³
T/S Parameters
Valid
Fs97Hz
Qts0.38
Qes0.43
Qms3.0
Vas7.2L
Re5.4Ω
Le0.46mH
BL9.8Tm
Sd154cm²
Mms13g
Xmax5.3mm
SPL94dB
Power10W
Impedance8Ω
Voice Coil25mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.6kg
Diameter178.0mm
Overall Depth75.5mm
Cutout Diameter145.0mm
Bolt Circle Diameter168.5mm
