Overview
LF Driver6HCX series
B&C
B&C 6HCX51
B&C 6HCX51 is a 6.5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 89Hz, Qts 0.38, Vas 5L, Xmax 5.5mm, sensitivity 91.5dB, plus 73cm³ Vd and 223 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £175.82.
Size
6.5"
Impedance
8Ω
RMS Power
150W
Sensitivity
91.5dB
EBP
223
Vented alignment
Vd
73cm³

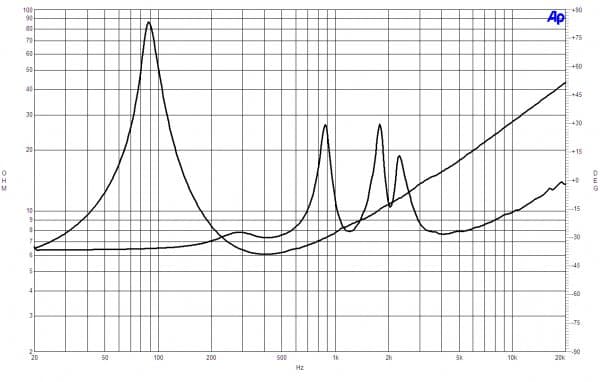

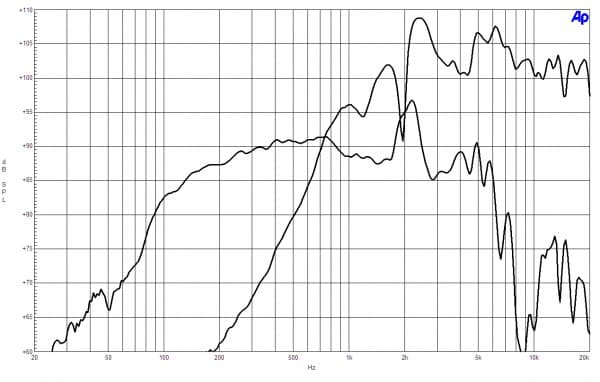

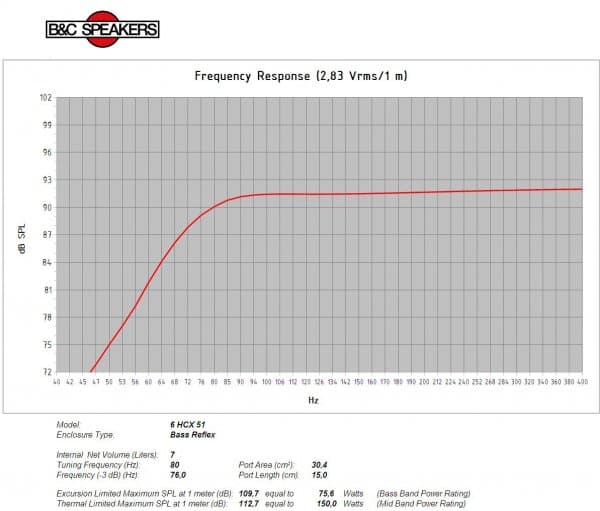

Frequency response

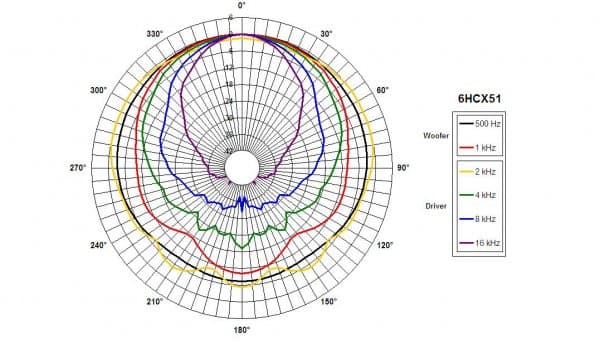

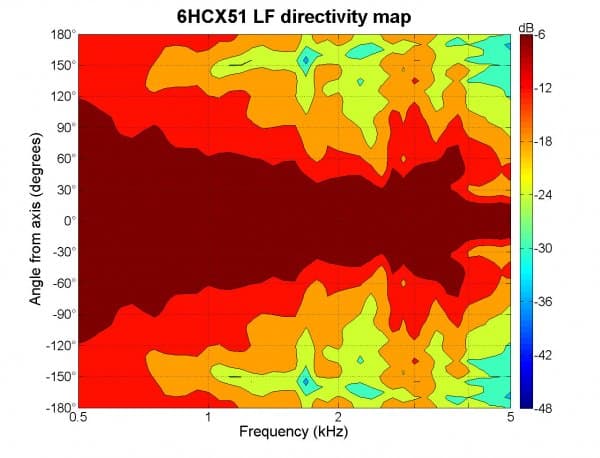

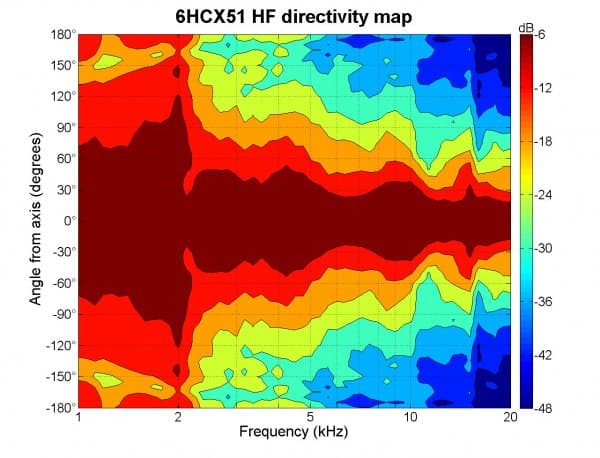

Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs89Hz
Qts0.38
Qes0.40
Qms7.5
Vas5.0L
Re5.2Ω
Le0.80mH
BL10.9Tm
Sd132cm²
Mms16g
Xmax5.5mm
SPL92dB
Power150W
Power Nominal150W
Impedance8Ω
Min Impedance6.0Ω
Voice Coil51mm
Flux Density1.10T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£175.82
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs89 Hz
Qts0.38
Qes0.40
Qms7.5
Vas5.0 L
Re5.2 Ω
Le0.80 mH
BL10.9 Tm
Sd132 cm²
Mms16 g
Xmax5.5 mm
SPL92 dB
Power150 W
Power Nominal150 W
Impedance8 Ω
Min Impedance6.0 Ω
Voice Coil51 mm
Flux Density1.10 T
HFSpecifications HF unit
Le0.06 mH
SPL105 dB
Power25 W
Power Nominal25 W
Impedance8 Ω
Min Impedance7.5 Ω
Xover2200 Hz
Voice Coil36 mm
Flux Density1.80 T
Additional Manufacturer Specs
Bl10.9 Tm
Fs89 Hz
Le0.8 mH
Re5.2 Ω
Sd132 cm² (20.5 in²)
Ebp223 Hz
Mms16 g
Qes0.4
Qms7.5
Qts0.38
Vas5 dm³ (0.18 ft³)
η00.8 %
Xvar5.5 mm
Winding Depth13 mm (0.51 in)
Former MaterialKapton
Nominal Diameter170 mm (6.5 in)
Winding MaterialCopper
Magnetic Gap Depth6 mm (0.24 in)
Woofer Cone TreatmentTWP Waterproof Both Sides
