LF DriverWAF061 series
Lavoce
Lavoce WAF061.80
Lavoce WAF061.80 is a 6.5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 65Hz, Qts 0.42, Vas 7.3L, Xmax 4.9mm, sensitivity 88.6dB, plus 65cm³ Vd and 148 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £42.07.
Size
6.5"
Impedance
8Ω
RMS Power
150W
Sensitivity
88.6dB
91.0dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
148
Vented alignment
Vd
65cm³

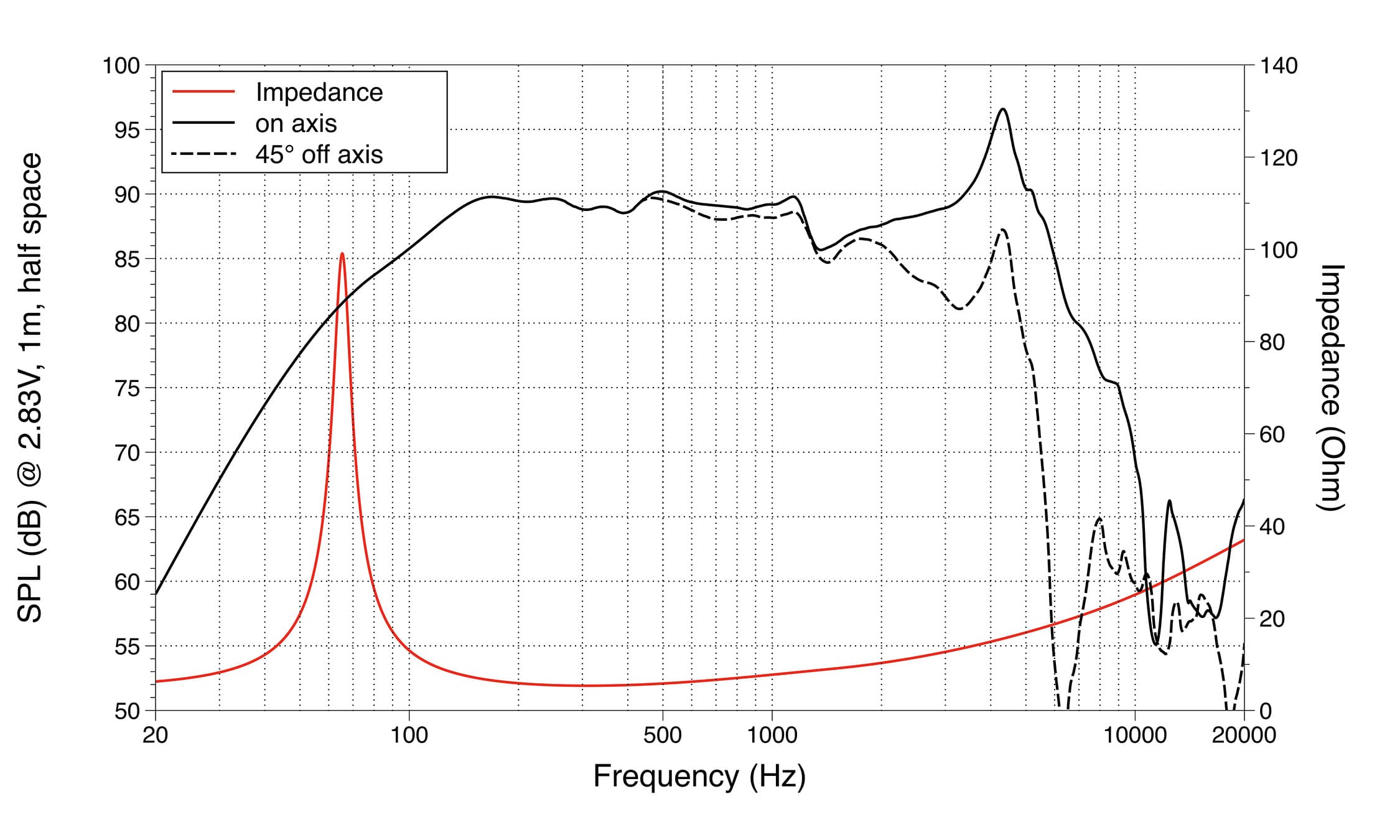

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs65Hz
Qts0.42
Qes0.44
Qms8.8
Vas7.3L
Re4.7Ω
Le0.34mH
BL9.5Tm
Sd132cm²
Mms20g
Xmax4.9mm
SPL89dB
Power150W
Impedance8Ω
Min Impedance5.4Ω
F Low65Hz
F High5000Hz
Voice Coil45mm
Pricing & availability
Price definitionsPrice movement
Best current price
£42.07
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.3kg
