6-inch LF driver · SP series · 40 mm voice coil · 100 W
Monacor SP-6/100PA 8Ω
8 Ω · 3–8000 Hz
No current price
- Fs
- 90Hz
- Xmax
- 0.75mm
- SPL
- 93dB
- Pe
- 100W
- BL
- 9.3T·m
- Vd
- 10cm³
- Qts
- 0.44
- Vas
- 8L

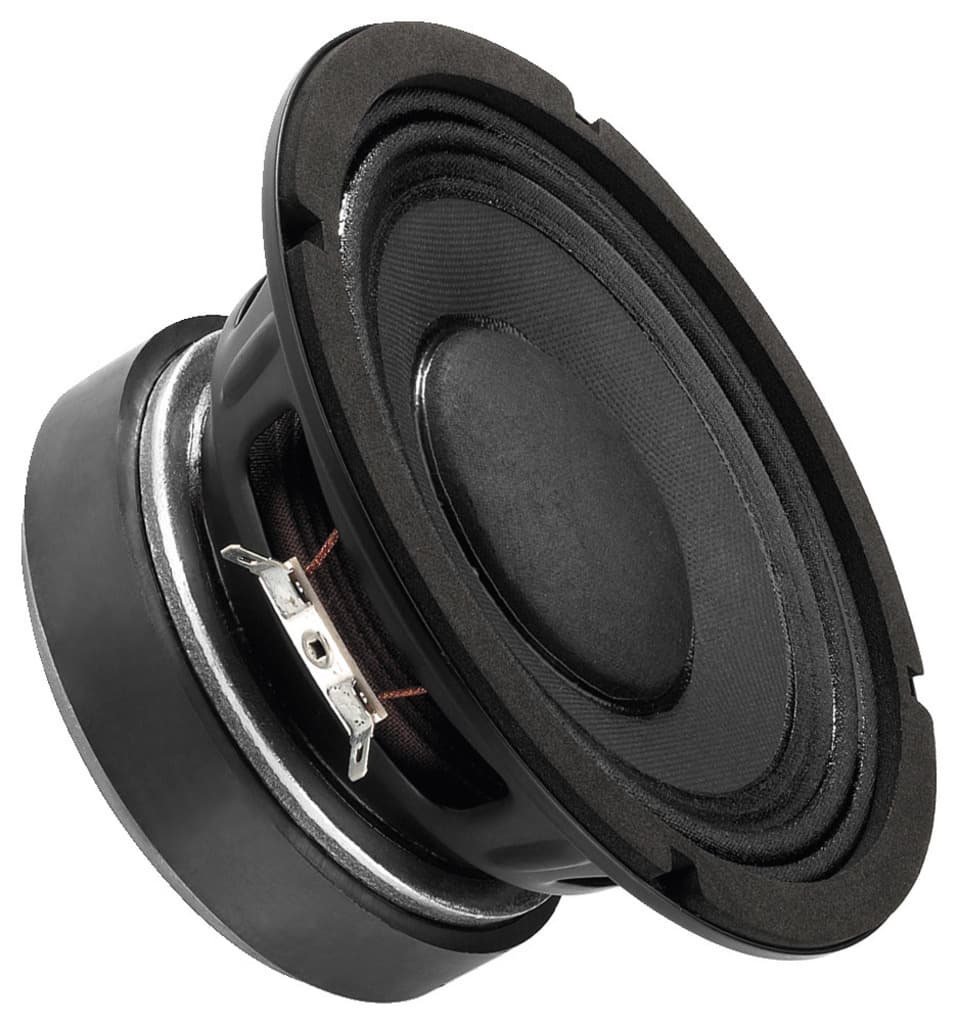

Monacor SP-6/100PA is a 6-inch 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 90 Hz, Qts 0.44, Vas 8 L, Xmax 0.75 mm, sensitivity 92.8 dB, plus 10 cm³ Vd and 184 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 90Hz
- Qts
- 0.44
- Qes
- 0.49
- Qms
- 4.2
- Vas
- 8L
- Re
- 6.7Ω
- Le
- 0.50mH
Motor and cone
- BL
- 9.3T·m
- Sd
- 139cm²
- Mms
- 11g
- Xmax
- 0.75mm
- Vd †
- 10cm³
- Voice coil
- 40mm
Power and response
- Sensitivity †
- 92.8dB
- Manufacturer sensitivity
- 94dB
- Power
- 100W
- Impedance
- 8Ω

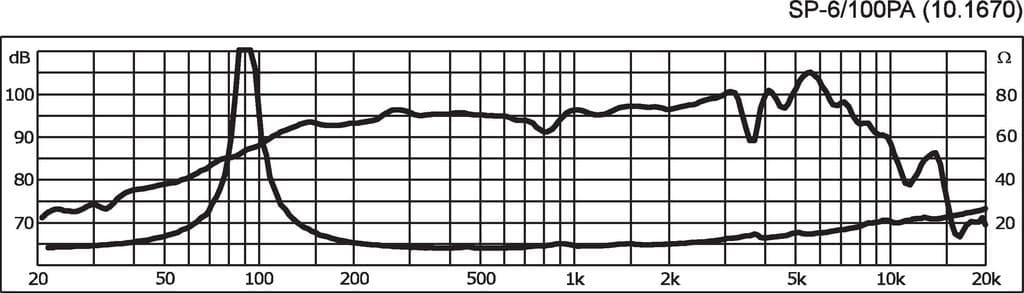

- Range
- 3–8000Hz
- EBP †
- 184 · Leans vented

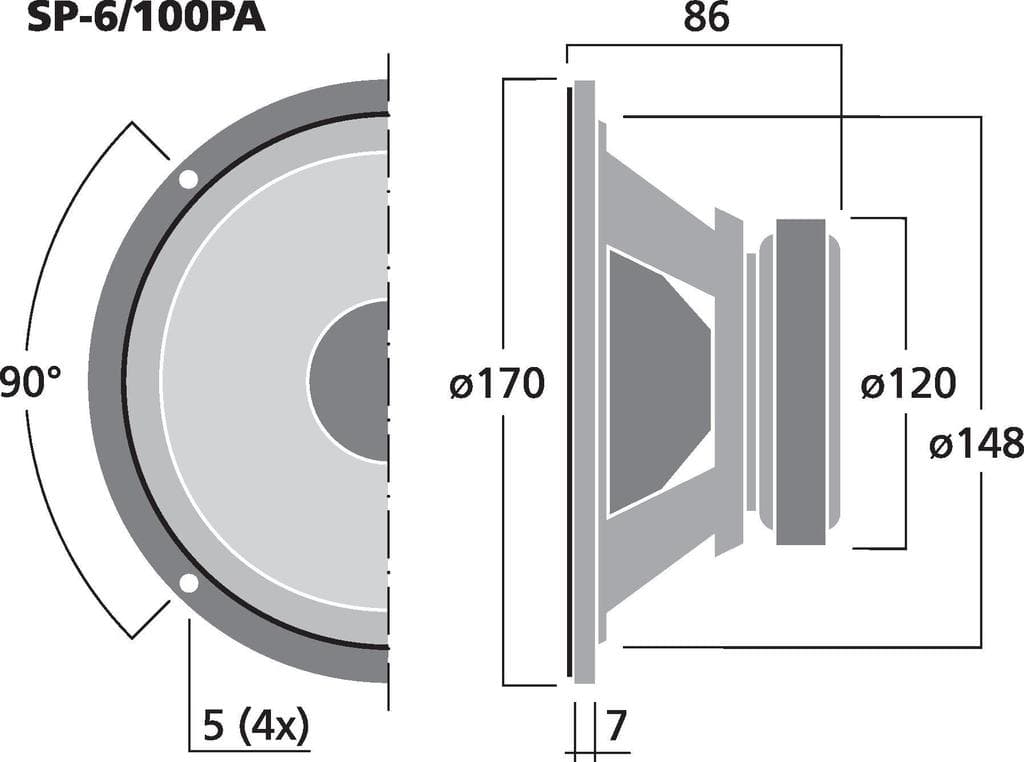

Size and mounting
- Diameter
- 170mm
- Cutout
- 148mm
- Depth
- 86mm
- Weight
- 2.1kg
Other published values
- Cms
- 0.28mm/N
- Power Peak
- 200
Other dimensions
- Mounting Depth
- 79
Sensitivity shows 92.8 dB, calculated from the T/S values. Monacor publishes 94.0 dB, 1.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 6″
- BL
- 9.3T·m
- Fs
- 90Hz
- Le
- 0.50mH
- Re
- 6.7Ω
- Sd
- 139cm²
- Cms
- 0.28mm/N
- Mms
- 11g
- Qes
- 0.49
- Qms
- 4.2
- Qts
- 0.44
- SPL
- 92.8dB
- Vas
- 8L
- Xmax
- 0.75mm
- Power
- 100W
- Impedance
- 8Ω
- Power Peak
- 200
- Sensitivity
- 94dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 92.8dB
- High limit
- 8000Hz
- Manufacturer sensitivity
- 94dB
- Voice coil
- 40mm
- Weight
- 2.1kg
- Diameter
- 170mm
- Depth
- 86mm
- Mounting Depth
- 79
- Cutout
- 148mm
