LF Driver5CXN series
B&C

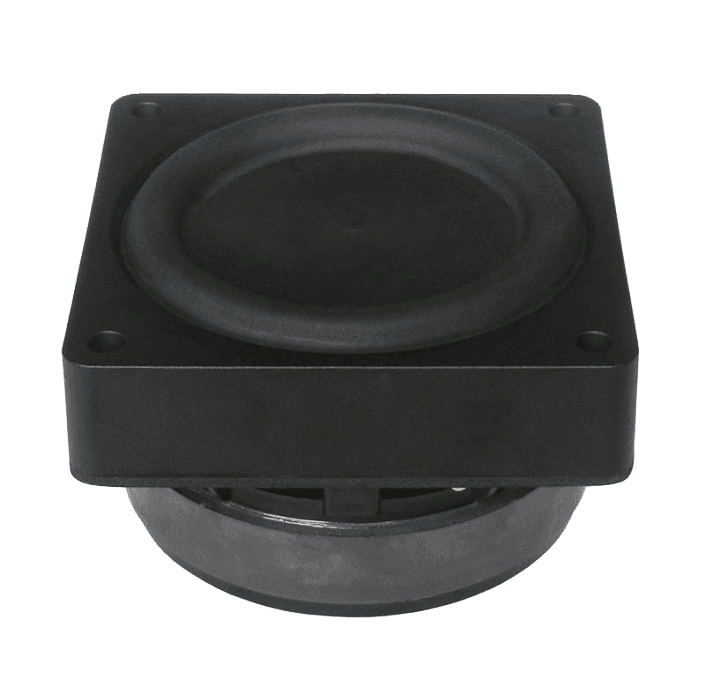

B&C 5CXN44
B&C 5CXN44 is a 5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 70Hz, Qts 0.45, Vas 4.3L, Xmax 6mm, sensitivity 87dB, plus 57cm³ Vd and 149 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £145.32.
Size
5"
Impedance
8Ω
RMS Power
150W
Sensitivity
87.0dB
EBP
149
Vented alignment
Vd
57cm³

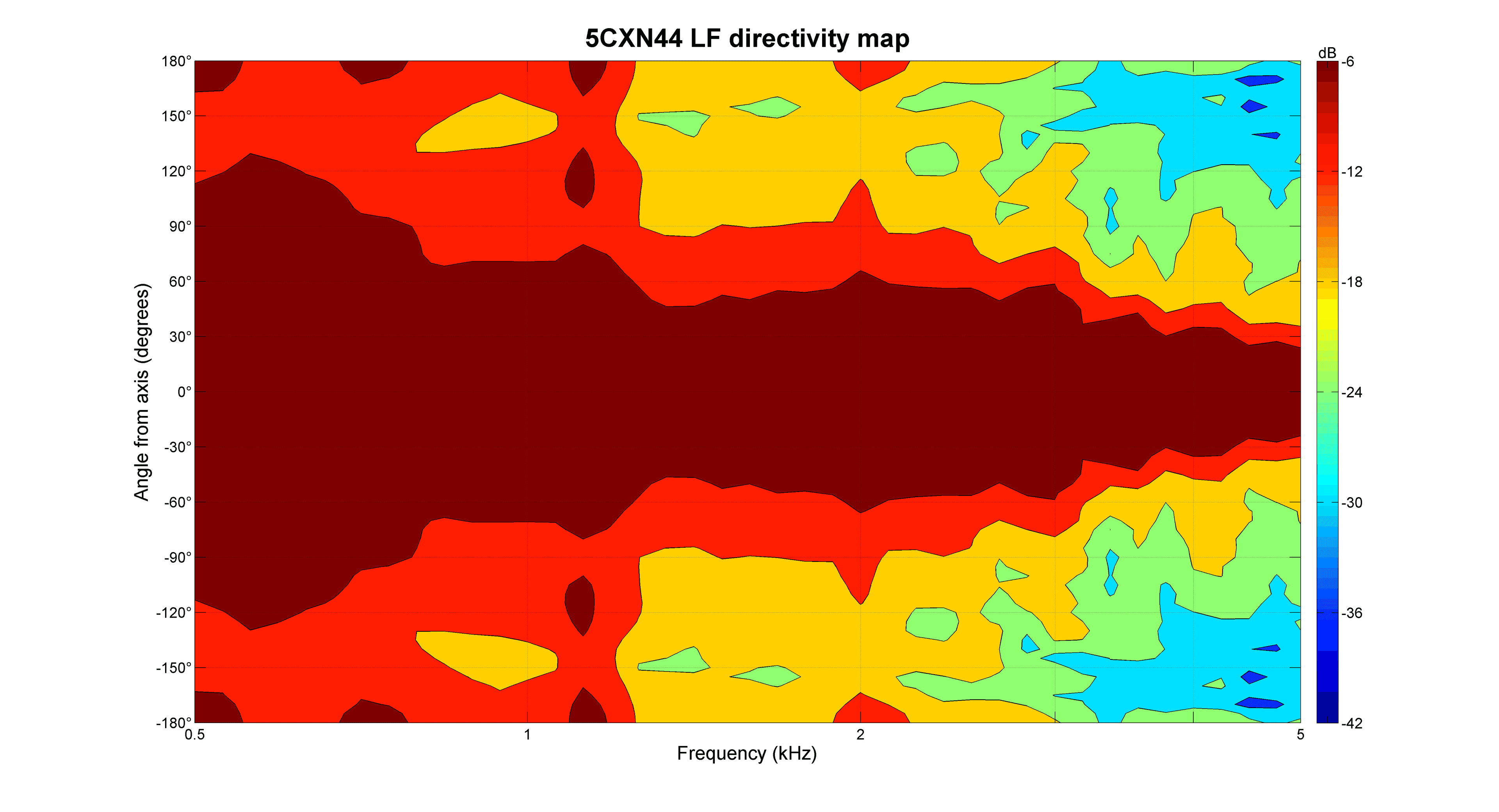

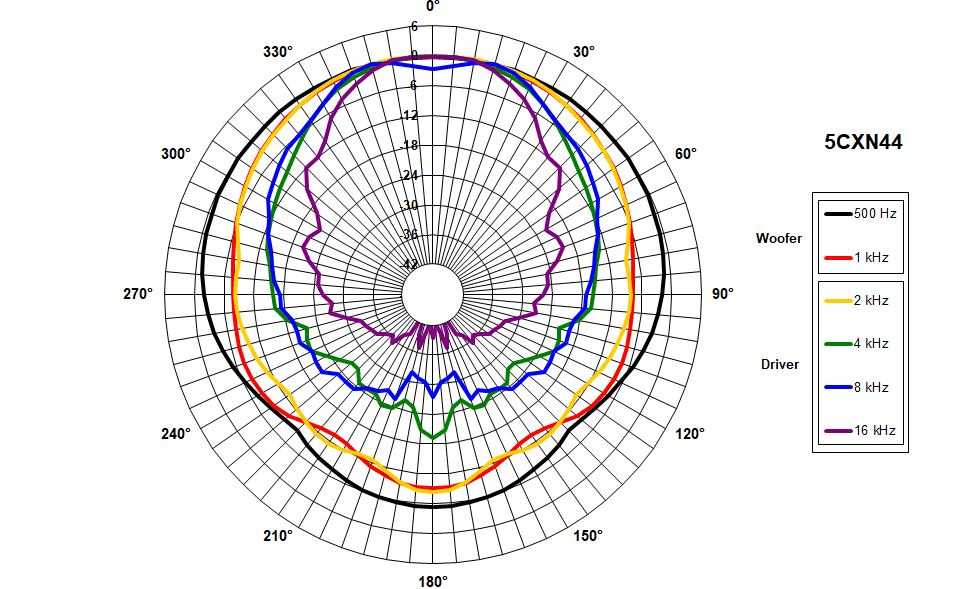

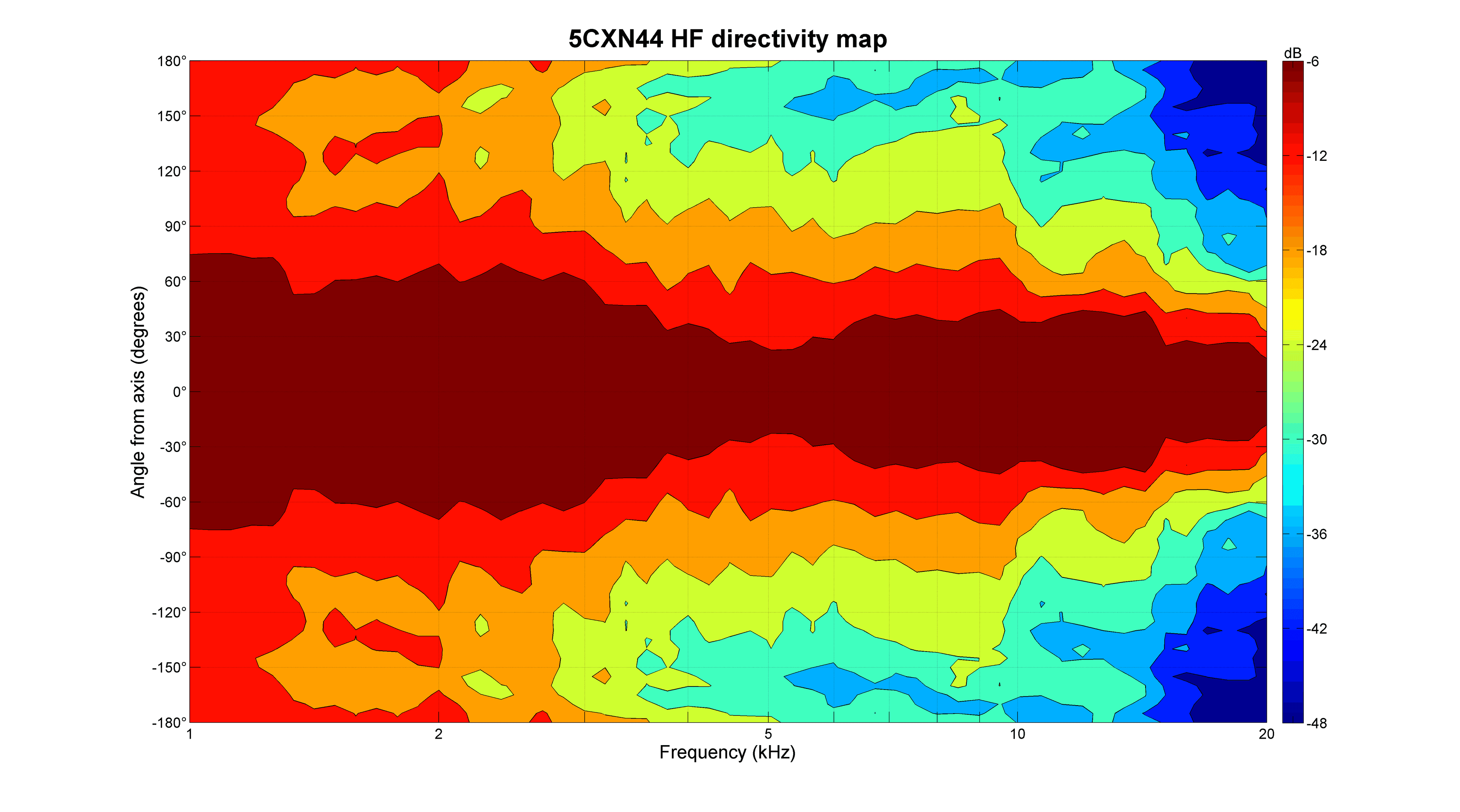

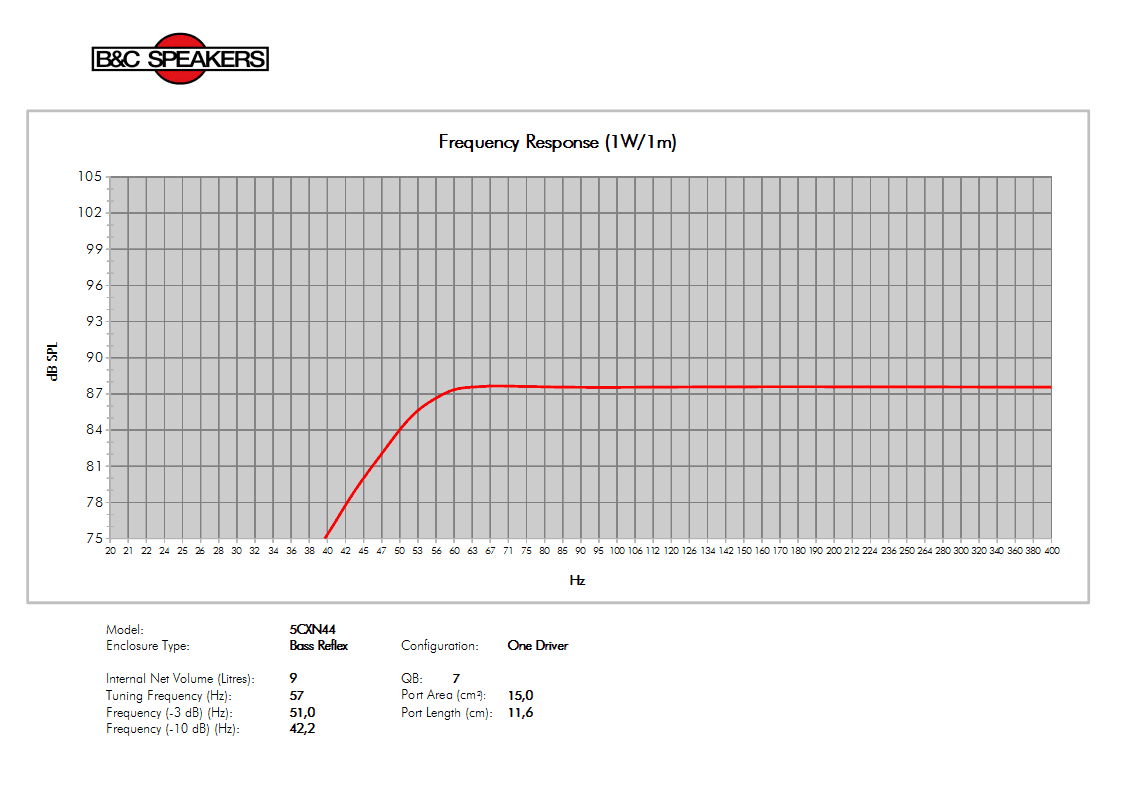

Frequency response
Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs70Hz
Qts0.45
Qes0.47
Qms9.6
Vas4.3L
Re4.7Ω
Le0.37mH
BL8.1Tm
Sd95cm²
Mms15g
Xmax6.0mm
SPL87dB
Power150W
Power Nominal150W
Impedance8Ω
Min Impedance6.1Ω
Voice Coil44mm
Flux Density0.95T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£145.32
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs70 Hz
Qts0.45
Qes0.47
Qms9.6
Vas4.3 L
Re4.7 Ω
Le0.37 mH
BL8.1 Tm
Sd95 cm²
Mms15 g
Xmax6.0 mm
SPL87 dB
Power150 W
Power Nominal150 W
Impedance8 Ω
Min Impedance6.1 Ω
Voice Coil44 mm
Flux Density0.95 T
HFSpecifications HF unit
Le0.14 mH
SPL101 dB
Power25 W
Power Nominal25 W
Impedance8 Ω
Min Impedance7.5 Ω
Xover2000 Hz
Voice Coil36 mm
Flux Density1.54 T
Additional Manufacturer Specs
Bl8.1 Tm
Fs70 Hz
Le0.37 mH
Re4.7 Ω
Sd95 cm² (14.73 in²)
Ebp149 Hz
Mms15 g
Qes0.47
Qms9.6
Qts0.45
Vas4.3 dm³ (0.15 ft³)
η00.31 %
Xvar6 mm
Winding Depth14 mm (0.55 in)
Former MaterialKapton
Nominal Diameter127 mm (5 in)
Winding MaterialCopper
Magnetic Gap Depth6 mm (0.24 in)
Woofer Cone TreatmentWP Waterproof Front Side
