Overview
LF Driver
Tang Band

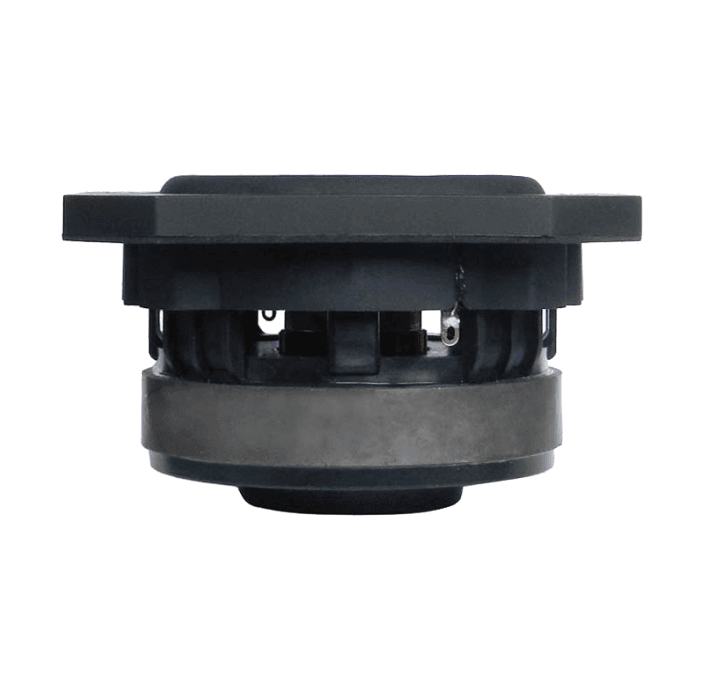

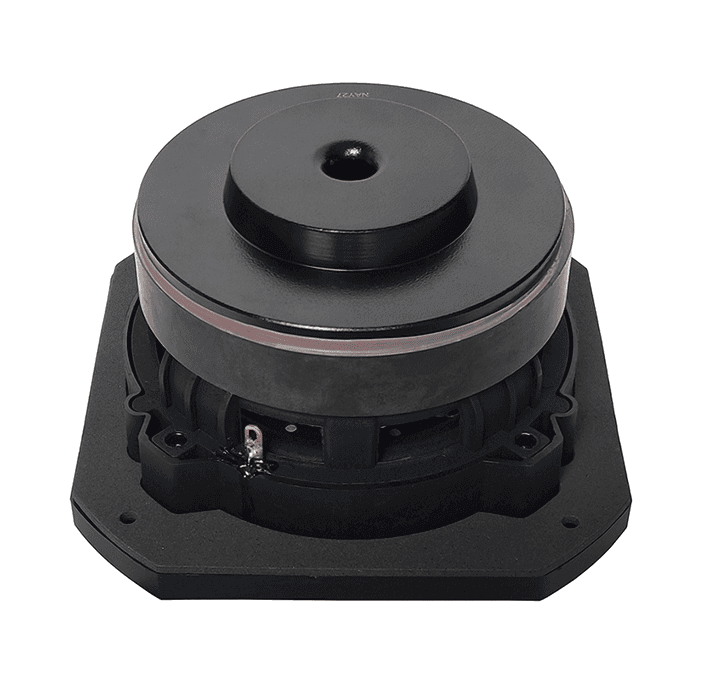

Tang Band W5-2053
Tang Band W5-2053 is a 5" 4 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 35Hz, Qts 0.40, Vas 3.9L, Xmax 8mm, sensitivity 77.8dB, plus 60cm³ Vd and 80 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
4Ω
RMS Power
40W
Sensitivity
77.8dB
80.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
80
Either alignment
Vd
60cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,414 selected pixels of 2,733 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,708 selected pixels of 2,709
T/S Parameters
Valid
Fs35Hz
Qts0.40
Qes0.44
Qms4.6
Vas3.9L
Re3.6Ω
Le0.36mH
BL8.3Tm
Sd75cm²
Mms35g
Xmax8.0mm
SPL78dB
Power40W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
