Overview
LF Driver5NDL series
B&C

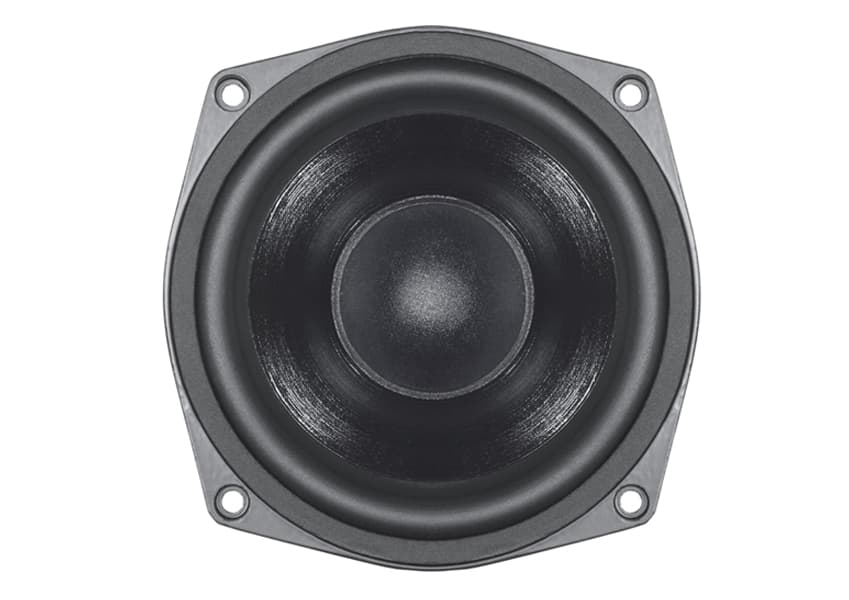

B&C 5NDL38
B&C 5NDL38 is a 5" 8 ohm LF driver rated at 90W RMS. The validated T/S data includes Fs 80Hz, Qts 0.36, Vas 4.3L, Xmax 3.5mm, sensitivity 89.8dB, plus 33cm³ Vd and 216 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £85.00.
Size
5"
Impedance
8Ω
RMS Power
90W
Sensitivity
89.8dB
91.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
216
Vented alignment
Vd
33cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
free-air SPL240 ptsp3medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 a62ad211daa6…Medium confidence4,781 selected pixels of 4,781 - Trace datasheet-response-trace-poc/v2
free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 a62ad211daa6…Medium confidence4,165 selected pixels of 4,165

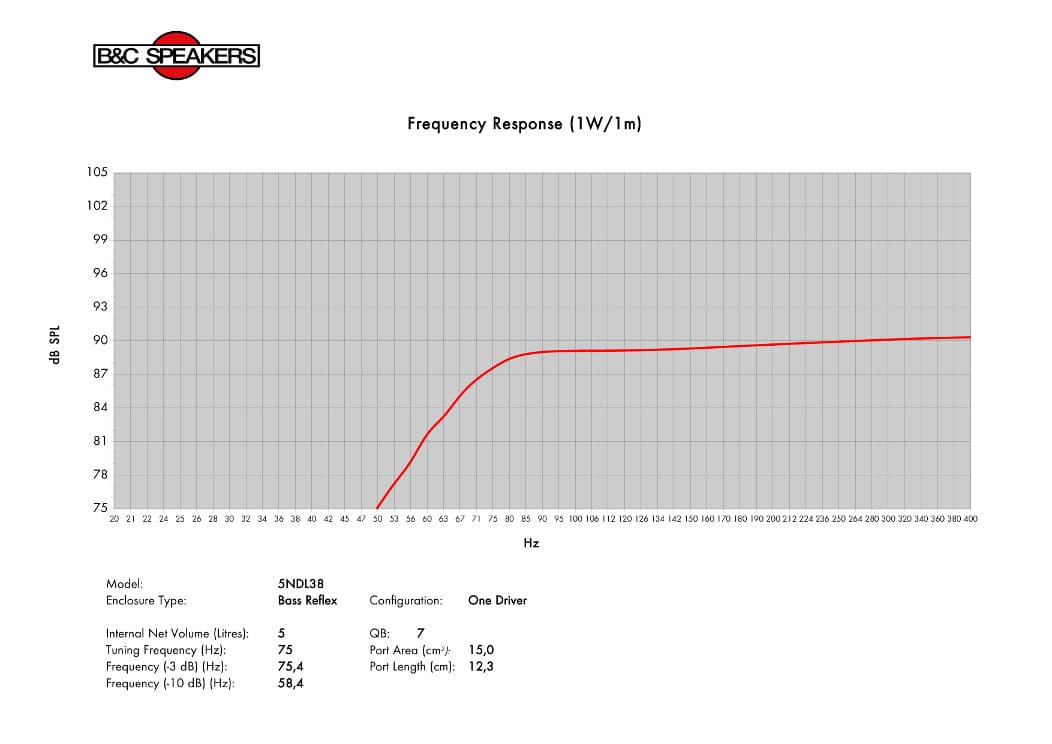

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs80Hz
Qts0.36
Qes0.37
Qms9.2
Vas4.3L
Re5.5Ω
Le0.64mH
BL9.2Tm
Sd95cm²
Mms11g
Xmax3.5mm
SPL90dB
Power90W
Power Nominal90W
Impedance8Ω
Min Impedance6.3Ω
F Low80Hz
F High7000Hz
Voice Coil38mm
Flux Density1.25T
Pricing & availability
Price definitionsPrice movement
Other offers
5 vendorsthomann
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£85.00
inc VAT
In stock
thomann
Updated 21 Apr 2026· 8Ω
Source: inc VAT · 20%
£86.00
inc VAT
jpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£94.38
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£94.38
inc VAT
In stock
partsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£114.32
inc VAT
2 in stock
Best current price
Updated 11 Sept 2026
bluearan
£85.00
Avg £93.18£8.18 below avg (-8.8%)
inc VAT·approx 2 months
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.9kg
Diameter155.0mm
Overall Depth75.0mm
Cutout Diameter122.0mm
Bolt Circle Diameter142.0mm
Additional Manufacturer Specs
Bl9.2 Tm
Fs80 Hz
Le0.64 mH
Re5.5 Ω
Sd95 cm² (14.73 in²)
Ebp216 Hz
Mms11 g
Qes0.37
Qms9.2
Qts0.36
Vas4.3 dm³ (0.15 ft³)
η00.55 %
ConeRCK005NDL388
Xmax3.5 mm
Xvar4 mm
SpiderSingle
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth10 mm (0.37 in)
Surround ShapeRoll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Ring
Nominal Diameter127 mm (5 in)
Winding MaterialAluminium
Magnetic Gap Depth6 mm (0.24 in)
Recommended Tuning80 Hz
Bolt Circle Diameter142 mm (5.6 in)
Recommended Enclosure5 dm³ (0.18 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter122 mm (4.8 in)
Flange And Gasket Thickness9 mm (0.35 in)
Air Volume Occupied By Driver0.35 dm³ (0.01 ft³)
