Overview
LF Driver5MDN series
B&C
B&C 5MDN38
B&C 5MDN38 is a 5" 8 ohm LF driver rated at 90W RMS. The validated T/S data includes Fs 175Hz, Qts 0.31, Vas 1.4L, Xmax 3.5mm, sensitivity 95.2dB, plus 33cm³ Vd and 486 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £83.38.
Size
5"
Impedance
8Ω
RMS Power
90W
Sensitivity
95.2dB
97.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
486
Vented alignment
Vd
33cm³

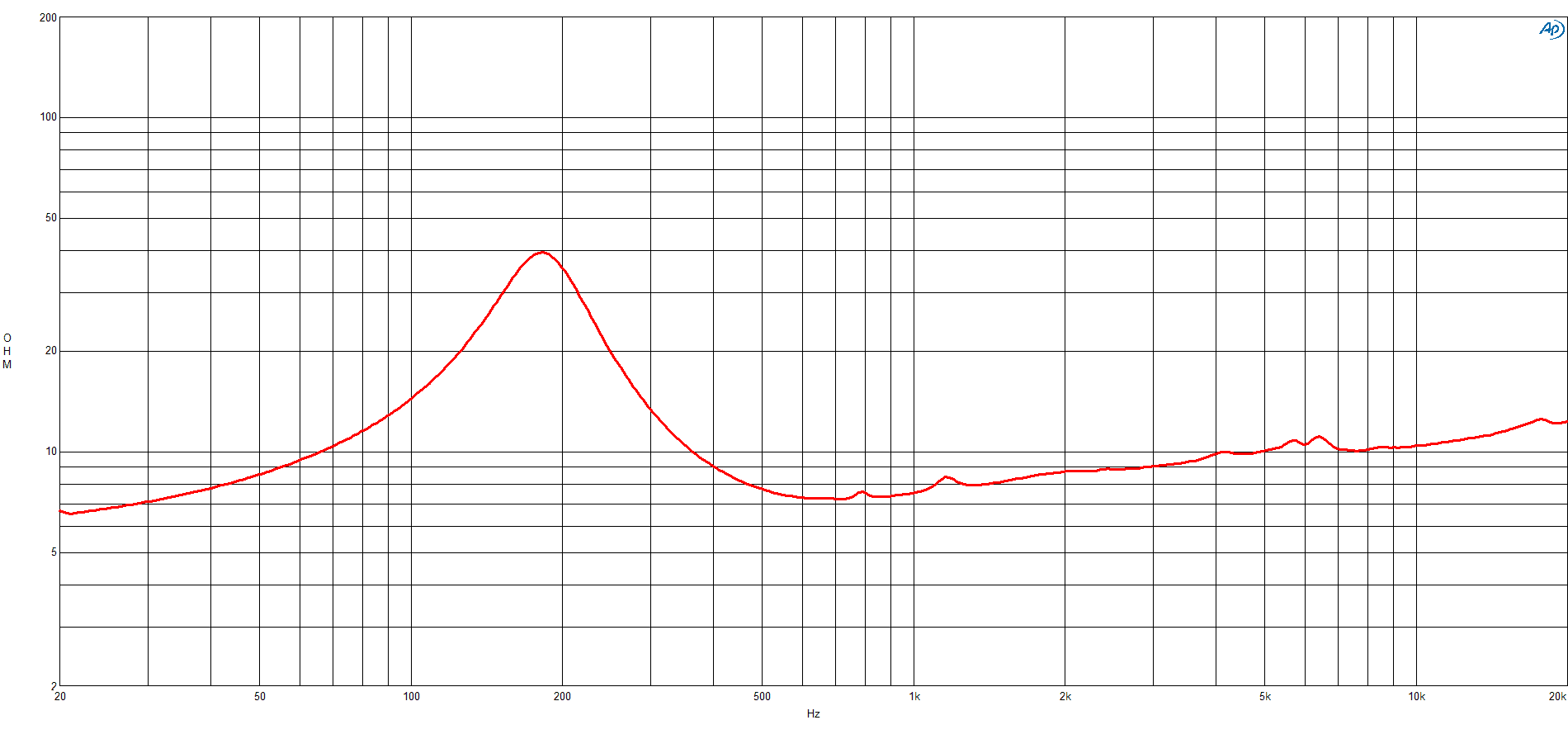

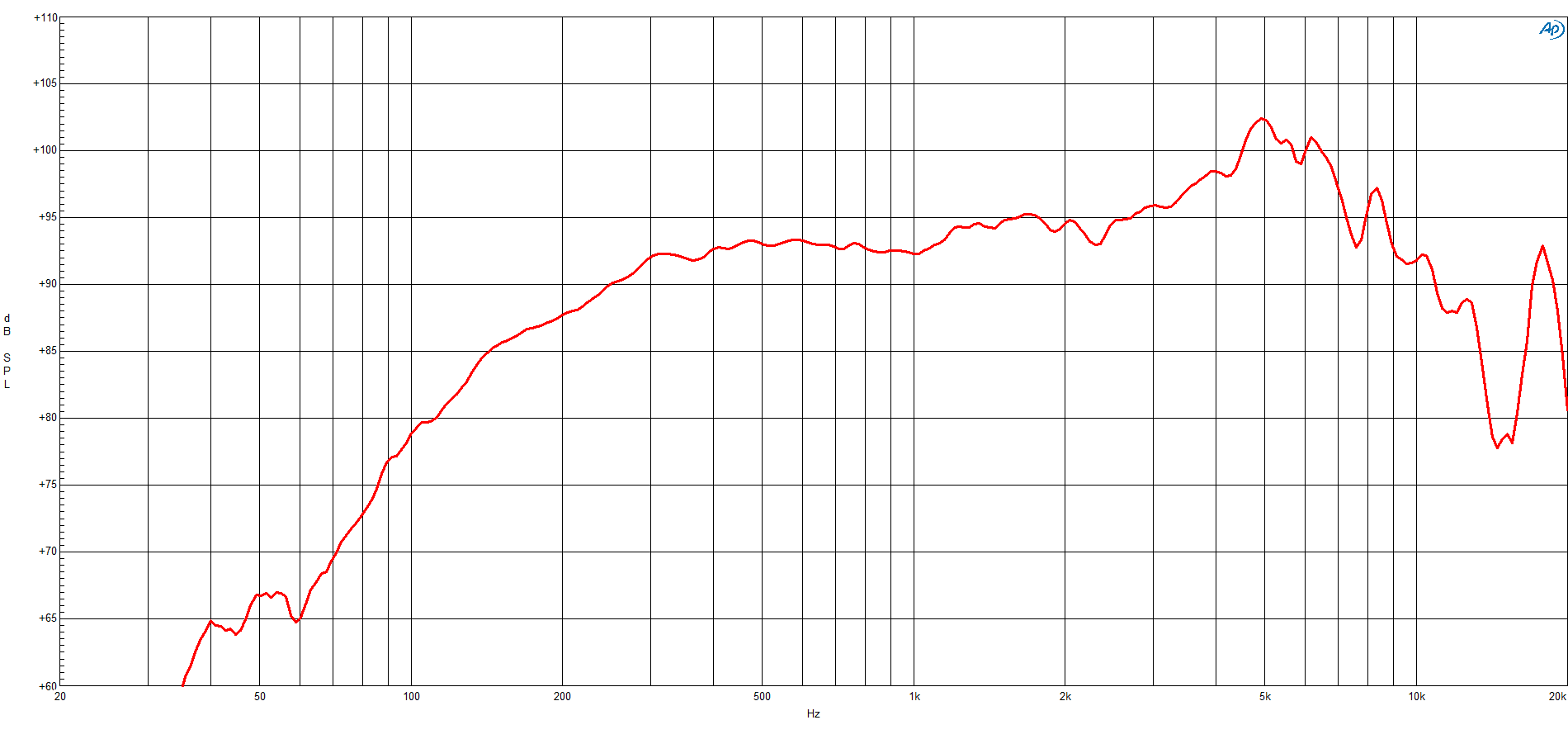

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs175Hz
Qts0.31
Qes0.36
Qms2.3
Vas1.4L
Re5.5Ω
Le0.40mH
BL11.1Tm
Sd95cm²
Mms8g
Xmax3.5mm
SPL95dB
Power90W
Power Nominal90W
Impedance8Ω
Min Impedance7.0Ω
F Low175Hz
F High10000Hz
Voice Coil38mm
Flux Density1.25T
Pricing & availability
Price definitionsPrice movement
Other offers
5 vendorsthomann
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£86.00
inc VAT
In stock
thomann
Updated 20 Apr 2026· 8Ω
Source: inc VAT · 20%
£86.00
inc VAT
jpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£93.13
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£93.13
inc VAT
In stock
partsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£112.19
inc VAT
1 in stock
Best current price
Updated 11 Sept 2026
bluearan
£83.38
Avg £92.31£8.93 below avg (-9.7%)
inc VAT·1 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.9kg
Diameter155.0mm
Overall Depth75.0mm
Cutout Diameter122.0mm
Bolt Circle Diameter142.0mm
Additional Manufacturer Specs
Bl11.1 Tm
Fs175 Hz
Le0.4 mH
Re5.5 Ω
Sd95 cm² (14.7 in²)
Ebp486 Hz
Mms8 g
Qes0.36
Qms2.3
Qts0.31
Vas1.4 dm³ (0.05 ft³)
η02 %
ConeRCK005MDN388
Xmax3.5 mm
Xvar4 mm
SpiderSingle
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth10 mm (0.4 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Ring
Nominal Diameter127 mm (5 in)
Winding MaterialAluminium
Magnetic Gap Depth6 mm (0.24 in)
Bolt Circle Diameter142 mm (5.6 in)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter122 mm (4.8 in)
Flange And Gasket Thickness9 mm (0.35 in)
Air Volume Occupied By Driver0.35 dm³ (0.01 ft³)
