5-inch LF driver · RS series · 120 W

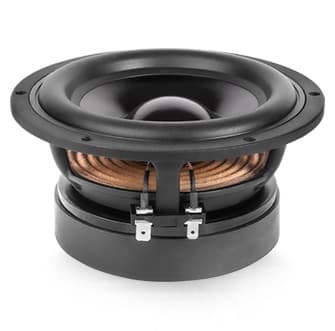

FaitalPRO 5RS150 8Ω
8 Ω · 45–9000 Hz
No current price
- Fs
- 46Hz
- Xmax
- 8mm
- SPL
- 87dB
- Pe
- 120W
- BL
- 10T·m
- Vd
- 70cm³
- Qts
- 0.30
- Vas
- 9L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
0 degrees
Frequency response
157 plotted pointsSource file SHA-256 fd71877dd7b5…Medium confidence528 selected pixels of 934 - Trace datasheet-response-trace-poc/v2
45 degrees
Frequency response
240 plotted pointsSource file SHA-256 fd71877dd7b5…Medium confidence1,218 selected pixels of 1,218 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 fd71877dd7b5…Medium confidence1,305 selected pixels of 1,305

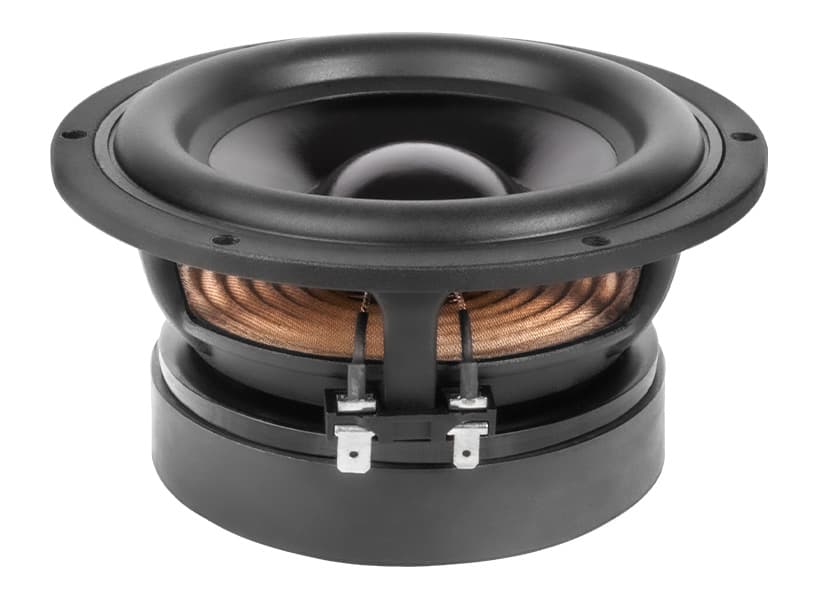

FaitalPRO 5RS150 is a 5-inch 8 ohm LF driver rated at 120 W RMS. The validated T/S data includes Fs 46 Hz, Qts 0.30, Vas 9.2 L, Xmax 8 mm, sensitivity 86.5 dB, plus 70 cm³ Vd and 144 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 46Hz
- Qts
- 0.30
- Qes
- 0.32
- Qms
- 5
- Vas
- 9.2L
- Re
- 7.9Ω
- Le
- 0.45mH
Motor and cone
- BL
- 10T·m
- Sd
- 88cm²
- Mms
- 14g
- Xmax
- 8mm
- Vd †
- 70cm³
Power and response
- Sensitivity †
- 86.5dB
- Manufacturer sensitivity
- 87dB
- Power
- 120W
- Impedance
- 8Ω
- Range
- 45–9000Hz
- EBP †
- 144 · Leans vented
Size and mounting
- Diameter
- 146mm
- Cutout
- 124mm
- Bolt circle
- 137mm
- Depth
- 83mm
- Weight
- 1.9kg
Other published values
- Cms
- 0.86mm/N
- Rms
- 0.86kg/s
- Power Program
- 240
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 5″
- BL
- 10T·m
- Fs
- 46Hz
- Le
- 0.45mH
- Re
- 7.9Ω
- Sd
- 88cm²
- Cms
- 0.86mm/N
- Mms
- 14g
- Qes
- 0.32
- Qms
- 5
- Qts
- 0.30
- Rms
- 0.86kg/s
- SPL
- 86.5dB
- Vas
- 9.2L
- Xmax
- 8mm
- Power
- 120W
- Impedance
- 8Ω
- Sensitivity
- 87dB
- Low limit
- 45Hz
- Power Program
- 240
- Calculated sensitivity †
- 86.5dB
- High limit
- 9000Hz
- Manufacturer sensitivity
- 87dB
- Weight
- 1.9kg
- Diameter
- 146mm
- Depth
- 83mm
- Cutout
- 124mm
- Bolt circle
- 137mm
02
Compare
Same-size drivers, compared with the 5RS150. Clear differences are green when better and red when worse.
This driver5RS150
Best price
–
Fs
46 Hz
Qts
0.30
Vas
9.2 L
BL
10 T·m
Xmax
8 mm
Sensitivity
86.5 dB
Power
120 W
Sica5 F 1.5 CP
£38.95Fs61 Hz +33%, worse
Qts0.30 –
Vas6.8 L −26%, better
BL7.6 T·m −24%, worse
Xmax3.5 mm −56%, worse
Sensitivity88.7 dB +2.2, better
LavoceWSN041.00
£46.94Fs104 Hz +126%, worse
Qts0.30 –
Vas1.8 L −81%, better
BL8.3 T·m −17%, worse
Xmax4 mm −50%, worse
Sensitivity90 dB +3.5, better
CIAREHWB130
£60.98Fs48 Hz +4%
Qts0.30 –
Vas12.5 L +36%, worse
BL7.2 T·m −28%, worse
Xmax4.5 mm −44%, worse
Sensitivity88.4 dB +1.9
FaitalPRO5PR160
£66.06Fs90 Hz +96%, worse
Qts0.31 +3%
Vas3.7 L −60%, better
BL9.6 T·m −4%
Xmax5.1 mm −36%, worse
Sensitivity91.2 dB +4.7, better

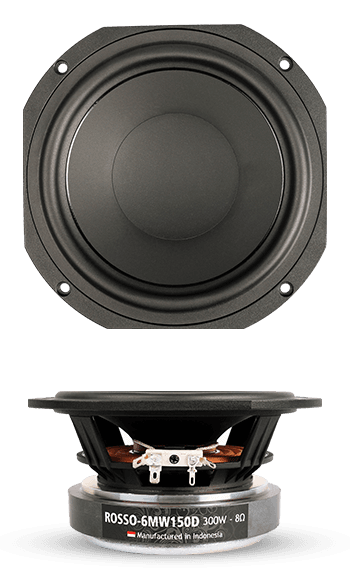

SB AudienceROSSO-6MW150D
£67.15Fs66 Hz +43%, worse
Qts0.32 +7%
Vas8.8 L −4%
BL11.6 T·m +16%, better
Xmax5.2 mm −35%, worse
Sensitivity90.9 dB +4.4, better
PRV Audio6MB550FT
£68.08Fs85 Hz +85%, worse
Qts0.34 +13%, worse
Vas8.2 L −11%, better
BL9.8 T·m –
Xmax5.4 mm −32%, worse
Sensitivity93.3 dB +6.8, better
B&C5FG44
£75.38Fs63 Hz +37%, worse
Qts0.27 −10%
Vas6.3 L −32%, better
BL10 T·m –
Xmax3 mm −63%, worse
Sensitivity89.2 dB +2.7, better
REDCATT6FHM
£83.00Fs36 Hz −22%, better
Qts0.29 −3%
Vas26.1 L +184%, worse
BL9.9 T·m –
Xmax4.3 mm −47%, worse
Sensitivity88.3 dB +1.8
FaitalPRO6PR160
£83.85Fs90 Hz +96%, worse
Qts0.33 +10%, worse
Vas5.9 L −36%, better
BL11 T·m +10%, better
Xmax5 mm −38%, worse
Sensitivity92.9 dB +6.4, better
FaitalPRO6RS140
£84.31Fs65 Hz +41%, worse
Qts0.27 −10%
Vas9.3 L –
BL11 T·m +10%, better
Xmax5.6 mm −30%, worse
Sensitivity91.6 dB +5.1, better
CIAREHWG130
£91.47Fs40 Hz −13%, better
Qts0.28 −7%
Vas12.5 L +36%, worse
BL7.8 T·m −22%, worse
Xmax6.5 mm −19%, worse
Sensitivity86.3 dB –
SB AcousticsMR13PNW-8
£115.00Fs47 Hz –
Qts0.30 –
Vas12.9 L +40%, worse
BL6.2 T·m −38%, worse
Xmax6 mm −25%, worse
Sensitivity88.2 dB +1.7
WavecorWF152BD04
£144.41Fs50 Hz +9%
Qts0.31 +3%
Vas11.4 L +24%, worse
BL7.3 T·m −27%, worse
Xmax4.5 mm −44%, worse
Sensitivity88.4 dB +1.9
Beyma5CX200ND
£220.02Fs75 Hz +63%, worse
Qts0.28 −7%
Vas9.1 L –
BL7.3 T·m −27%, worse
Xmax5.7 mm −29%, worse
Sensitivity93.4 dB +6.9, better
PurifiPTT4.0X04-NFC-01
£254.04Fs38 Hz −17%, better
Qts0.30 –
Vas6.4 L −30%, better
BL6 T·m −40%, worse
Xmax8.8 mm +10%, better
Sensitivity82.4 dB −4.1, worse
PurifiPTT5.25X08-NAA-05
£338.74Fs30 Hz −35%, better
Qts0.30 –
Vas12.4 L +35%, worse
BL9.1 T·m −9%
Xmax9.8 mm +23%, better
Sensitivity82.2 dB −4.3, worse
PurifiPTT5.25X08-NFA-01
£338.74Fs32 Hz −30%, better
Qts0.27 −10%
Vas13.2 L +43%, worse
BL9 T·m −10%, worse
Xmax9.8 mm +23%, better
Sensitivity83.9 dB −2.6, worse
PurifiPTT5.25M08-NAA-05
No current priceFs41 Hz −11%, better
Qts0.29 −3%
Vas9.4 L –
BL9.5 T·m −5%
Xmax2.9 mm −64%, worse
Sensitivity85.4 dB −1.1
Sica6 NR 2 PL
No current priceFs61 Hz +32%, worse
Qts0.33 +10%, worse
Vas9.4 L –
BL9.9 T·m –
Xmax4 mm −50%, worse
Sensitivity89.9 dB +3.4, better
Acoustic EleganceTD6M-8
No current priceFs76 Hz +65%, worse
Qts0.27 −10%
Vas9.2 L –
BL10.6 T·m +6%
Xmax3 mm −63%, worse
Sensitivity93.5 dB +7, better
Sica6 N 2 PL
No current priceFs68 Hz +48%, worse
Qts0.33 +10%, worse
Vas8.7 L −5%
BL9.5 T·m −5%
Xmax3.5 mm −56%, worse
Sensitivity90.8 dB +4.3, better
PeerlessNSM-0515R00-04
No current priceFs110 Hz +139%, worse
Qts0.30 –
Vas2.1 L −77%, better
BL8.7 T·m −13%, worse
Xmax6.0 mm −25%, worse
Sensitivity91.6 dB +5.1, better
PurifiPTT4.0X04-NAC-03
No current priceFs40 Hz −13%, better
Qts0.31 +3%
Vas5.5 L −40%, better
BL6.1 T·m −39%, worse
Xmax8.8 mm +10%, better
Sensitivity82.2 dB −4.3, worse
Audio Technology6 A 77 20 06 SD
No current priceFs34 Hz −26%, better
Qts0.32 +7%
Vas44 L +378%, worse
BL8 T·m −20%, worse
Xmax8 mm –
Sensitivity88.6 dB +2.1, better
WavecorWF152BD10
No current priceFs49 Hz +7%
Qts0.32 +7%
Vas9.6 L +4%
BL5.8 T·m −42%, worse
Xmax4.5 mm −44%, worse
Sensitivity87.4 dB +0.9
No current price
Fs32 Hz −30%, better
Qts0.33 +10%, worse
Vas18 L +96%, worse
BL8.7 T·m −13%, worse
Xmax7 mm −13%, worse
Sensitivity84.3 dB −2.2, worse
Tang BandW6-1914SB
No current priceFs70 Hz +52%, worse
Qts0.35 +17%, worse
Vas11.1 L +21%, worse
BL10.2 T·m –
Xmax0.5 mm −94%, worse
Sensitivity92.2 dB +5.7, better
HiViS5N
No current priceFs49 Hz +7%
Qts0.34 +13%, worse
Vas8.9 L −3%
BL7.7 T·m −23%, worse
Xmax2.7 mm −66%, worse
Sensitivity86.8 dB –
PurifiPTT5.25X04-NAA-05
No current priceFs29 Hz −37%, better
Qts0.27 −10%
Vas11.8 L +28%, worse
BL7.9 T·m −21%, worse
Xmax9.8 mm +23%, better
Sensitivity82.1 dB −4.4, worse
