LF DriverPTT series
Purifi

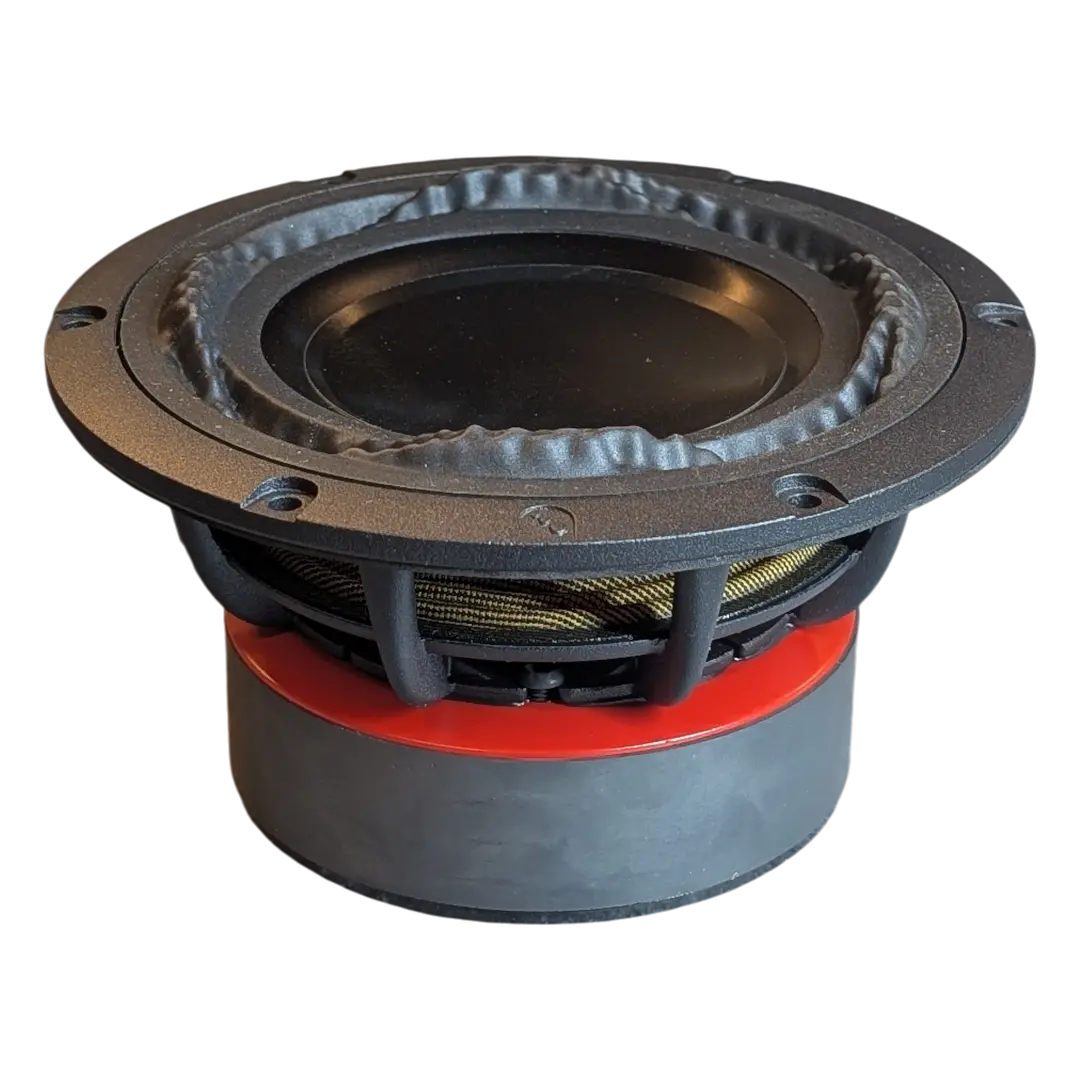

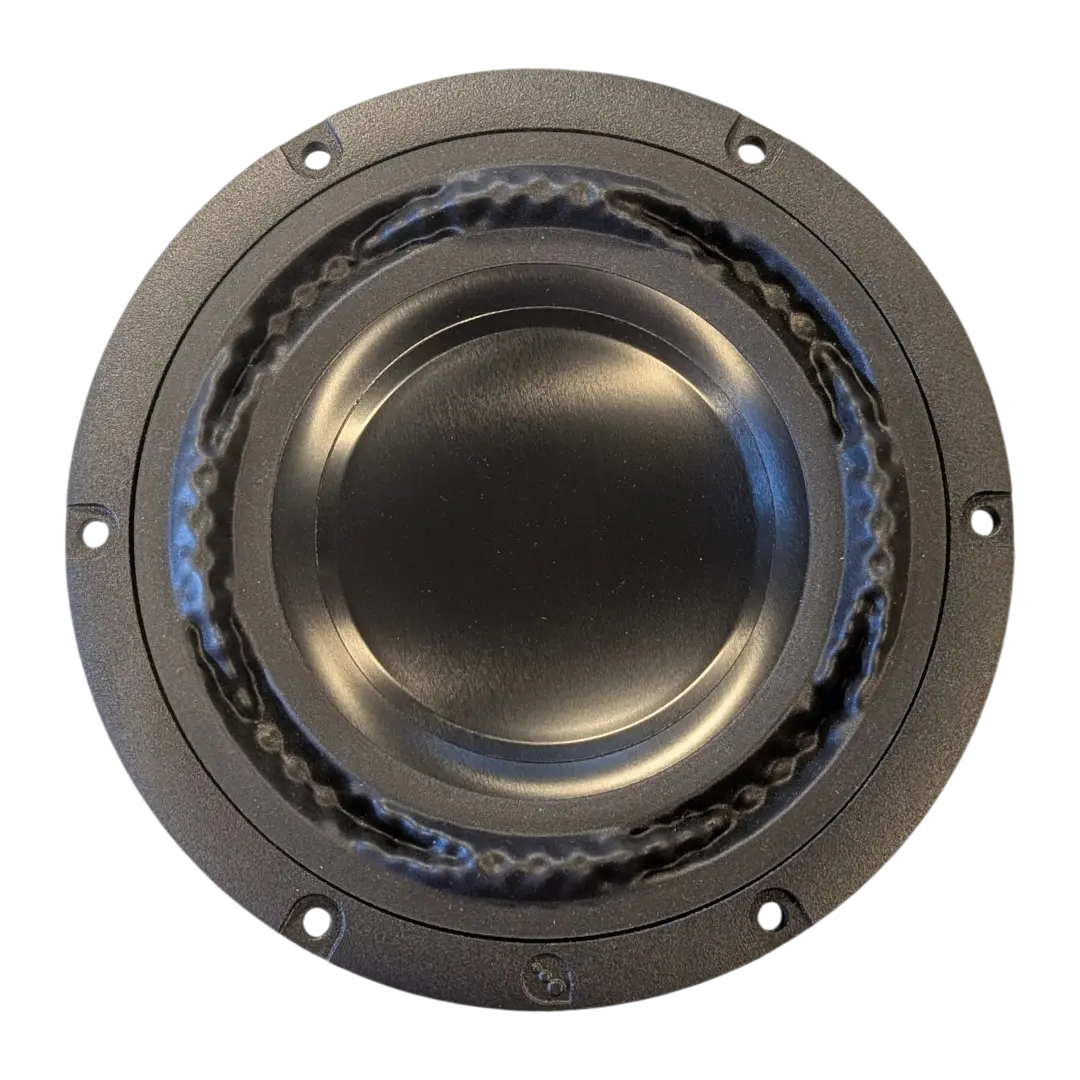

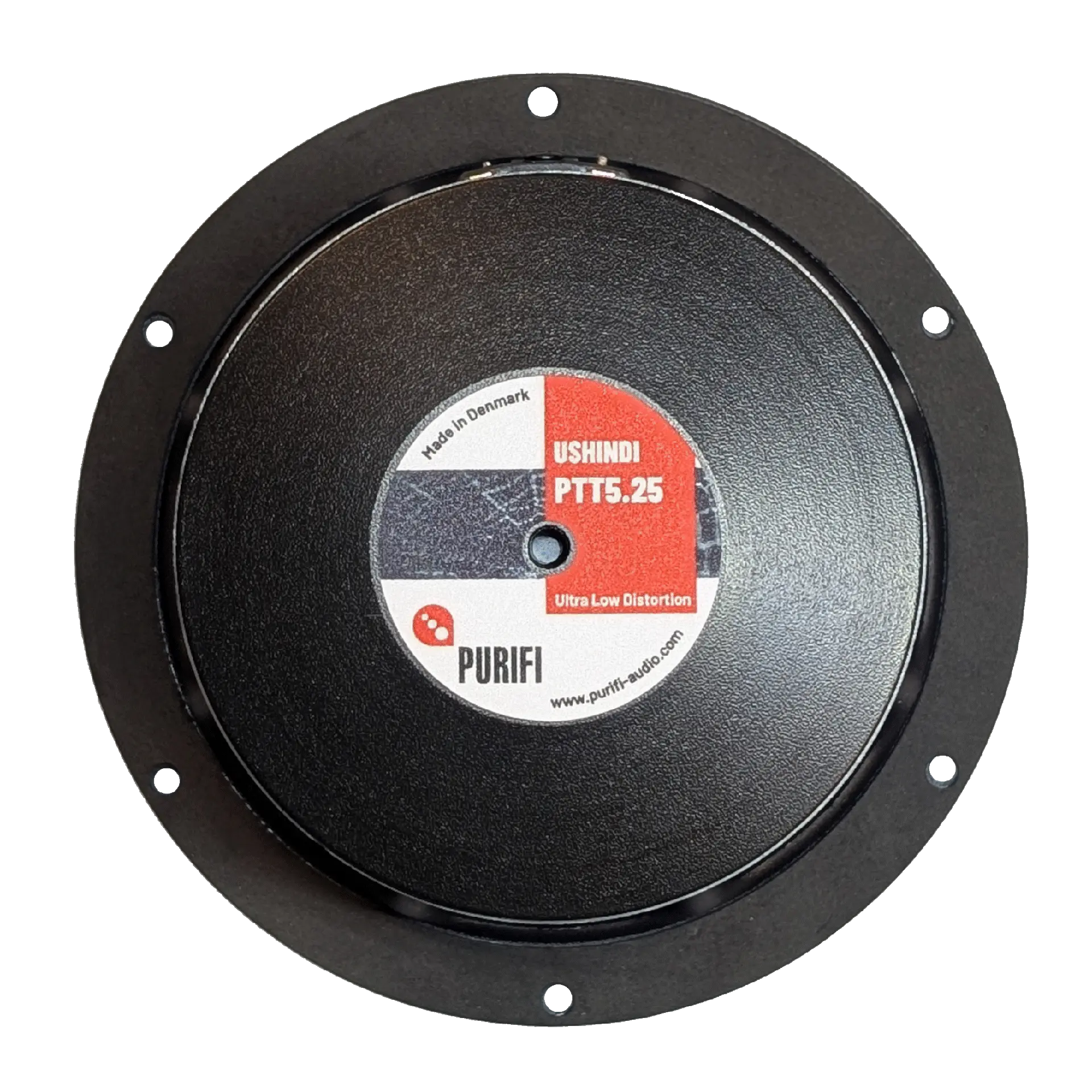

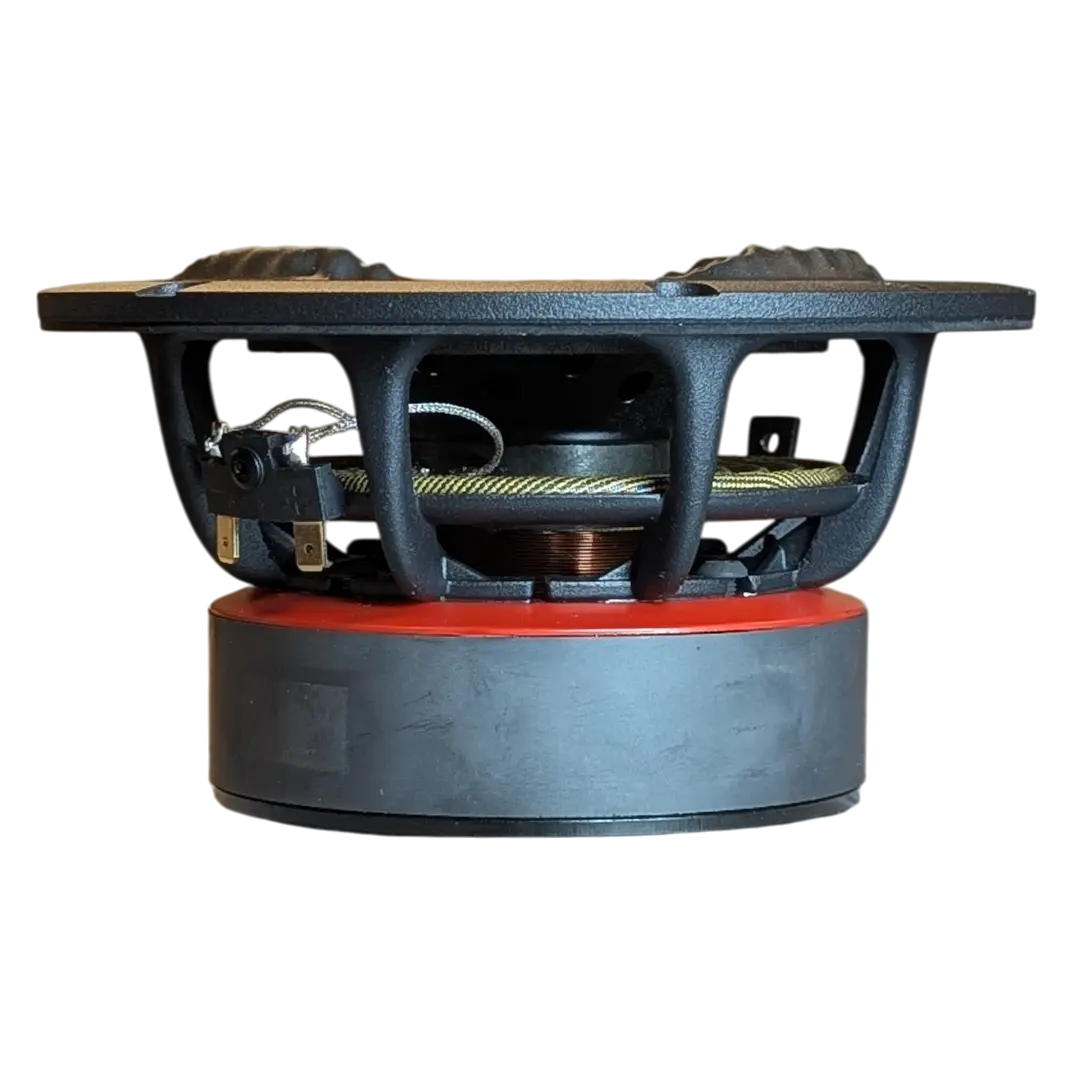

Purifi PTT5.25X08-NAA-05
Purifi PTT5.25X08-NAA-05 is a 5.25" 8 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 30Hz, Qts 0.30, Vas 12.4L, Xmax 9.8mm, sensitivity 82.2dB, plus 83cm³ Vd and 94 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5.25"
Impedance
8Ω
RMS Power
70W
Sensitivity
82.2dB
EBP
94
Either alignment
Vd
83cm³
T/S Parameters
Valid
Fs30Hz
Qts0.30
Qes0.32
Qms5.8
Vas12.4L
Re5.9Ω
Le0.50mH
BL9.1Tm
Sd85cm²
Mms24g
Xmax9.8mm
SPL82dB
Power70W
Impedance8Ω
Min Impedance6.8Ω
Voice Coil39mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.8kg
Diameter147.0mm
Cutout Diameter121.0mm
Bolt Circle Diameter138.0mm
