LF Driver
Sica
Sica 5 F 1.5 CP
Sica 5 F 1.5 CP is a 5" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 61Hz, Qts 0.30, Vas 6.8L, Xmax 3.5mm, sensitivity 88.7dB, plus 27cm³ Vd and 185 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
100W
Sensitivity
88.7dB
90.3dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
185
Vented alignment
Vd
27cm³
T/S Parameters
Valid
Fs61Hz
Qts0.30
Qes0.33
Qms4.2
Vas6.8L
Re5.6Ω
Le0.48mH
BL7.6Tm
Sd79cm²
Mms9g
Xmax3.5mm
SPL89dB
Power100W
Impedance8Ω
Voice Coil38mm
Flux Density1.05T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.4kg
Diameter132.0mm
Overall Depth65.5mm
Cutout Diameter113.0mm
Bolt Circle Diameter139.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
5 F 1.5 CP
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
81%
Similarity
£289.95
Scanspeak
12MU/8731T00
5"
Xmax3.4mm-3%
Qts0.29-3%
BL6.1Tm-19%
Vas5.8L-15%
Qes0.31-6%
74%
Similarity
Sica
5 NR 1.5 PL
5"
Xmax3.5mm0%
Qts0.35+17%
BL6.7Tm-12%
Vas7.4L+9%
Qes0.39+18%
66%
Similarity
£63.95
Scanspeak
12W/8524G00
5"
Xmax3mm-14%
Qts0.32+7%
BL5.4Tm-29%
Vas8.2L+21%
Qes0.35+6%
65%
Similarity
£81.02
B&C
5FG44
5"
Xmax3mm-14%
Qts0.27-10%
BL10Tm+32%
Vas6.3L-7%
Qes0.3-9%
63%
Similarity
SEAS
H1152-08 CA12RCY
4.5"
Xmax3mm-14%
Qts0.31+3%
BL6.3Tm-16%
Vas5L-26%
Qes0.36+9%
63%
Similarity
Purifi
PTT4.0M08-NFC-01
4"
Xmax2.9mm-17%
Qts0.31+3%
BL7Tm-8%
Vas5.3L-22%
Qes0.330%
62%
Similarity
£85.00

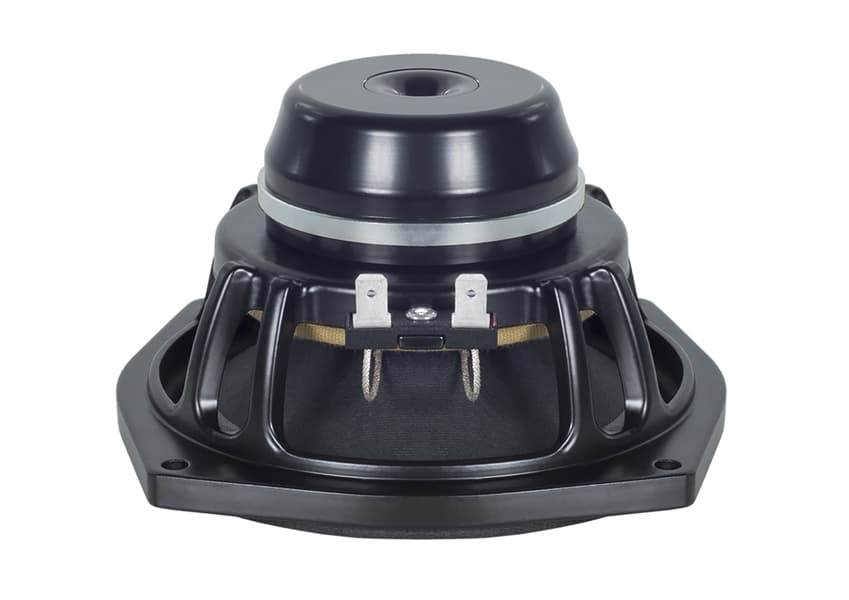

B&C
5NDL38
5"
Xmax3.5mm0%
Qts0.36+20%
BL9.2Tm+22%
Vas4.3L-37%
Qes0.37+12%
58%
Similarity
Purifi
PTT5.25M08-NAA-05
5.25"
Xmax2.9mm-17%
Qts0.29-3%
BL9.5Tm+25%
Vas9.4L+38%
Qes0.3-9%
58%
Similarity
Purifi
PTT4.0M08-NAC-03
4"
Xmax2.9mm-17%
Qts0.32+7%
BL7Tm-8%
Vas4.9L-28%
Qes0.34+3%
57%
Similarity
£289.95
Scanspeak
12MU/4731T00
5"
Xmax3.5mm0%
Qts0.24-20%
BL5.1Tm-33%
Vas5.4L-21%
Qes0.26-21%
57%
Similarity
Tang Band
W4-1798S
4"
Xmax3mm-14%
Qts0.30%
BL5.8Tm-24%
Vas7.4L+9%
Qes0.37+12%
57%
Similarity
Tang Band
W4-1798S
4"
Xmax3mm-14%
Qts0.30%
BL5.8Tm-24%
Vas7.4L+9%
Qes0.37+12%
