Overview
LF Driver
Tang Band

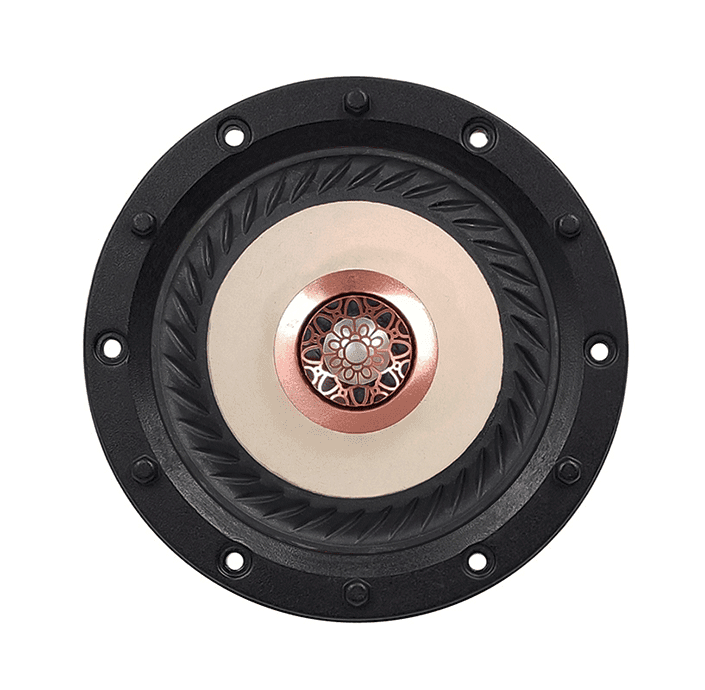

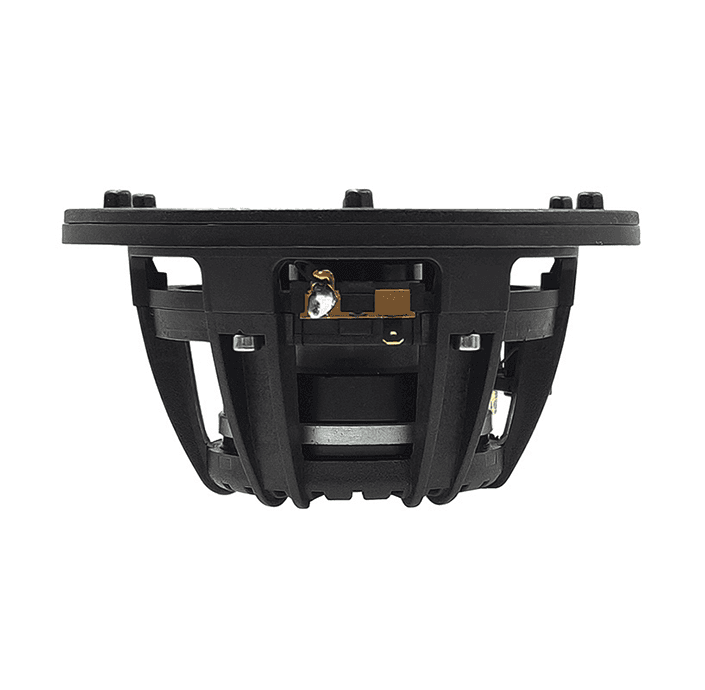

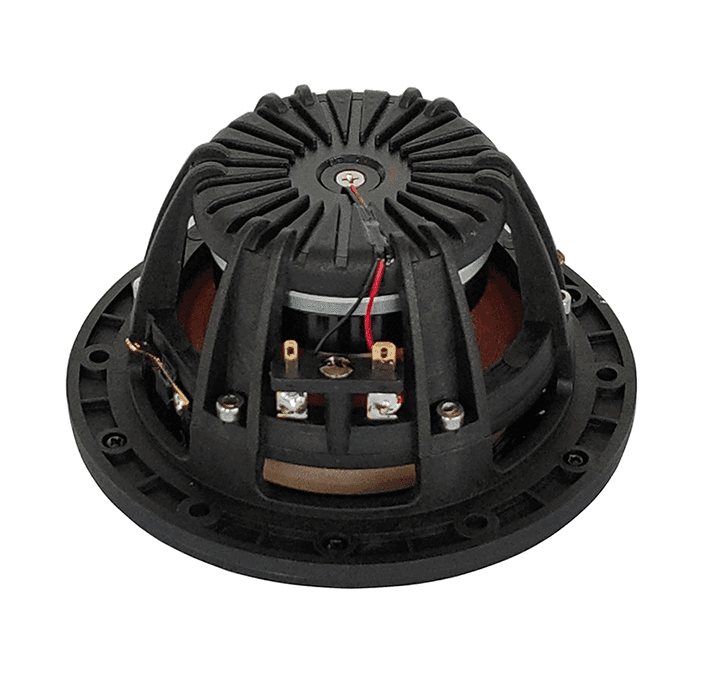

Tang Band W4-2315
Tang Band W4-2315 is a 4" 4 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 65Hz, Qts 0.29, Vas 5.0L, Xmax 2.8mm, sensitivity 88.5dB, plus 19cm³ Vd and 210 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
30W
Sensitivity
88.5dB
EBP
210
Vented alignment
Vd
19cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,967 selected pixels of 4,228
Overall Parameters
Valid
Fs65Hz
Qts0.29
Qes0.31
Qms3.7
Vas5.0L
Re3.6Ω
Le0.09mH
BL6.2Tm
Sd69cm²
Mms8g
Xmax2.8mm
SPL89dB
Power30W
Impedance4Ω
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFPrimary
4"Fs65 Hz
Qts0.29
Qes0.31
Qms3.7
Vas5.0 L
Re3.6 Ω
Le0.09 mH
BL6.2 Tm
Sd69 cm²
Mms8 g
Xmax2.8 mm
SPL89 dB
Power30 W
Impedance4 Ω
Power Peak60
