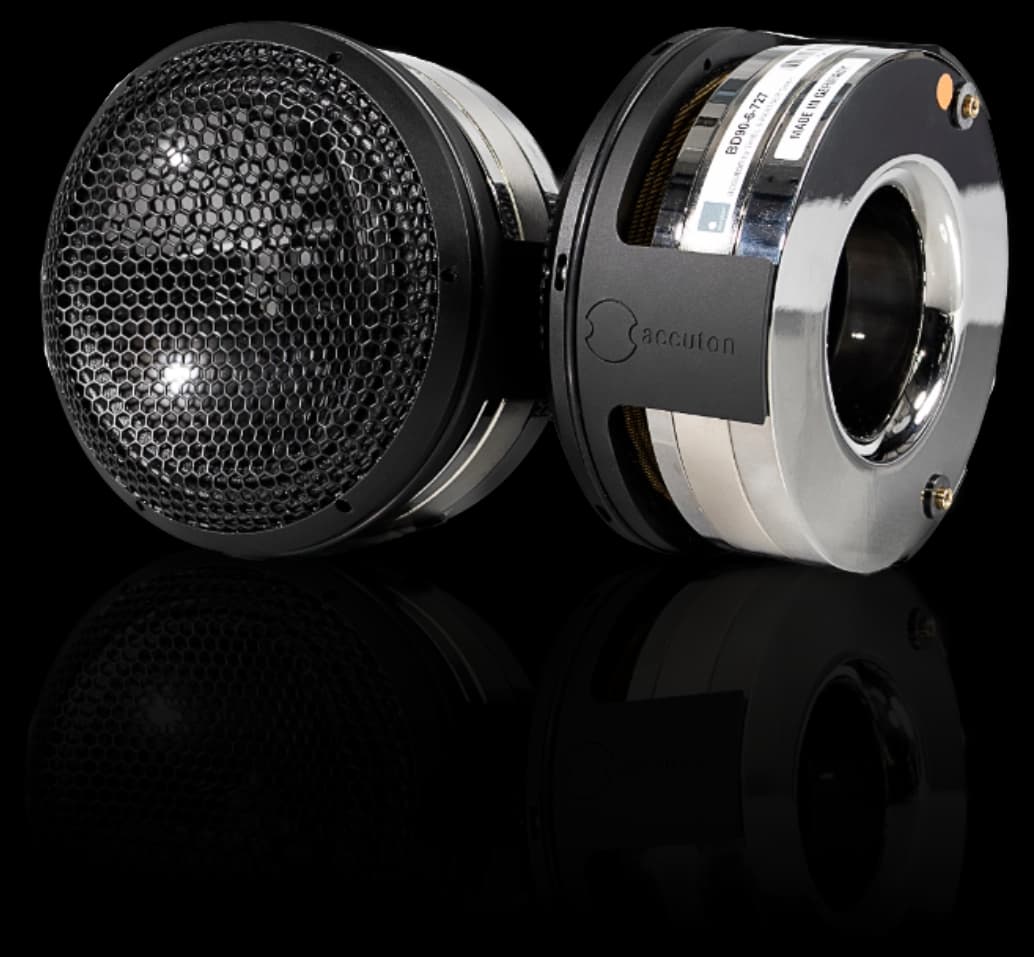

Accuton BD90-6-727 6Ω
6 Ω · 200–10000 Hz
No current price
- Fs
- 123Hz
- Xmax
- 3mm
- SPL
- 92dB
- Pe
- 100W
- BL
- 10.7T·m
- Vd
- 22cm³
- Qts
- 0.28
- Vas
- 2L

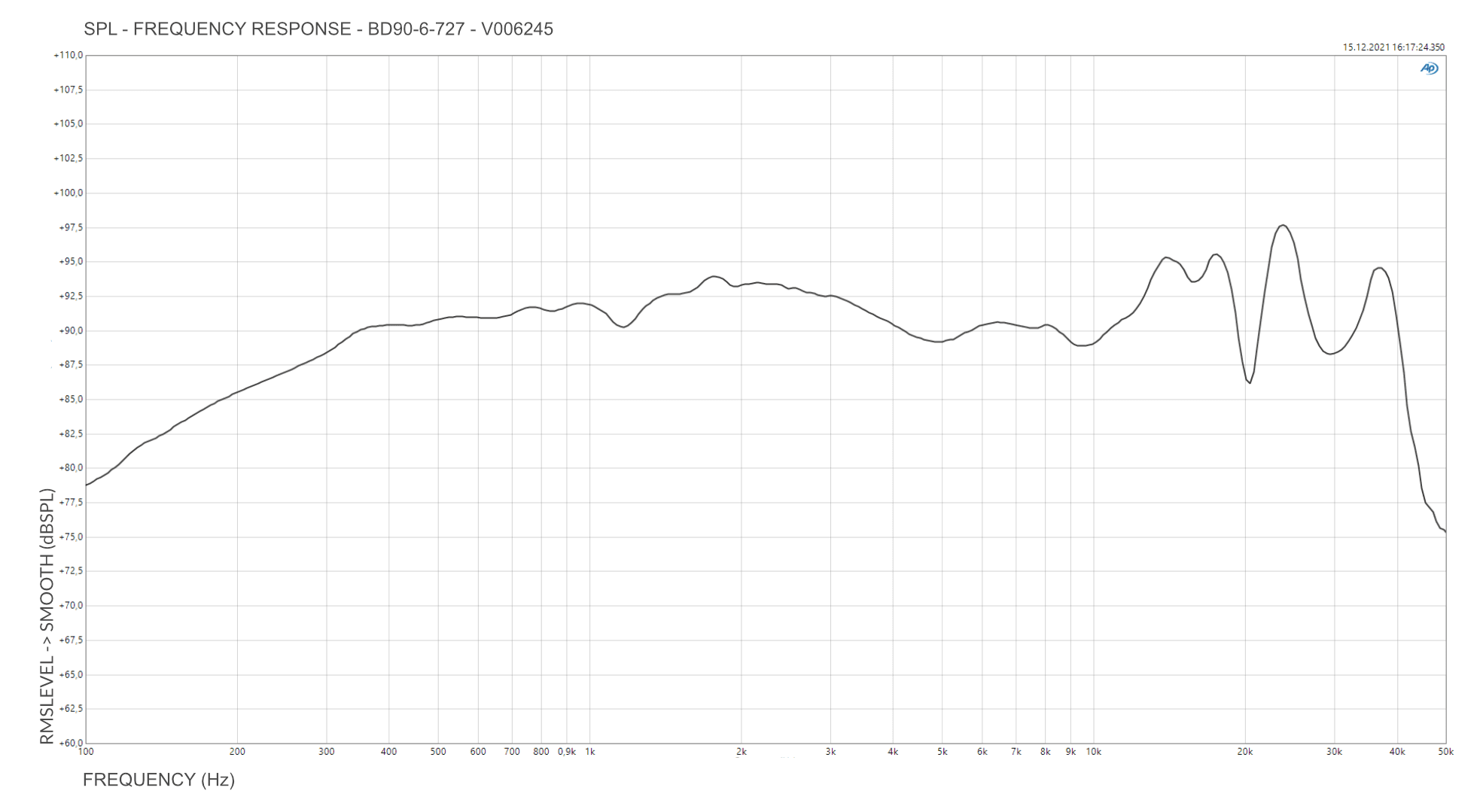

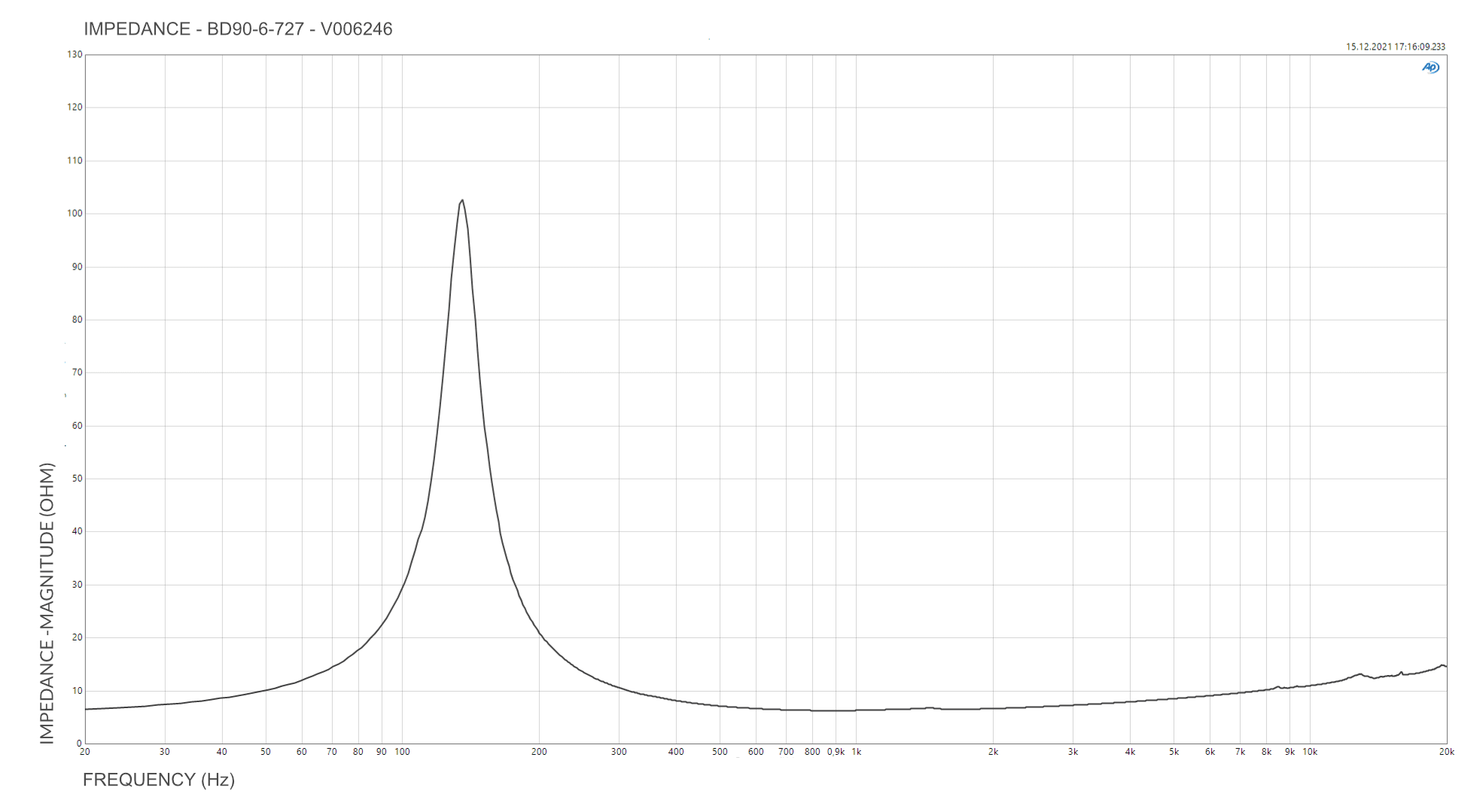

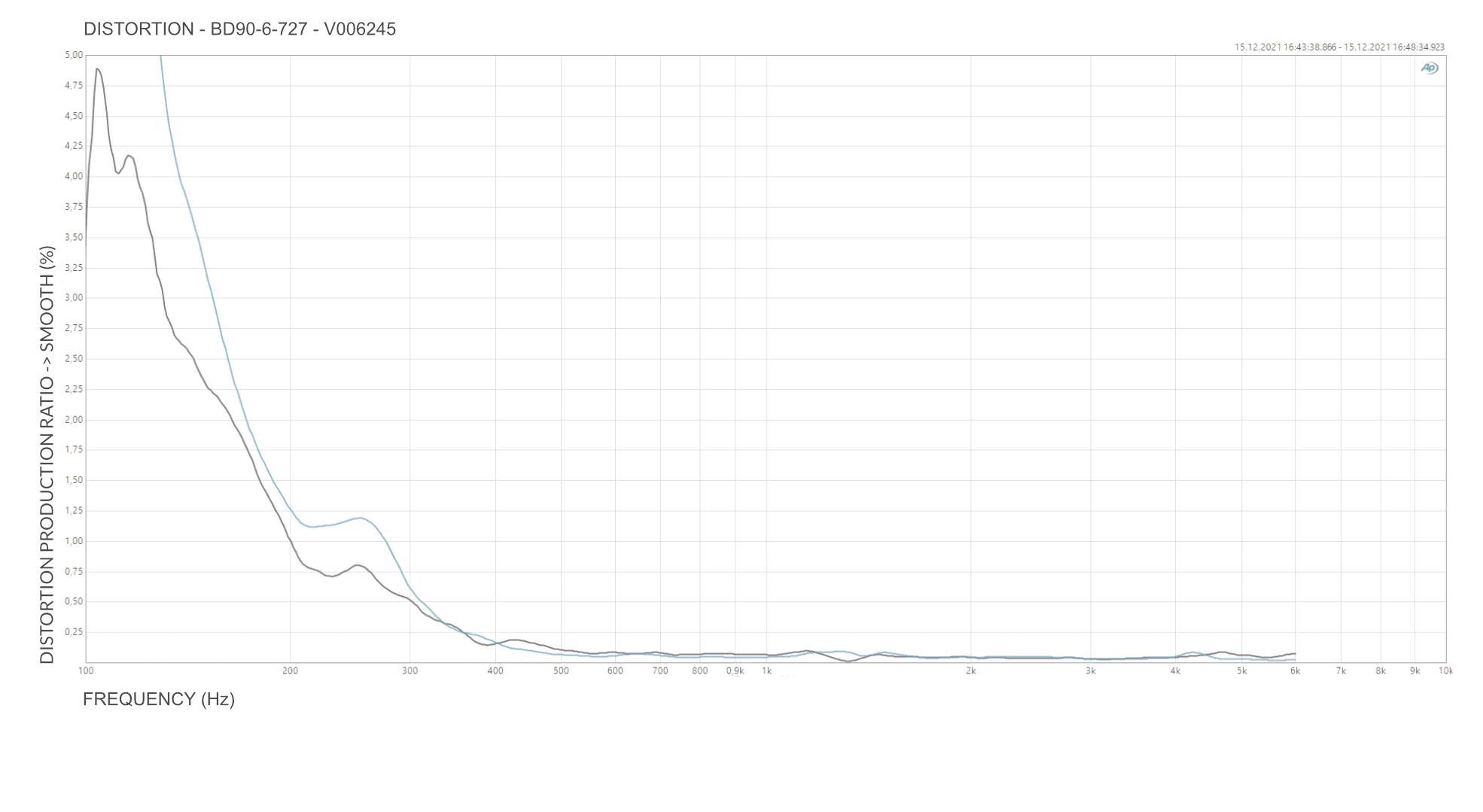

Published graphs
Accuton BD90-6-727 is a 5-inch 6 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 123 Hz, Qts 0.28, Vas 1.6 L, Xmax 3 mm, sensitivity 92 dB, plus 22 cm³ Vd and 410 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 123Hz
- Qts
- 0.28
- Qes
- 0.30
- Qms
- 4.5
- Vas
- 1.6L
- Re
- 5.5Ω
- Le
- 0.13mH
Motor and cone
- BL
- 10.7T·m
- Sd
- 73cm²
- Mms
- 8g
- Xmax
- 3mm
- Vd †
- 22cm³
- Voice coil
- 80mm
Power and response
- Sensitivity †
- 92dB
- Manufacturer sensitivity
- 92dB
- Power
- 100W
- Impedance
- 6Ω
- Range
- 200–10000Hz
- EBP †
- 410 · Leans vented
Size and mounting
- Diameter
- 124mm
- Cutout
- 124.4mm
- Depth
- 56mm
Other published values
- Cms
- 0.21mm/N
- Rms
- 1.37kg/s
† Calculated by bits from the published values
What this validation status means
Everything else Accuton lists
MF · Primary · 5″
- BL
- 10.7T·m
- Fs
- 123Hz
- Le
- 0.13mH
- Re
- 5.5Ω
- Sd
- 73cm²
- Cms
- 0.21mm/N
- Mms
- 8g
- Qes
- 0.30
- Qms
- 4.5
- Qts
- 0.28
- Rms
- 1.37kg/s
- SPL
- 92dB
- Vas
- 1.6L
- Xmax
- 3mm
- Power
- 100W
- Impedance
- 6Ω
- Sensitivity
- 92dB
- Low limit
- 200Hz
- Calculated sensitivity †
- 92dB
- High limit
- 10000Hz
- Manufacturer sensitivity
- 92dB
- Voice coil
- 80mm
- Diameter
- 124mm
- Depth
- 56mm
- Cutout
- 124.4mm
02
Compare
Same-size drivers, compared with the BD90-6-727. Clear differences are green when better and red when worse.
This driverBD90-6-727
Best price
–
Fs
123 Hz
Qts
0.28
Vas
1.6 L
BL
10.7 T·m
Xmax
3 mm
Sensitivity
92 dB
Power
100 W
B&C4NDF34
£43.19Fs110 Hz −11%, better
Qts0.27 −4%
Vas1.6 L –
BL9 T·m −16%, worse
Xmax3.8 mm +27%, better
Sensitivity90.8 dB −1.2
LavoceWSN041.00
£46.94Fs104 Hz −15%, better
Qts0.30 +7%
Vas1.8 L +12%, worse
BL8.3 T·m −22%, worse
Xmax4 mm +33%, better
Sensitivity90 dB −2, worse
Dayton AudioCF120-4
£52.89Fs53 Hz −57%, better
Qts0.28 –
Vas4.9 L +204%, worse
BL4.9 T·m −54%, worse
Xmax3.5 mm +17%, better
Sensitivity85.6 dB −6.4, worse
Scanspeak12W/4524G00
£55.90Fs50 Hz −59%, better
Qts0.27 −4%
Vas8.2 L +412%, worse
BL4.4 T·m −59%, worse
Xmax3 mm –
Sensitivity87.4 dB −4.6, worse
FaitalPRO5PR120
£71.14Fs100 Hz −19%, better
Qts0.27 −4%
Vas4.2 L +163%, worse
BL10 T·m −7%
Xmax3.1 mm +3%
Sensitivity93.8 dB +1.8
SB AcousticsSB17NRX2L35-8
£71.95Fs38 Hz −69%, better
Qts0.28 –
Vas26.1 L +1531%, worse
BL7.8 T·m −27%, worse
Xmax9.6 mm +220%, better
Sensitivity88.7 dB −3.3, worse
B&C5FG44
£75.38Fs63 Hz −49%, better
Qts0.27 −4%
Vas6.3 L +294%, worse
BL10 T·m −7%
Xmax3 mm –
Sensitivity89.2 dB −2.8, worse

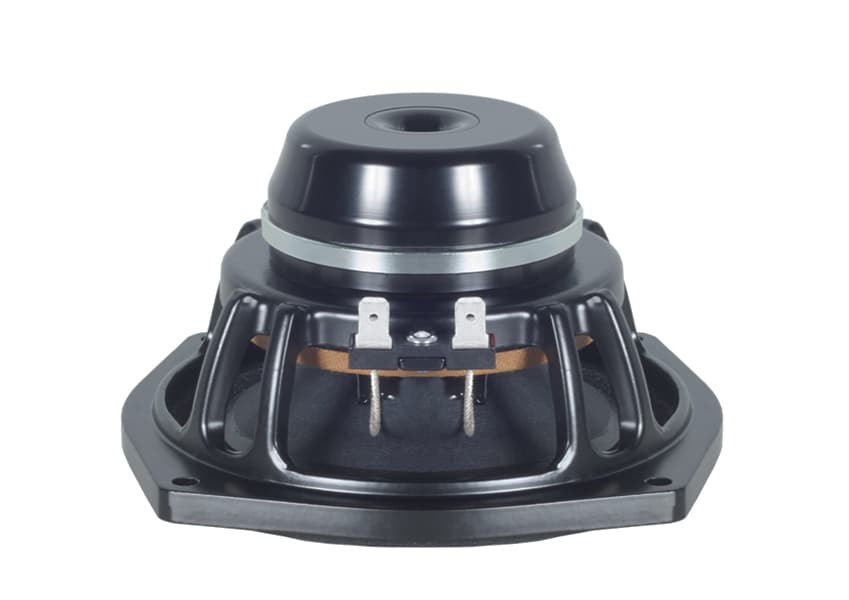

B&C5MDN38
