LF DriverCeramic series
Accuton

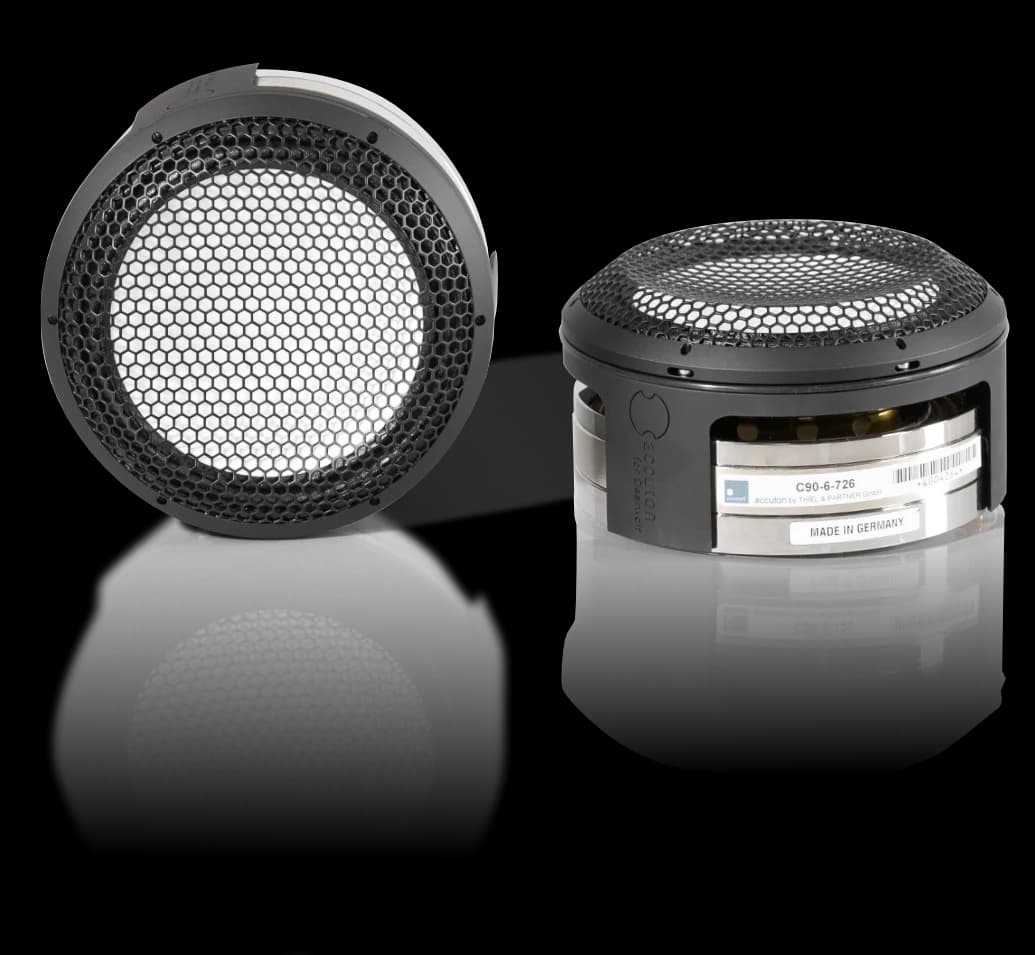

Accuton C90-6-726
Accuton C90-6-726 is a 5" 6 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 110Hz, Qts 0.19, Vas 2.4L, Xmax 3mm, sensitivity 94.1dB, plus 22cm³ Vd and 551 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
6Ω
RMS Power
100W
Sensitivity
94.1dB
EBP
551
Vented alignment
Vd
22cm³
T/S Parameters
Valid
Fs110Hz
Qts0.19
Qes0.20
Qms2.5
Vas2.4L
Re5.4Ω
Le0.14mH
BL11.1Tm
Sd73cm²
Mms7g
Xmax3.0mm
SPL94dB
Power100W
Impedance6Ω
Voice Coil80mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter124.0mm
Overall Depth53.0mm
Cutout Diameter124.4mm
