LF Driver
Fane

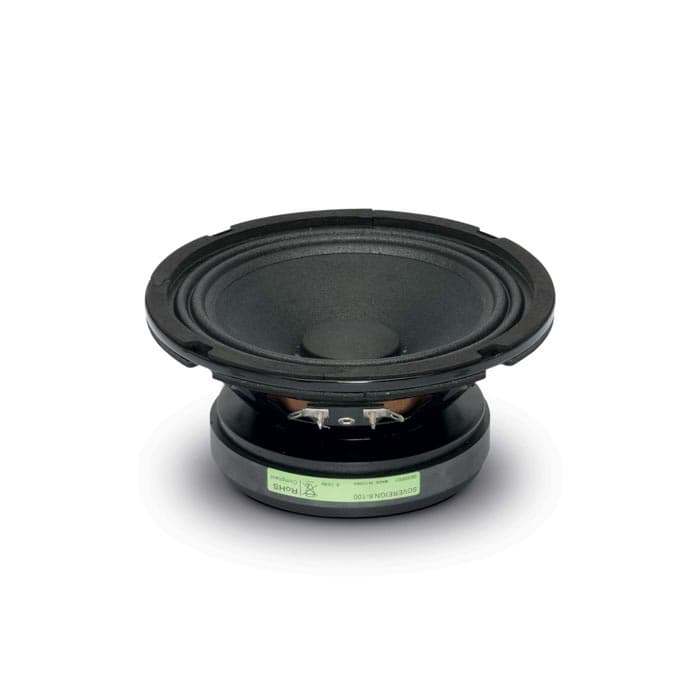

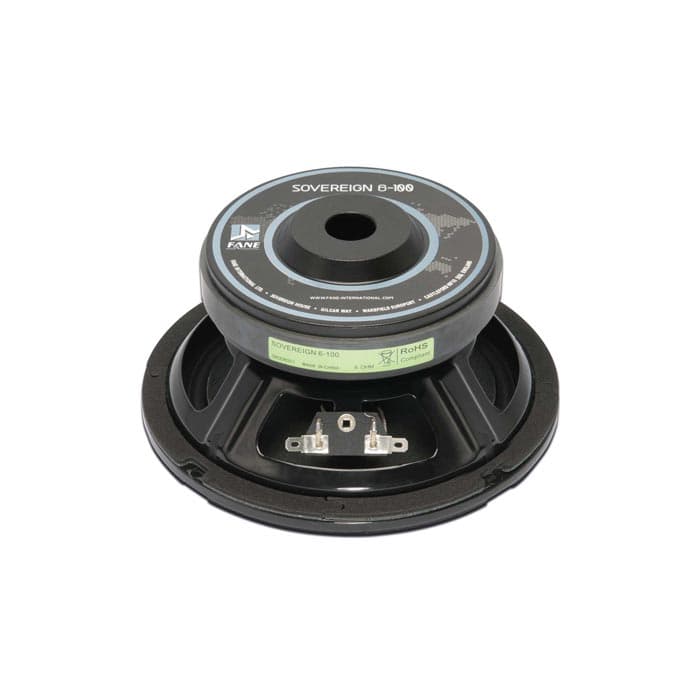

Fane SOVEREIGN 6-100
Fane SOVEREIGN 6-100 is a 6" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 115Hz, Qts 0.64, Vas 2.2L, Xmax 2.5mm, sensitivity 89dB, plus 35cm³ Vd and 172 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £42.00.
Size
6"
Impedance
8Ω
RMS Power
100W
Sensitivity
89.0dB
93.0dBmanufacturer; using T/S-derived value (4.0dB delta).
EBP
172
Vented alignment
Vd
35cm³
T/S Parameters
Valid
Fs115Hz
Qts0.64
Qes0.67
Qms12.8
Vas2.2L
Re6.9Ω
Le1.15mH
BL13.3Tm
Sd139cm²
Mms24g
Xmax2.5mm
SPL89dB
Power100W
Impedance8Ω
F Low60Hz
F High7000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£42.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.6kg
Diameter165.1mm
Overall Depth83.1mm
