LF DriverCN0617 series
Celestion

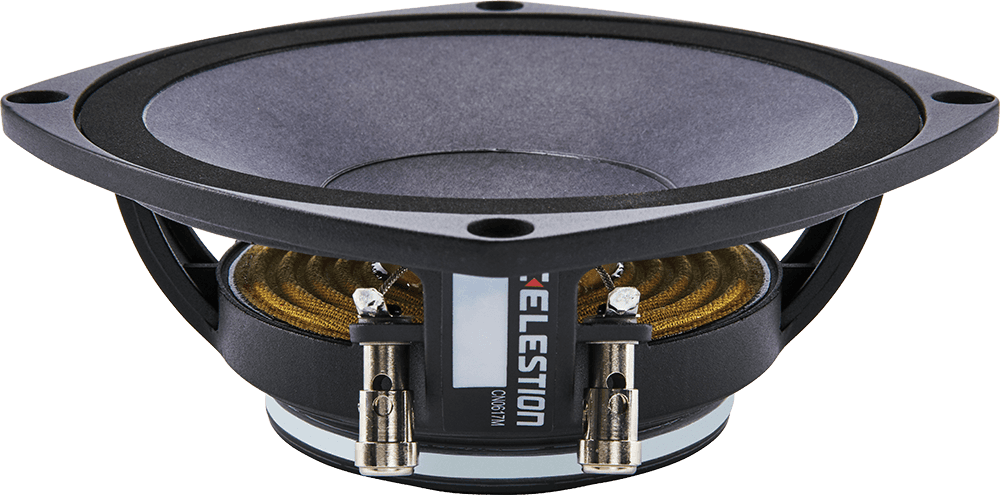

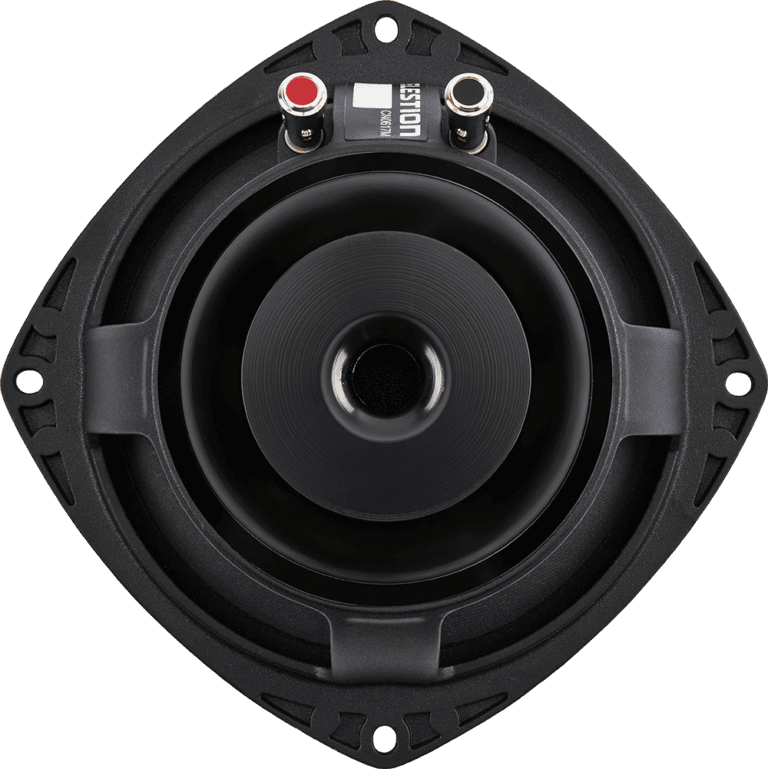

Celestion CN0617M
Celestion CN0617M is a 6.5" 16 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 198Hz, Qts 0.50, Vas 2.0L, Xmax 2.7mm, sensitivity 96.6dB, plus 42cm³ Vd and 359 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
16Ω
RMS Power
200W
Sensitivity
96.6dB
99.0dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
359
Vented alignment
Vd
42cm³

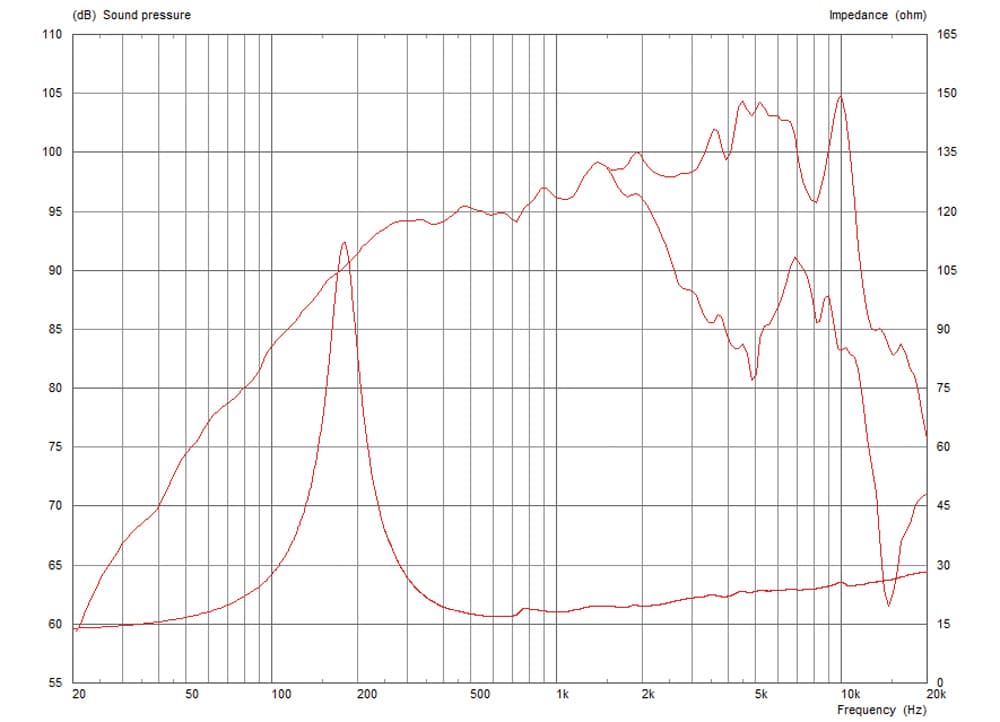

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence663 selected pixels of 667
T/S Parameters
Valid
Fs198Hz
Qts0.50
Qes0.55
Qms5.6
Vas2.0L
Re12.8Ω
BL17.6Tm
Sd154cm²
Mms11g
Xmax2.7mm
SPL97dB
Power200W
Impedance16Ω
Voice Coil44mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.1kg
Diameter189.0mm
Overall Depth68.0mm
Cutout Diameter150.0mm
Bolt Circle Diameter175.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
CN0617M
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
69%
Similarity
£96.40

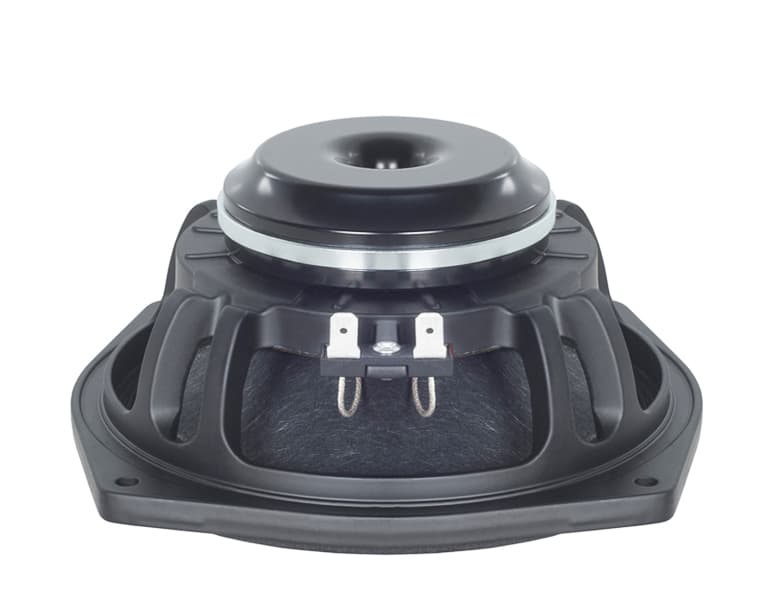

B&C
6MDN44
6.5"
Xmax3mm+11%
Qts0.47-6%
BL14.5Tm-18%
Vas2.8L+38%
Qes0.56+2%
66%
Similarity
£80.57

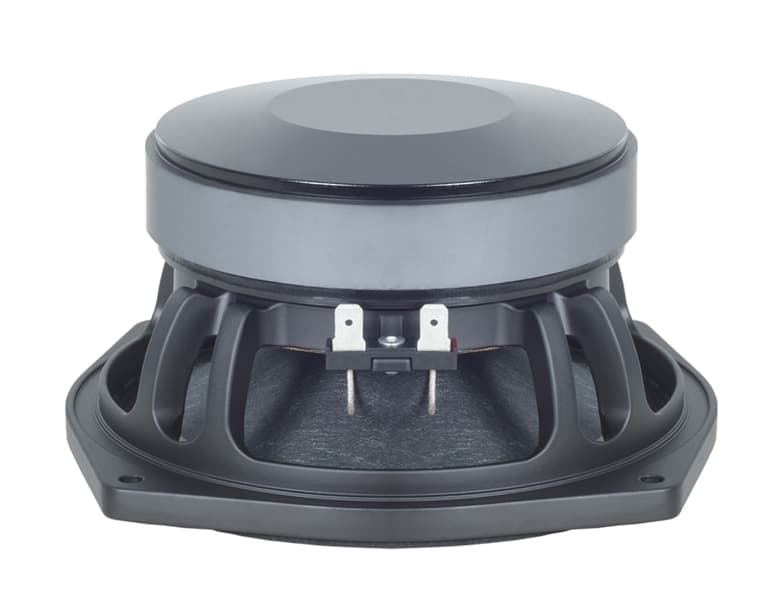

B&C
6MD38
6.5"
Xmax3.5mm+30%
Qts0.50%
BL14.5Tm-18%
Vas2.3L+13%
Qes0.61+11%
46%
Similarity
SB Audience
NERO-6MRN150D
6"
Xmax3.4mm+27%
Qts0.48-4%
BL13.1Tm-26%
Vas1.1L-46%
Qes0.58+5%
